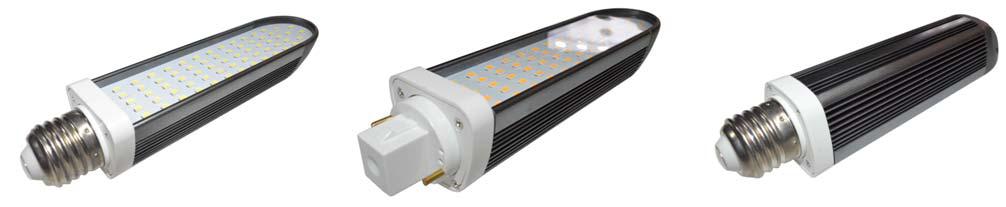

Patented Unique design E27 G23 G24 PL LED Lamp
1.4W 6W 8W 11W  13W are available.

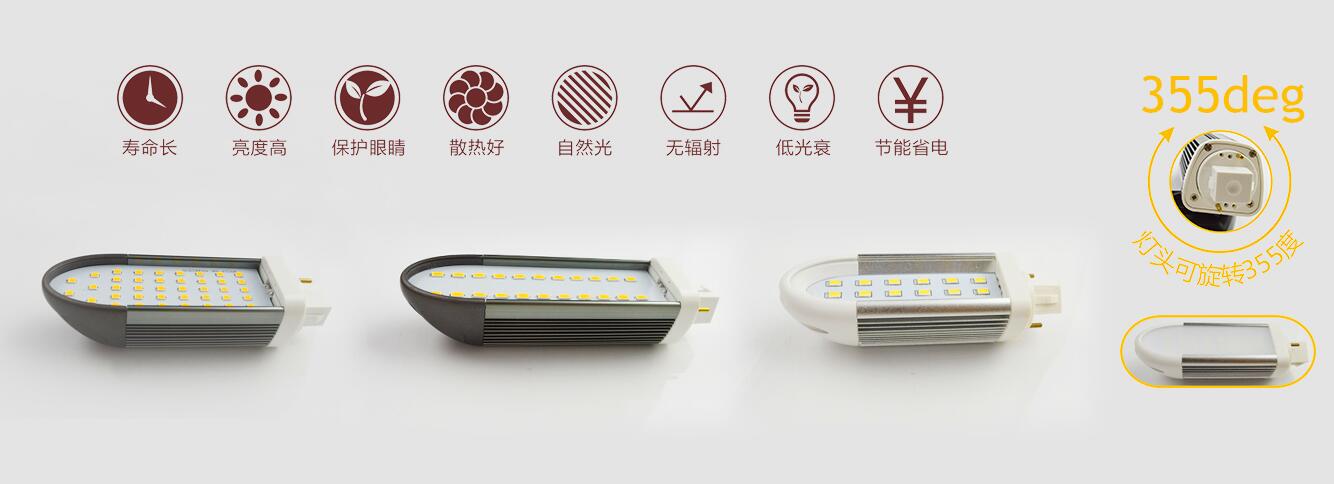

2.rotatable base design,335deg to turn round.
3.3014SMD,5730SMD,2835SMD is opition.
4.high quality,high lumen outpyut.
5.Dust-proof design,and low power consumption to replace CFL light.
6.CE RoHS approved,2years warranty.
More led pl lamp details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

G23 G24 LED PL Lamp features:
1. G24 pl led is effective lighting, excellent heat dissipation, more safer.
2. PL led lamp shade with acrylic material of antistatic processing.
3. Chip with high lumen SMD3014,SMD5730,2835SMD, more natural lighting.
4. Low power consumption,longer lifespan.
5. Comfortable visual sense, no flash, no glare, no IR radiation.
6. led pl is easy to install, environmental protection.
7. Some items can support trac dimming,5~100% dimming range.
8
. G23 G24 E27 base available, g24d(2 pins) ,g24q(4 pins),GX23 for your optional.

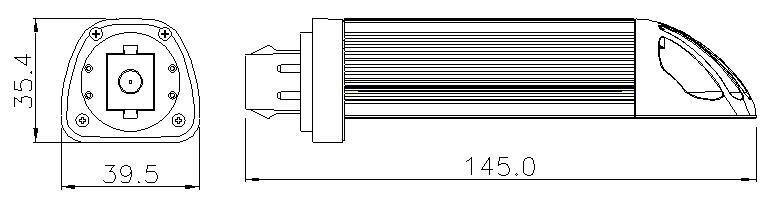

G23 LED PL lamp dimension:



G24 plc led lamp specification:

Model Number

   RL-G242835PL-11W

Dimension(mm)

        145x39.5×35(L x W x H)

Led Source

   2835SMD

Led Quantity

55pcs

Power

11W

Luminous

1050-1200lm

Color Temperature

Warm white

Natural white

Pure white

2800-3200K

4000-4500K

6000-6500K

CRI

  >72

Input Voltage

AC 85-265V  50-60 Hz

Dimmable

   Yes/No

Operating Temperature

-20°C45°C

Beam angle

150°

Lamp base

   G24d(2pin)/G24q(4pin)

Material

Extruded aluminum heat sink

Life Span

    50,000hours

Warranty

 2years

Applications

Indoor lighting/Public place lighting

Package

White box/customized

Product Weight(kg)

  0.1

Carton Size (mm)

35.5x25.5x26(L x W x H)

Qty/Ctn

  50pcs

Gross Weight(kg)

  8.5

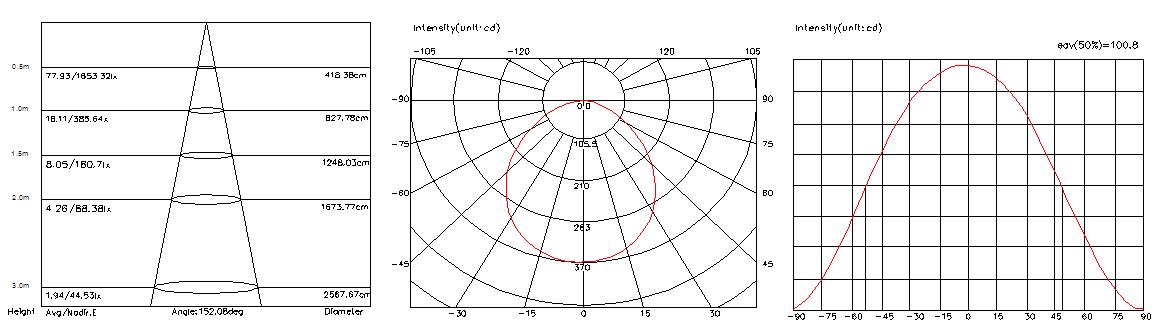

4 pin led g24 lamp light distirbution curve and light intensity:

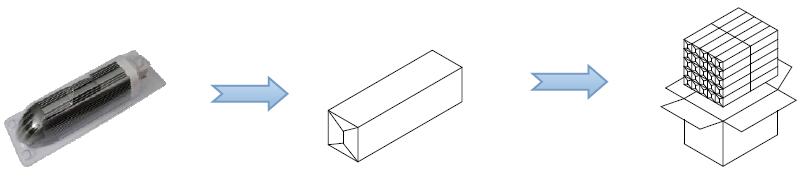

E27 pl 11w led lamp packing:

LED pl replacement lamp application:
PLC 2 Pin led g24 lamp is widely use in home, shopping mall, supermarket, hotel, school, meeting room, and other inner places to replace the cfl lamps.
