Home > HOT Product > Dimmable GU10 LED Spotlight 5W > CE RoHS Dimmable GU10 LED Spotlight 5W

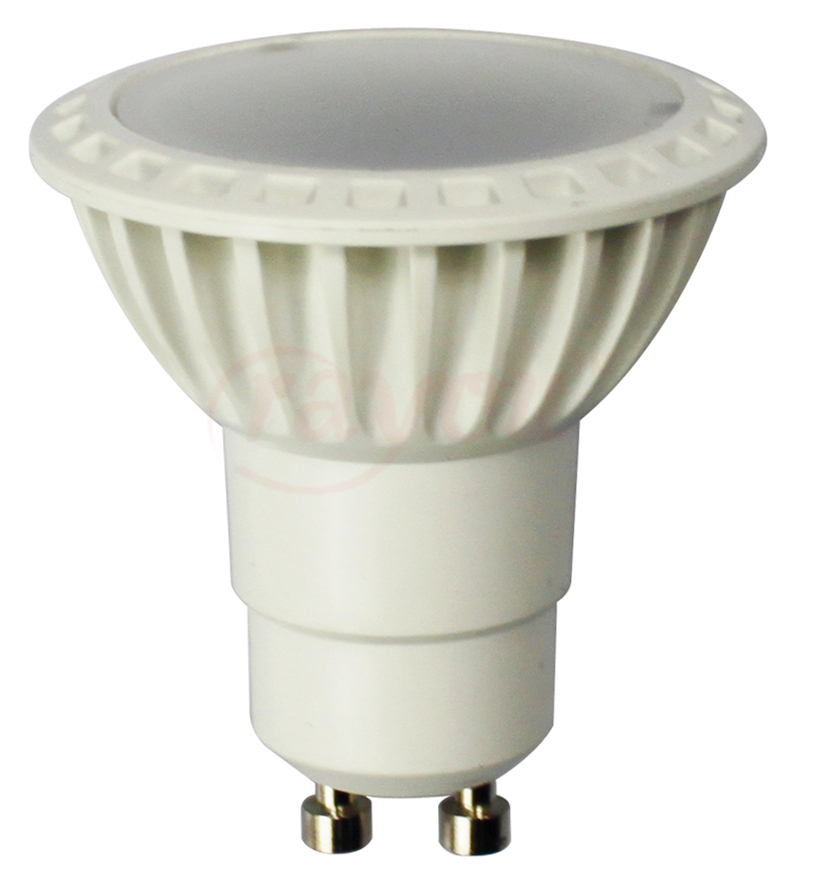

CE RoHS Dimmable GU10 LED Spotlight 5W
1.5.5W dimmable smd led spotlight
2.110 volt or 230VAC input are available
3.30deg and 120deg opition
4.silver and white finished housing available
5.CE RoHS UL Listed,3years warranty
More smd led spotlight details,pls contact me:
Skype: tyjeffery, Email:info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com


 smd led spotlight features:
1.gu10 led spotlight is energy-efficient:Save 80% energy more than incandescent lamp.
2.Environmentally friendly:No any mercury and radiation like ultraviolet radiation and infrared light,ect.
3.Quick response,no strobe,no buzzing noise,instant soft start,and low heat.
4.High shock/vibration resistant.
5.5w led spotlight has 30deg or 120deg beam angle,and silver or white finished housing to choose.
6.More than 35000 hours lifespan for 110 volt led spotlight.
dimmable gu10 led spotlight 5w specification:

230V dimmable GU10 led spotlight electrical parameter

Item Type

SMD led Spotlight

LED Light Source

Epistar

Warranty(Years)

3

Input Voltage(V)

110V/230VAC

Lamp Power(W)

5.5

Lamp Luminous Flux(lm)

330±10%

CRI (Ra>)

75

Color Temperature(CCT)

2700~3000K;4000~4500K;5500~6500K

Working Temperature(C)

-25 - 65

Working Lifetime(Hour)

35000

Lamp Body Material

Die-catsing aluminum+PMMA

Certification

CE RoHS UL

Base Type

GU10

Place of Origin

Shenzhen, China (Mainland)

Brand Name

Rayou

Model Number

RL-DIMGU10AD-5.5W/ RL-DIMGU10PAD-5.5W

Frequency

50/60Hz

Color

Silver/White

Driver Efficicency

>0.85

PF

>0.5

Beam Angle

30/120deg

Size

50*55

ODM,OEM

Available, MOQ 3000pcs

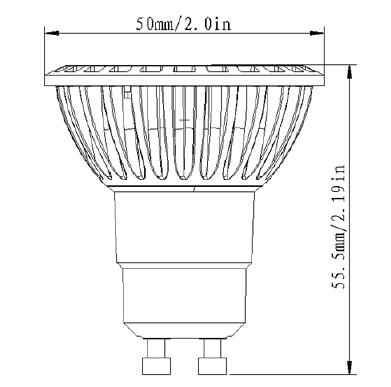

5w led spotlight dimension drawing:

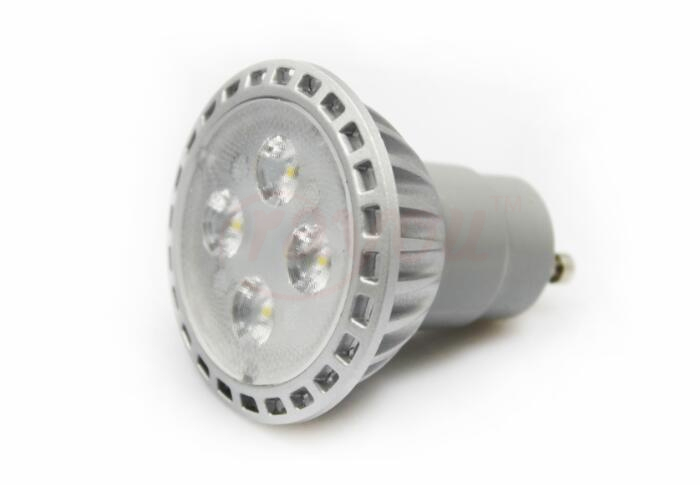

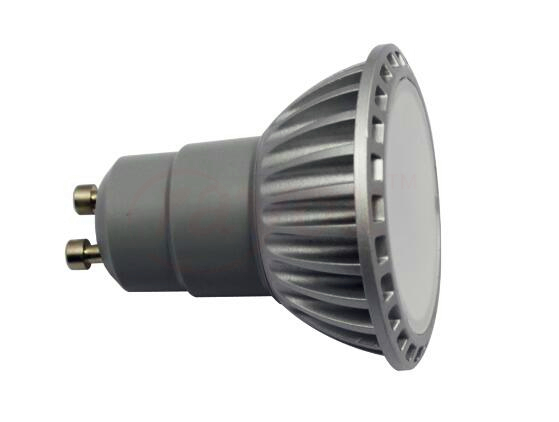

small led spot light more photos:

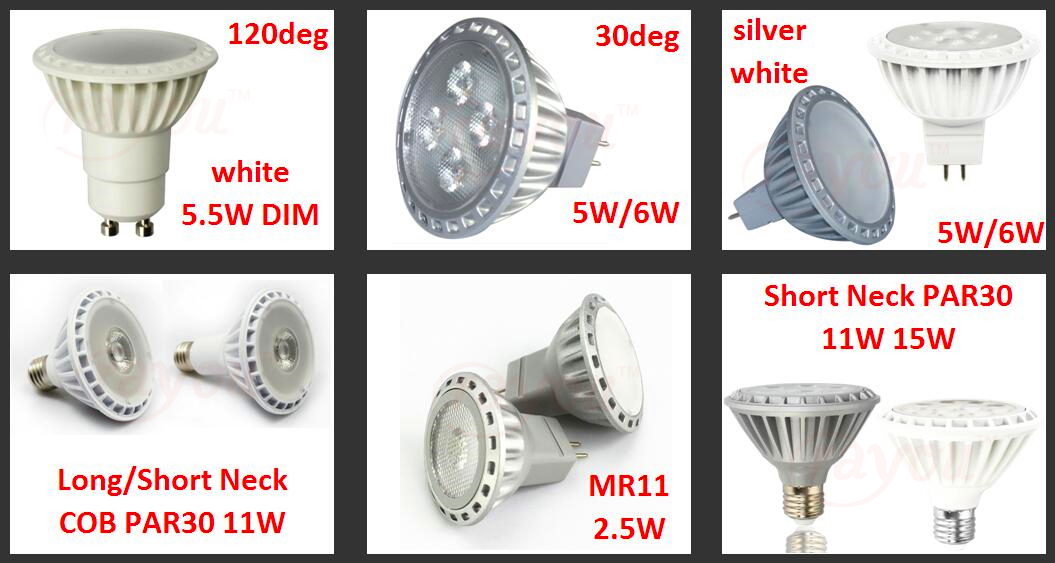

More die-casting aluminum led spotlight,led par light to choose:

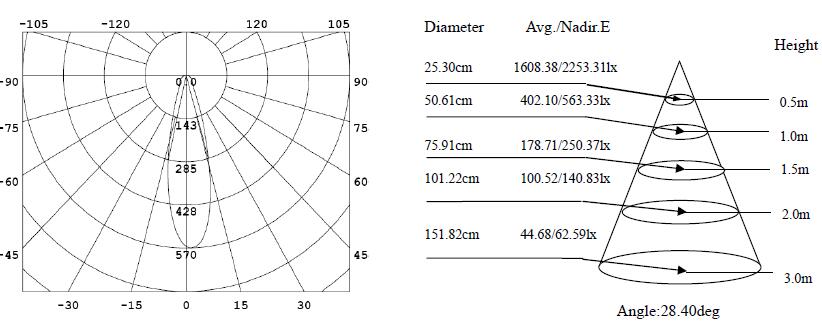

110 volt led spotlight distribution curve:

dimmable led spot light packing:

Product Packaging

Specifications

Unit

Product Dimension

Φ50*H55.5

mm

Net Weigh

0.065

Kg

Size of box

L52*W52*H60

mm

Gross Weight

0.072

Kg

Size of inner box

L285*W235*H80

mm

Qty/ box

20

PCS

Gross Weight

1.585

Kg

Size of Carton

L635*W375*H495

mm

Qty/ Carton

18

PCS

Weight/ Carton

29.71

Kg

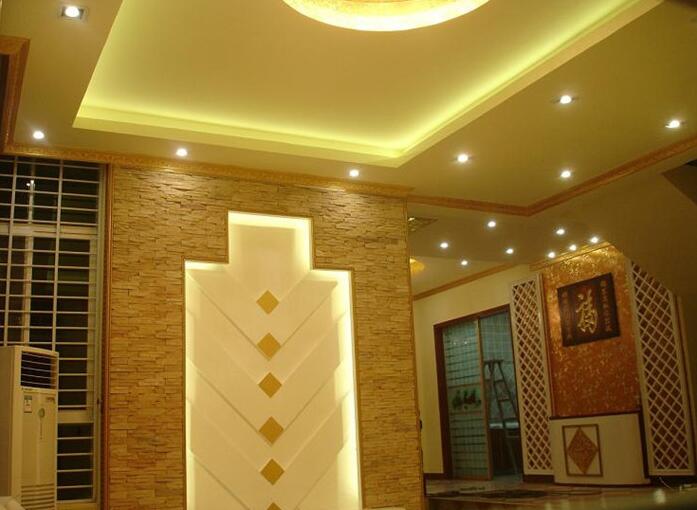

ce rohs gu10 led spotlight aplication:
cheap price led spotlight is widely used in home, office, shopping mall, retail store, mesuem, supermarket, clothing store
and so on.
