LED Track Light 10/20/30/35/40W COB Track Lights
1.Die-casting aluminum heat sink
2.Triac,DALI,0-10V dimmable available
3.Original CREE COB chip optional
4.15/24/36deg beam angle
5.85~265VAC,PF>0.9,3~5years warranty
6.Powergear adpator and TE LED holder optional
7.2wires/3wires/4wires to choose
More COB track spotlight details,pls contact:
Skype: tyjeffery,Whatsapp:+8615817420912 Email: info@rayoulighting.com
Website: www.facebook.com/rayoulighting www.facebook.com/rayoulight
2020 Track Light LED 30W COB Rail Spot Lamp features:
1>What's cob track light?
COB LED technology uses a process by which multiple LED chips are packaged into a single LED module, thus making it less glaring to look at and the light emitted is more evenly distributed over a wider area.
2>How do you install led track lighting?
Pls ask us by email to get more details,email to info@rayoulighting.com.
3>How do i fix my led track light?
Pls ask us by email to get more details,email to info@rayoulighting.com.
10W 15W 20W 30W COB LED track light led rail Spot Light
1.COB track spotlight with 100lm/w,110lm/w 120lmw are available
2.Track Lighting Fixtures with high CRI95 is available
3.20w Cob Led Track Spot Light Ar111 Track Light Head
4.2/3/4wires Adjustable Magnetic Spot COB LED Track Light 20W 30W 40W
5.Beam angle adjustable and CCT changeable COB LED track light optional
LED track lights specification:
|
PRODUCT INFO |
|
|
MODEL NAME |
PM/NV/PK2/PK/PH/PKZ/YL/201/202/202A series |
|
LIGHT SOURCE |
COB Chip(EPISTAR,CREE,LUMINUS,CITIZEN) |
|
HOUSING |
Die-casting Aluminum ADC12 |
|
FINISH COLOR |
Black, White |
|
IP RATING |
IP45 |
|
OPERATING TEMP |
-25℃~50℃ |
|
APPLICATION |
commercial,shopping mall,supermarket lighting etc. |
|
TECHNICAL SPECIFICATIONS |
|
|
INPUT VOLTAGE |
100~277VAC;85~265VAC(50/60Hz) |
|
DIMMABLE |
TRIAC dimmable/2.4G Wireless Remote Dimming |
|
POWER |
20W 25W 30W 35W 4 |
|
PF |
>0.95 |
|
BASE |
2wires/3wires/4wires track wedge |
|
BEAM ANGLE |
12/24/36° |
|
LUMINOUS EFFICIENCY |
100lm/w (110lm/w 120lm/w available) |
|
CCT |
2700K,3000K,4000K,5000K,5700K,6500K |
|
CRI |
>82(CRI95 available) |
|
CE EMC LVD |
YES |
|
G.W |
0.85kg/14.8kg(full carton) |
|
PACKING |
20pcs/CTN 47*34*32cm |
|
WARRANTY |
3Years |
Track Lighting Fixtures family ordering information:
201 series: TR201-12W/TR201-20W/TR201-35W
202 series: TR202-20W/TR202-30W/TR202-35W
202A series TR202A-20W/TR202A-30W/TR202A-35W
PM series: TRPM-30W/TRPM-35W
NV series: TRNV-10W/TRNV-20W/TRNV-30W
PK2 series: TRPK2-10W/TRPK2-20W/TRPK2-30W
PK series: TRPK-10W/TRPK-20W/TRPK-30W/TRPK-35W
PH series: TRPH-10W/TRPH-20W/TRPH-30W/TRPH-35W
PKZ series: TRPKZ-20W/TRPKZ-30W
YL series: TRYL-35W/TRYL-40W
CCT&Beam Angle changeable series:
CCTAGNV-10W/CCTAGNV-20W/CCTAGNV-30W
CCTAGKD-10W/CCTAGKD-20W/CCTAGKD-25W/CCTAGKD-30W

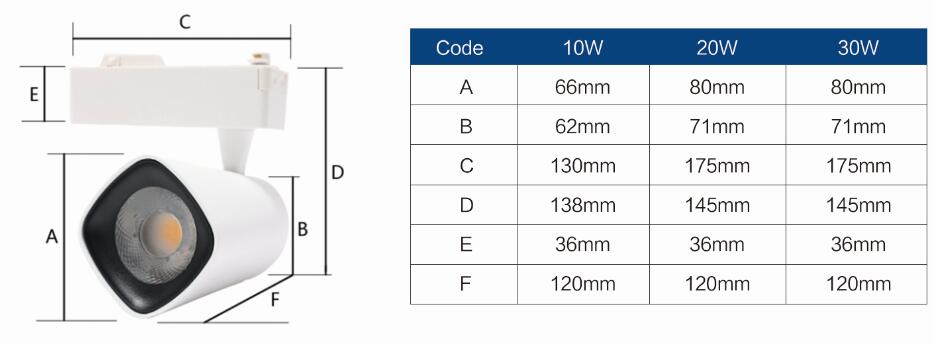

cob led track lightsdimension:

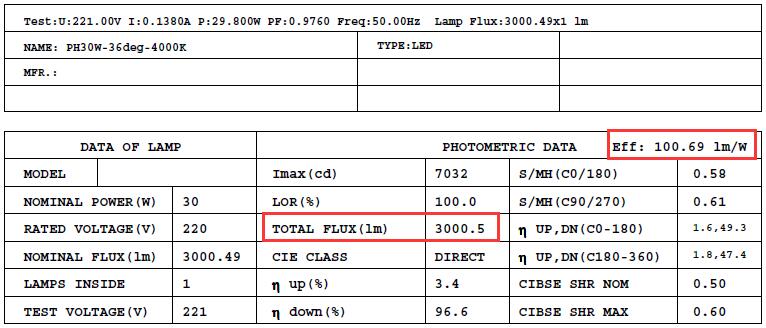

Track Spot Integral fixtures IES testing report(30W@4000K 36deg):

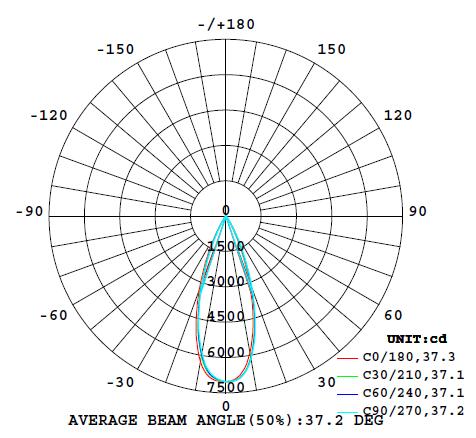

ceiling track spotlight luminance intensity distribution:

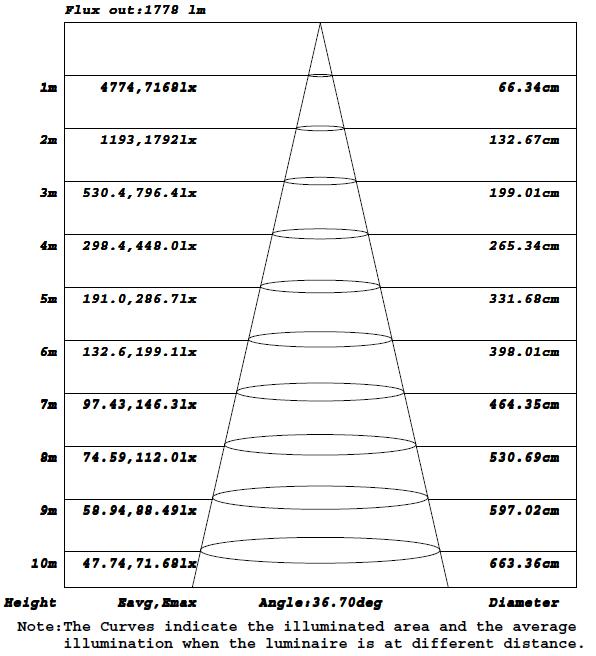

30W High Power Track Light COB LED cone lux diagram:

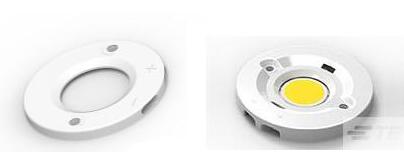

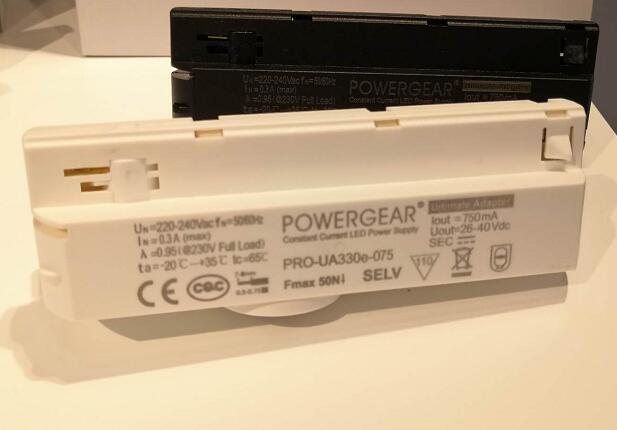

cob led track lights with PowerGear adaptor and TE chip holder available:
Spot COB LED Track Light 10W 20W 30W 40W application:
A) High CRI90 cob led track light for Shopping mall commercial lighting.
B) COB LED track lighting for Cloths store, jewelry store lighting .
C) Tunable dim to warm white cob led track light used for focus lighting area.
D)10W COB LED track light single/three adaptor.
