ETL DLC LED Tri-proof Light IP65,LED Vapor Tight Light

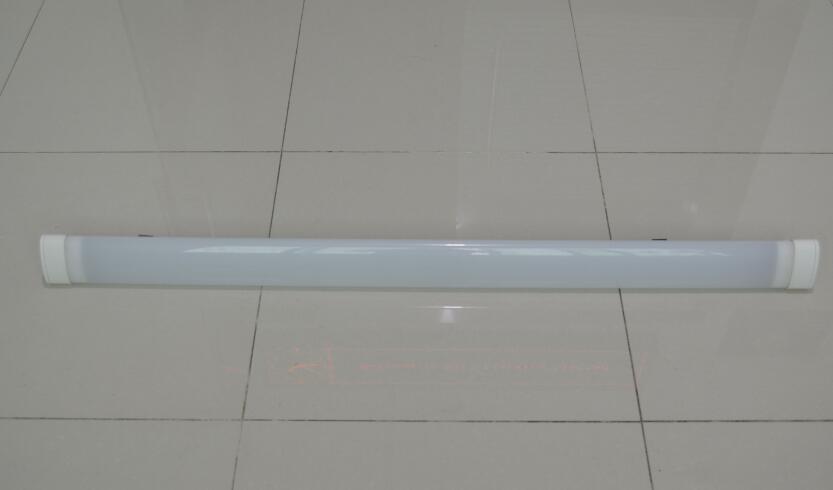

1>4ft 1200mm length tri-proof led light
2>18w 36w 40w 54w DLC tri-proof fixture
3>ETL DLC listed 125~130lm/w ip65 waterproof lighting fixture led
4>100~277VAC UL driver,5years warranty
5> Special for US Canada market application
More ip65 tri-proof led light details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

ETL DLC LED Tri-proof Light IP65,LED Vapor Tight Light,PC cover DLC 4ft led vaportight 40w 54w,led tri-proof light IP65,tri-proof light fixture for parking garage lighting

4ft 40w 54w ip65 tri-proof led light tube electrical parameter:

LED Tri-proof Light IP65 RL-TF42-40W   RL-TF42-54W
Power 40W  54W
Lumens >5200lm          >7020lm
Length          1270mm
Width           165mm
Height          105mm
lumens efficiency  125-130lm/w
Input Voltage 100-277VAC, 50/60 Hz (200-480VAC optional)
Housing material Polyester
Cover Milky frost or clear
LED Chip  SMD2835 Bridgelux
LED driver UL driver
Operating humidity 20%-85% RH, non-condensing
Storage temp. -22-140°F (-30–60°C)
Ingress protection Suitable for wet locations
Equivalent wattage 2-3×32W Fluorescent
Power factor 0.90 min.
Total harmonic distortion 20% max.
Warranty: 5 years
L70 life 50,000 hrs
Luminous flux 5200 Lm/7020Lm
Lens  Polycarbonate
Certificates UL, DLC,CE, RoHS

Features:
1>Durable body, one piece, non-corrosive white glass reinforced polyester body protects the LED light source from water and dirt from vehicular traffic and natural elements.

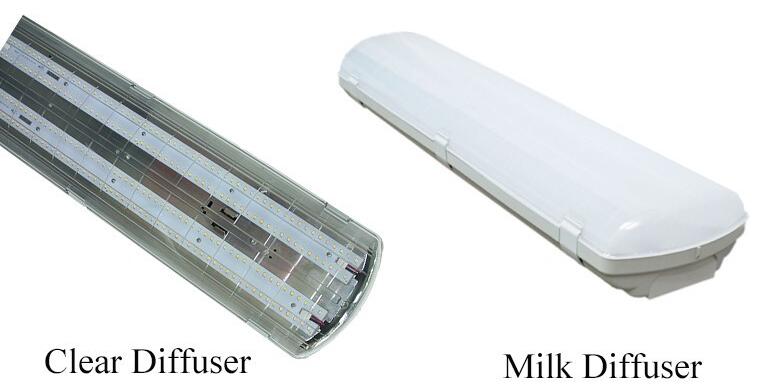

2>Milky white or clear polycarbonate lens with inside ribbing

3>Delivers 7~10 footcandles from eight foot installed heights to comply with parking drive lane safety and building codes.

4>IP65 rated fixtures with hermetic sealing.

5>Two option installation way: surface mount &suspended mount.

6>Integral high performance LED driver, universal input voltage 100~277VAC (200~480VAC optional), 50/60Hz.

7>LED chips with high ranked binning to ensure color uniformity and produce accurate color rendering,

3000K~5500K.

8>0~10V dimmable, emergency pack kits are available for special request order.

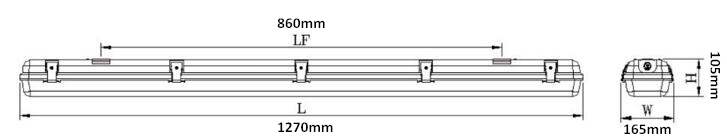

4ft led tube light fixture ip65 dimension:

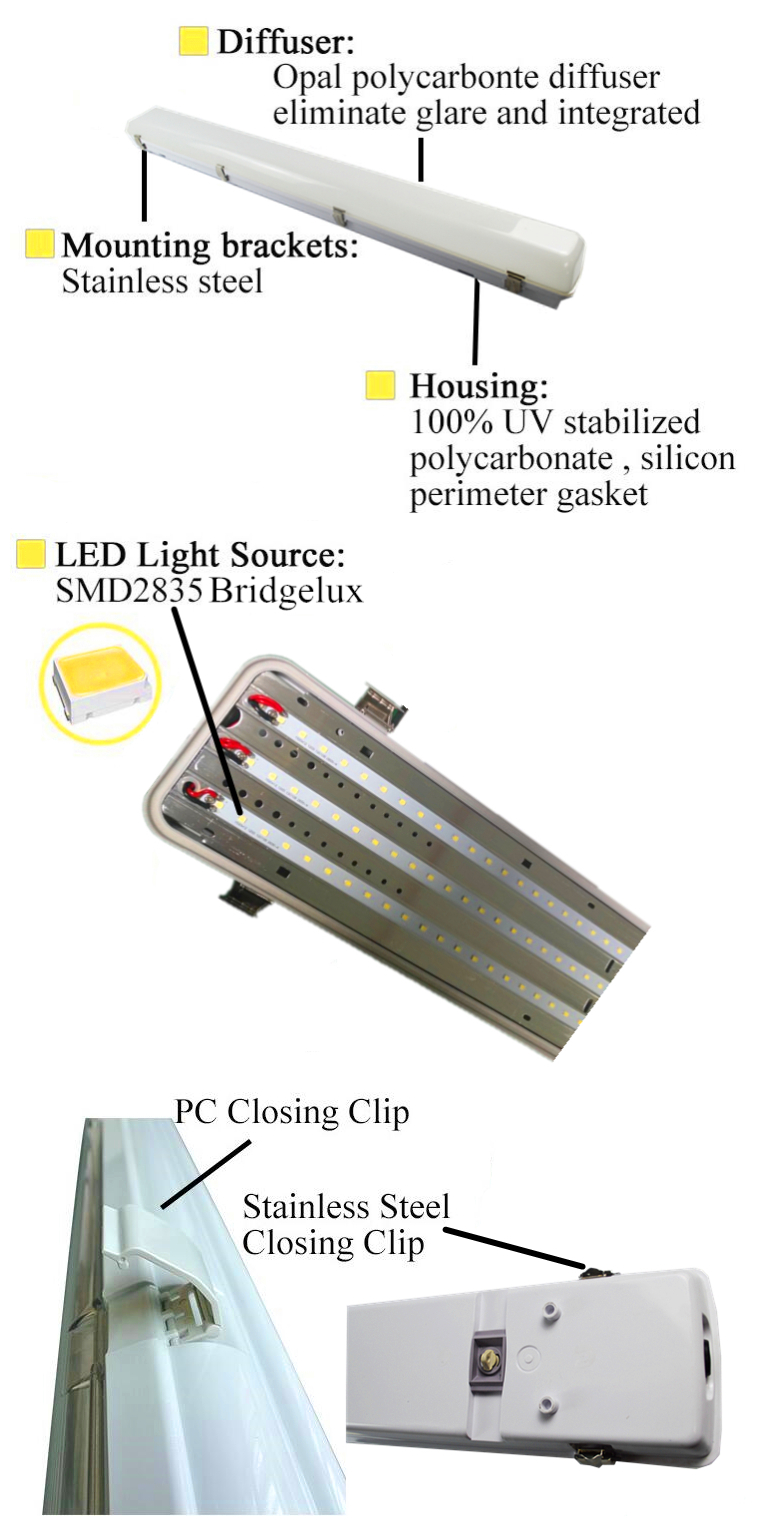

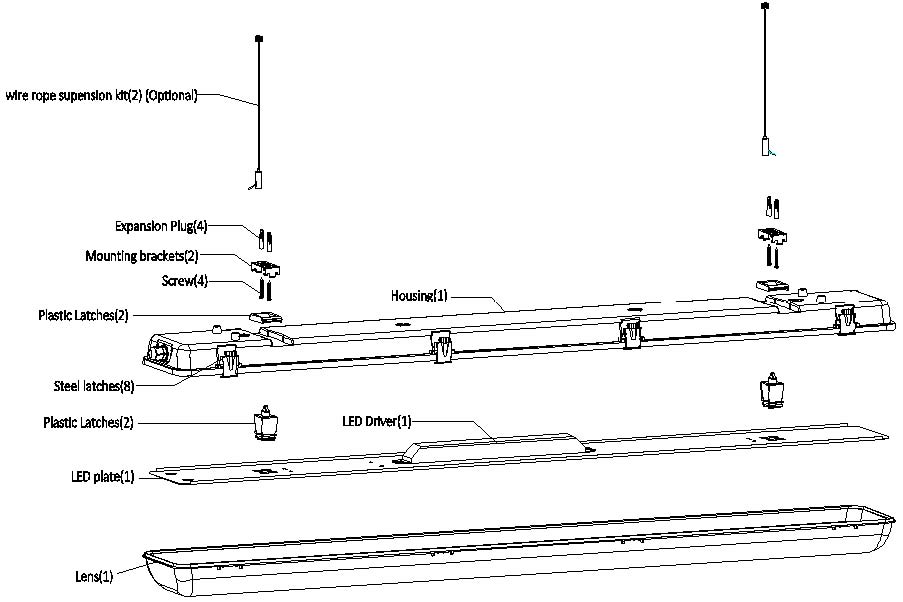

tri-proof light fixture instructure design:

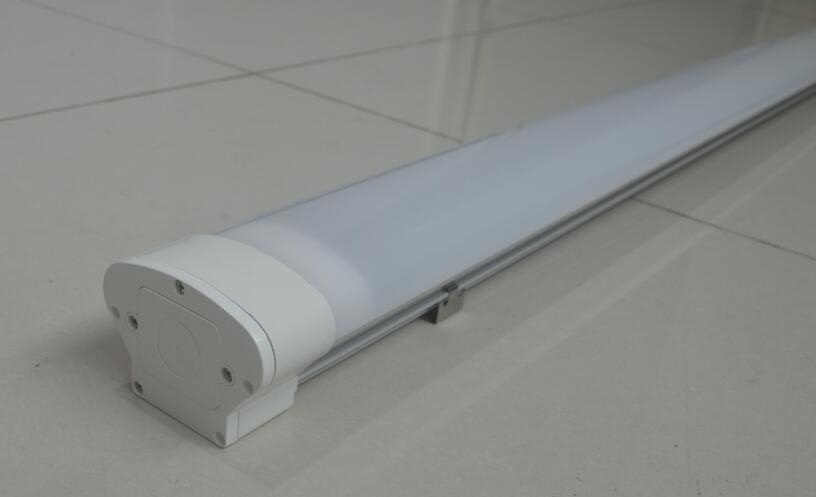

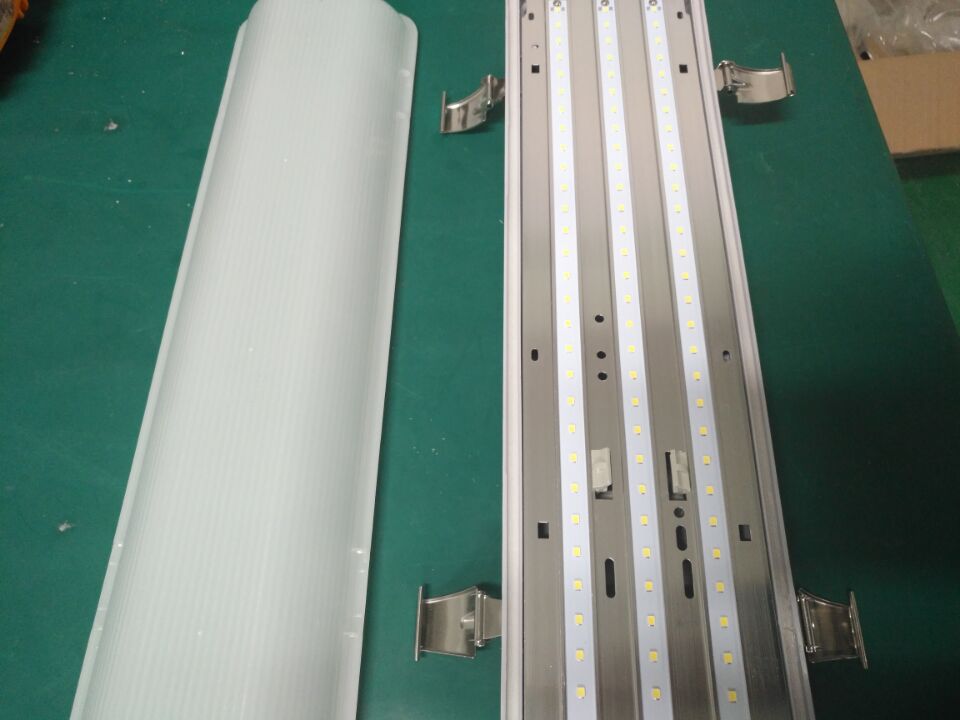

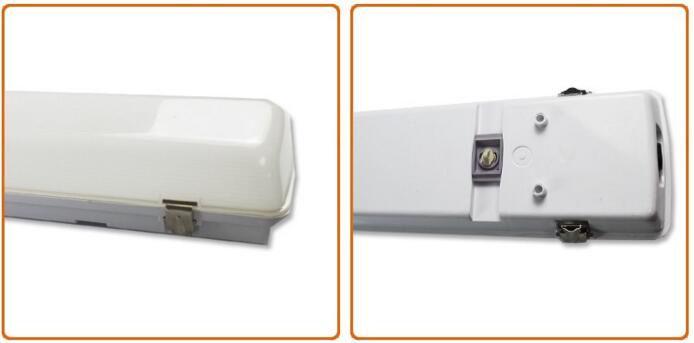

DLC ip65 light fittings 36w 40w 54w details view:

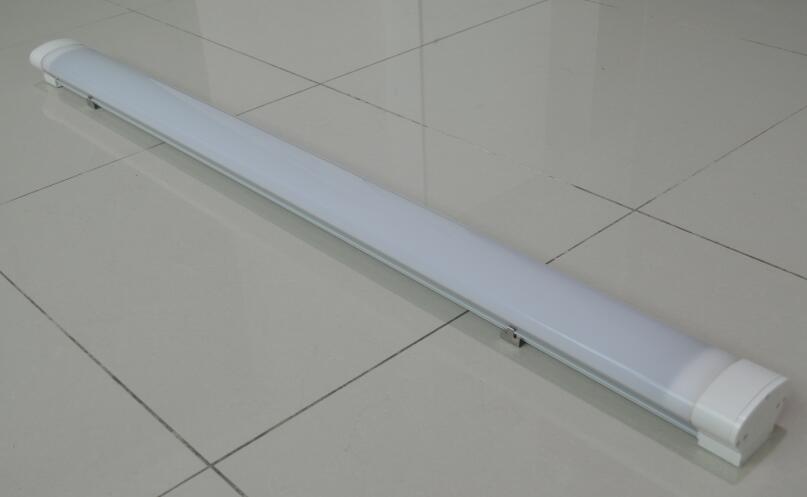

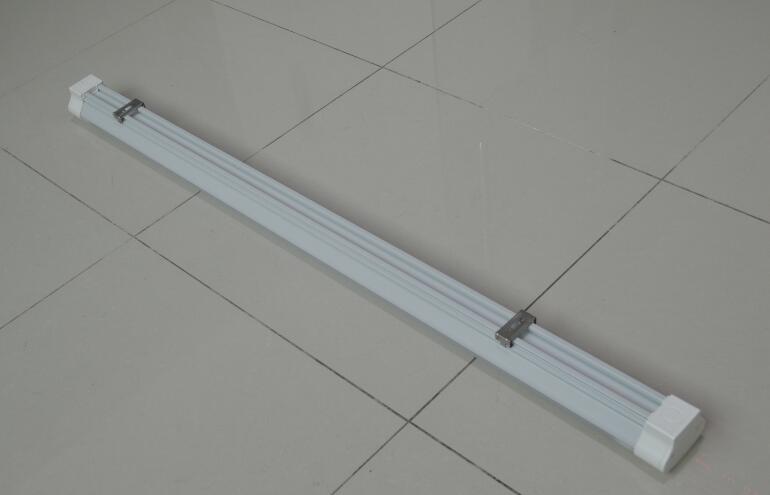

DLC 4ft ip65 tri-proof led light 18W 36W,batten tri-proof led ip65,more popular in canada market available:

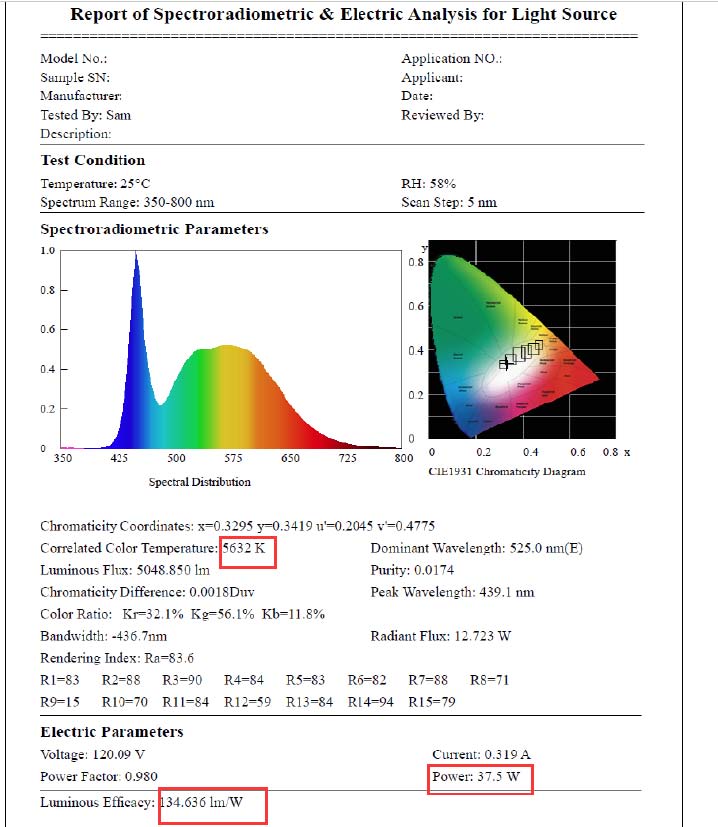

Spectroradiometric parameters of ip65 tri-proof light 40w:

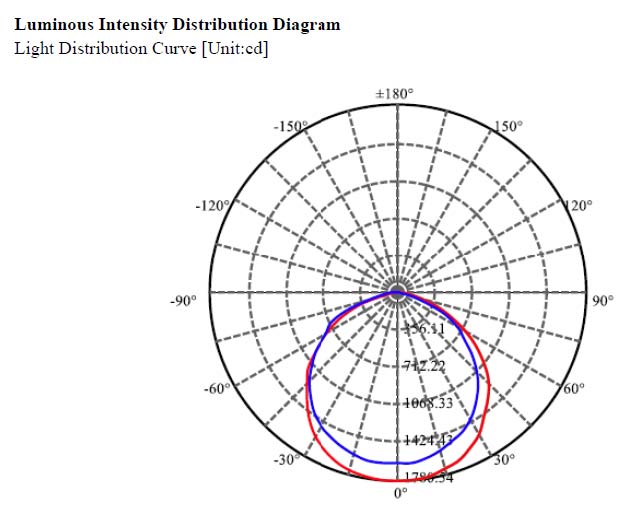

ip65 T8 led tube light fittings luminous intensity distribution diagram:

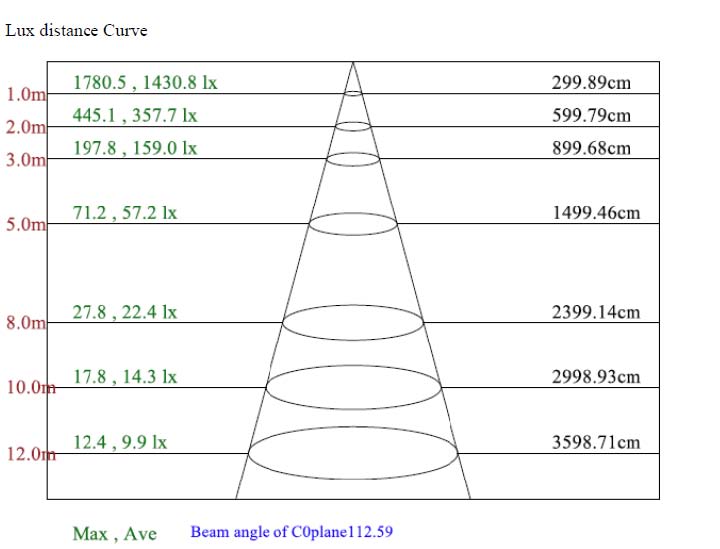

non corrosive light fittings 40w lux distance diagram:

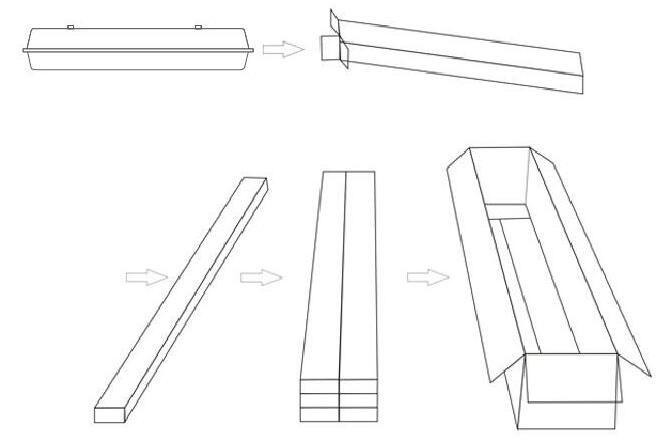

tri proof led light fixtures IP65 packing and shipping:

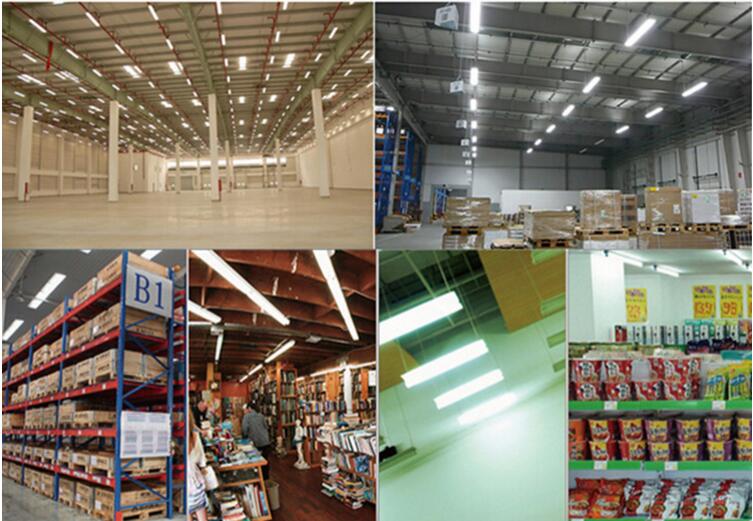

ip65 rated fluorescent lights led replace light application:

led tri-proof light ip65 used for canopies ,farmyards, parking garages,cold storage facilities,dust&wet location environments.

RFQ:

1. Are you factory supplier?

    Yes, we have our own factory, so we could offer led tri-proof light ip65 with competitive prices!

2. What special service can you offer?

     We can offer you the OEM and ODM service with favorable prices, and mark your brand and logo on the package!

3. How long will it take for my order to be shipped?

    Usually, for sample order, it takes 5-7 days, and for big quntity order, usually take 10-15 days!

4. What's your after sale service?

    We offer 5 years warranty for tri-proof light fixture, during the warranty, if the lamps fail to work, proved not cause by human
being, we would offer you the free lamp parts or new lamps!

More ip65 waterproof lighting fixture led details you need, pls contact me:  Skype: tyjeffery

Website:  www.rayoulighting.en.alibaba.com
