ETL 120lm/w E27 E40 IP54 LED Corn Lamps
Original LM80 2835SMD,120lm/w high lumen,360 degree

15W/20W/25W/30W/40W/60W/80W/100W/120W are available

CE RoHS ETL IES certificated,3years warranty

New design,good heat dissipation,replace CFL,HPS, MHL

Aluminum Alloy heat sink,PC Cover,ABS lamp holder
More 120w led corn lamp details,pls contact me:
Skype: tyjeffery, Email:info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

E40 corn led features:

Using high brightness of original packed Epistar 2835 SMD chip which achieves 120lm/w

As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360°).

Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

No spot, no black area, long life span and less brightness decay

Various lamp bases are available , a wide range of applications.(E39/E40 mogul)

Wide voltage AC100-2770V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

No magnetic disturbance influence and CE & RoHS standard compliant.

No UV and near-IR radiation in the light beam.

36 months warranty.

We have provided many specification LED Corn Bulb choices, They are include, E26/E27/E39/E40 corn led, E14/E27/E26/G24 street led Corn Light , Horizontal Plug Corn Light, etc.

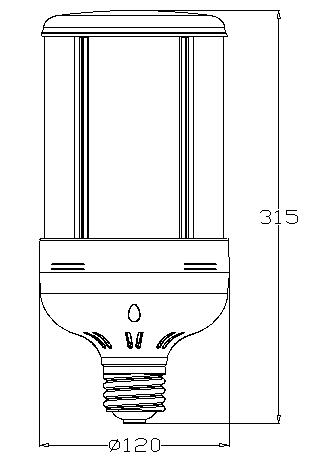

80 watt led corn light dimension drawing:

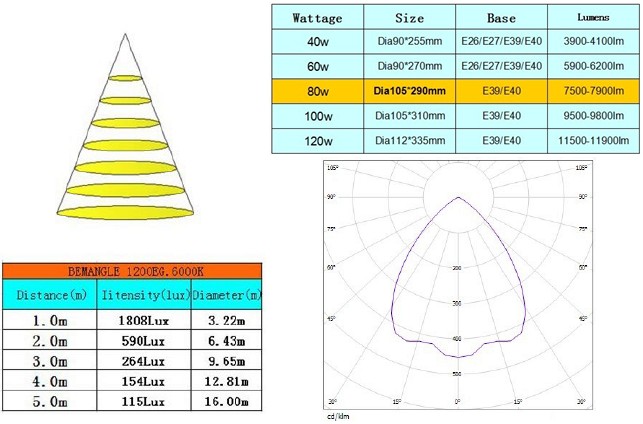

ETL led corn lamp more details
:

40w led corn bulb specification
:

PRODUCT    SPECIFICATIONS
Product name LED Corn Light
Part No RL-E40CL28-40W
Light Type Corn Light
Dimension Φ70*209mm (E27)、Φ70*220mm (E40)
Technical    Characteristic
Color Warm white Natural white Pure white
Color temperature 2700-3000K 4000-4250K 6000-6500K
CRI >80 >80 >80
Lumen 3920.0 4200.0 4400.0
Lumen Efficacy 98 105 110
Input Power 40 W
Viewing Angle 360 degree
Input Voltage AC85-265V or AC85-300V    50/60Hz
PFC >90%
Equivalent 180W incandescent / 80W CFL
Waterproof Rating IP40
MATERIALS
LED Brand EPISTAR
LED Type SMD2835
LED QTY 200 PCS
Housing PC
Housing color White
OTHERS
Operating Temperature  -20℃  TO  45℃
Operating Humidity 20%-70%  RH
Storage Temperature  -30℃  TO  80℃
Storage Humidity 10%-75%  RH
Application Indoor
Enviroment Protection RoHS
Safety Certification CE
Warranty Time 3  Years


E27 corn led spectroradiometric parameters:

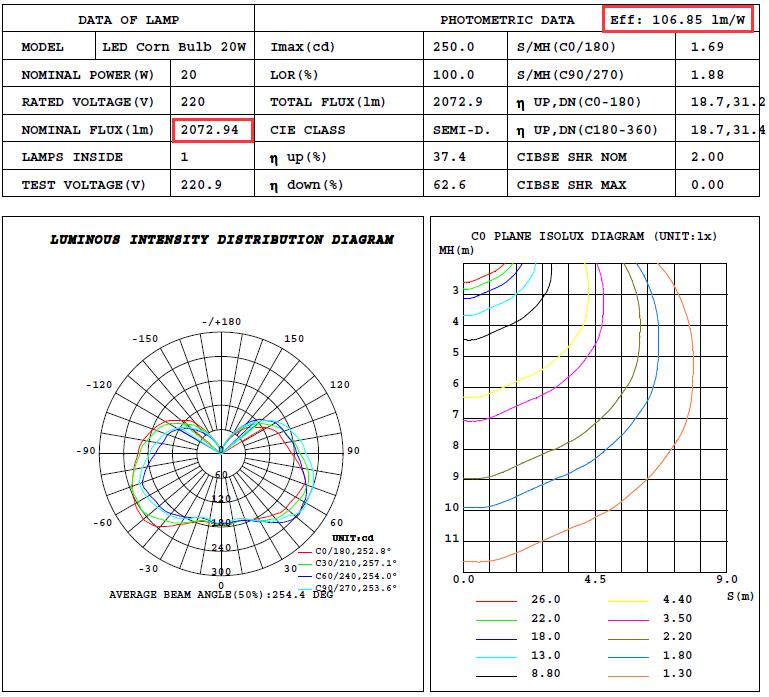

LED corn bulb
photometric testing report:

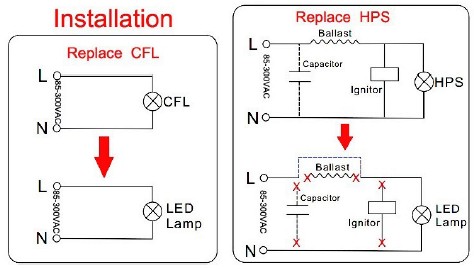

Dimmable led corn light Installation Instruction:

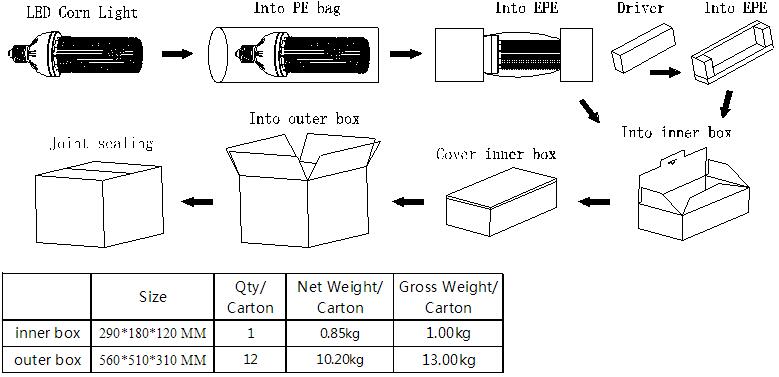

100w led corn light package:

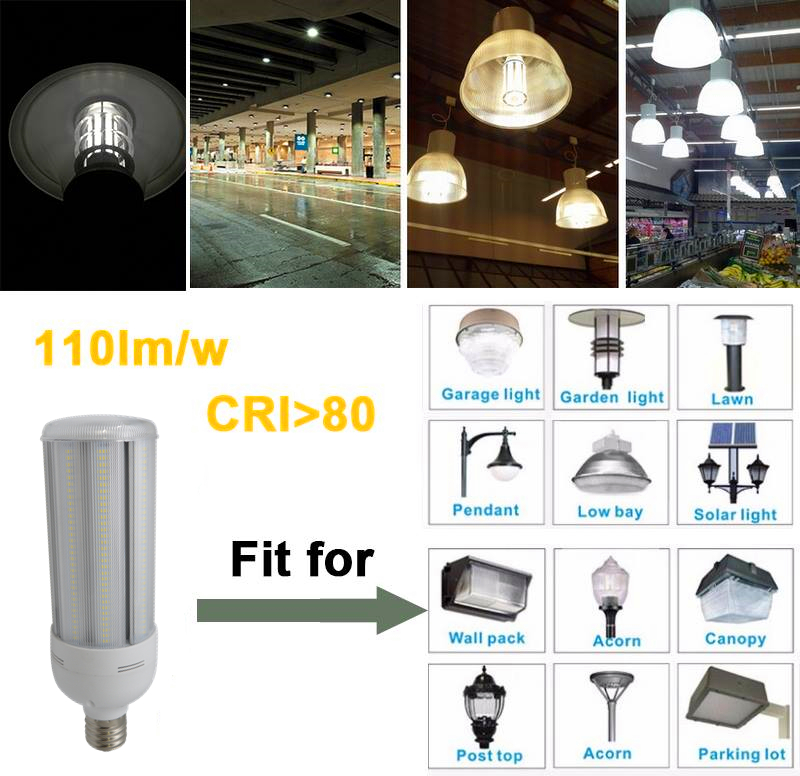

120w led corn lamp application:
E40 LED Bulb retrofit LED Corn Light Widely used in store, warehouse, parking lot, gas station, metro station, supermarket, home, office ,workshop, street, garden. etc. where installed E40,E39,E27,E26 traditional metal halogen or high pressure sodium bulbs would be available for replacement by our E40 Retrofit LED Bulb Corn LED Light bulb.
