Home > HOT Product > UL DLC LED Retrofit Kits > DLC LED Retrofit Kits 40W 60W 80W 100W 120W 150W 185W 240W 320W 400W

DLC Listed LED Retrofit Kits 40W 60W 80W 100W 120W 150W 185W 240W 320W 400W
1.5years warranty, with MEANWELL HLG driver
2.LM79,LM80,IES available,150W 185W 240W 320W 400W are available.
3.CREE XTE or LG3030SMD,UL,cUL,DLC approved,
5.Replace Metal Halide or HPS bulbs in closed fixture,Mogul Base Cobra Head Roadway Bulbs.
6.Retrofit for Street light fixture, high bay fixture, shoebox fixture, wall pack fixture, canopy fixture.

More DLC retrofit led details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com

Features:
Various options: 100-277V, 347-480V etc
Higher lumen compared to similar models of others
Top quality with warranty of 5 years warranty
LM79, LM80 testing reports available
UL,DLC listed.
All models are simply installed by E26//E27E39/E40 mounting brackets
Best Cree XTE LED’s or LG3030SMD
Best Mean Well driver. very easy for repair/replacement
A built in Sunon fan helps keep them cool for increased longevity.
Optic lenses are available for applications needing smaller beam angles, 45 or 120deg.
Electrical Parameters:

Item No.

RL-RKUA-40W

RL-RKUA-60W

RL-RKUA-80W

RL-RKUA-100W

RL-RKUA-120W

Power

40W

60W

80W

100W

120W

Input voltage

100-277V/
347-480V

100-277V/
347-480V

100-277V/
347-480V

100-277V/
347-480V

100-277V/
347-480V

Light source

CREE XTE

CREE XTE

CREE XTE

CREE XTE

CREE XTE

Led Qty

14pcs 1-5W

28pcs 1-5W

42pcs 1-5W

56pcs 1-5W

56pcs 1-5W

Lumens

3400-4000LM

5100-6000LM

6800-8000LM

8500-10000LM

11000-12000LM

Luminous efficiency

100lm/w

100lm/w

100lm/w

100lm/w

100lm/w

CRI

>80Ra

>80Ra

>80Ra

>80Ra

>80Ra

Beam angle

120degree

120degree

120degree

120degree

120degree

Lens Degrees(°)

45

45

45

45

45

CCT

3000K /4100K /
5000K/6000K

3000K /4100K /
5000K/6000K

3000K /4100K /
5000K/6000K

3000K /4100K /
5000K/6000K

3000K /4100K /
5000K/6000K

Fan equipped

Sunon

Sunon

Sunon

Sunon

Sunon

Power factor

>0.9

>0.9

>0.9

>0.9

>0.9

Driver

MEANWELL

MEANWELL

MEANWELL

MEANWELL

MEANWELL

IP rating

IP65

IP65

IP65

IP65

IP65

Warranty(years)

5

5

5

5

5

Certificate

CE,RoHS,UL,DLC Listed

Testing

LM79/LM80/IES

150W 185W 240W 320W 400W are available,too! get details by email info@rayoulighting.com,thanks!

More Photos:

Why choose our LED retrofit kits:
1, LED RetroFit Kits can replace existing Metal Halide or HPS bulbs, the old housings will be re-used.
2, Our Retrofit kit comes in the following configurations:
40W......3600 lumens, which replaces 150W-175W MH or HPS
60W......5800 lumens, which replaces 200W-250W MH or HPS
80W......7900 lumens, which replaces 300W-350W MH or HPS
100W....9500 lumens, which replaces 400W MH or HPS (used in Wall packs and Canopies)
120W...11,400 lumens, which replaces 400W MH or HPS, used in all situations
240W...22800 lumens, which replaces 800w-1000W MH or HPS, used in all situations.
Replacement:

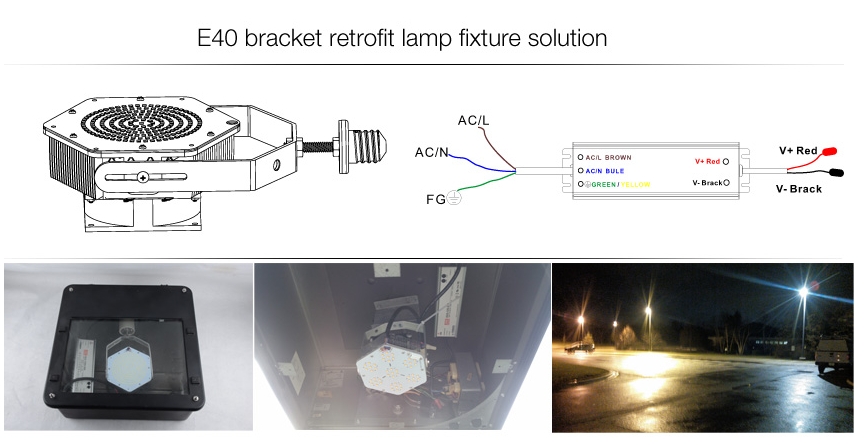

How to use and install:
1.Remove the existing ballast and bulb.
2.Remove the existing reflector.
3.Screw in the LED Retrofit kit into the existing socket. We have E26/E27/E39/ E40 sockets.
4.Wire the driver to the LED Head. The socket is only used to hold the retrofit kit. It remains un-powered.
5.Close the fixture.
Package:

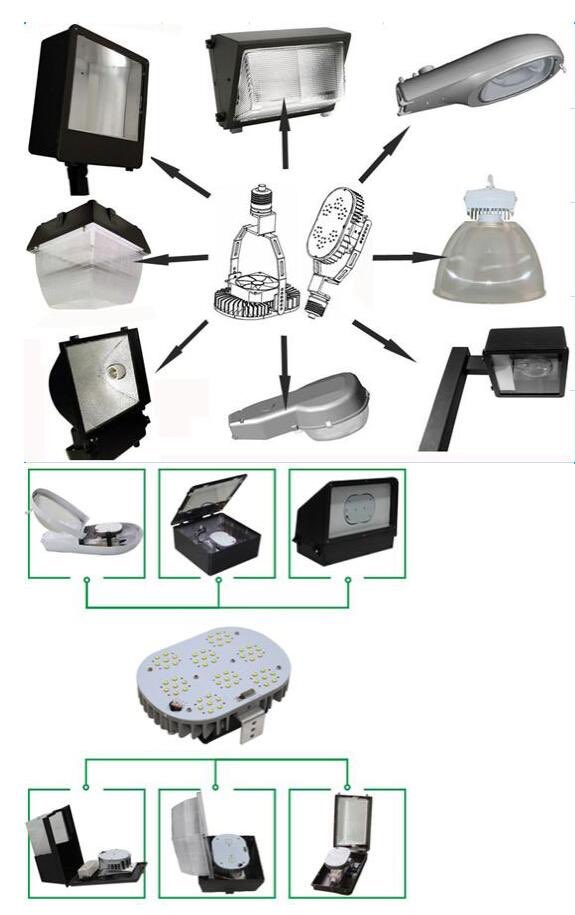

Application:
LED retrofit kits is maily used to replace MH or MPS lamp,such as Street light fixtures, high bay fixtures, shoebox fixtures, wall pack fixtures, canopy fixtures etc.
