DLC 2x2 2X4 LED Recessed Troffer Light,LED Parabolic Troffer
1>125~130lm/w DLC V4.0 preminum standard slim troffer led
2>2x2ft 2x4 ft size available,0-10V dimmable,motion sensor,emergency kits optional
3>AC100~277V input,PF>0.95,THD<15%,CRI>80
4>Slim design,the thickness is only 1.77''
5>5Years Warranty
More recessed troffer lights details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com
Features:
The RL-TRS22/24 Slim LED troffer fixture is a design based on the idea of green energy . It saves about 50% energy compared with the fluorescent troffer.The RL-TRS22/24 accepts 100~277VAC, and have a high lumen efficiency up to 125~130Lm/W. With well distributed and soft light, high stability, long life,elegant and special external design. This Luminaries is regarded as the leading of greening Lighting for commercial and industrial uses.

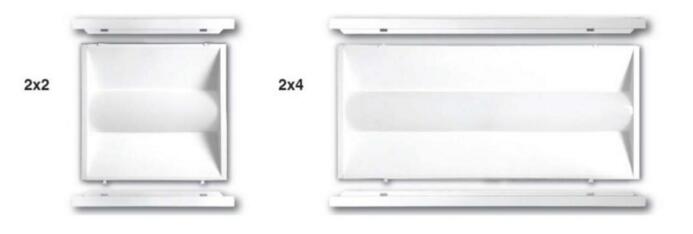

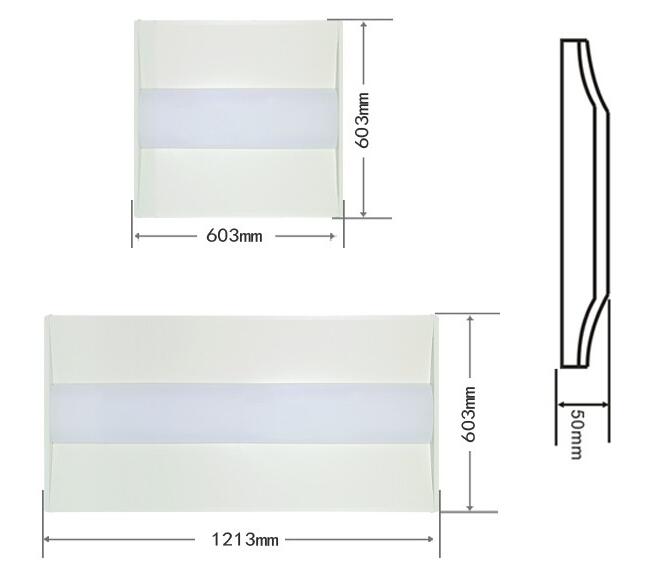

2x4 static troffer recessed,2x2 led lay in fixture dimension:
DLC listed recessed troffer led model list:
| Models | Rayou Code | Lumen Efficiency |
Voltage | LED Chip | Dimmable | Sensor |
| 2x2ft led troffer light 24w | RL-TRS22-24W | 125~130lm/w | 100~277VAC | Bridgelux 2835SMD LM70 LM80 |
0/1-10V dimmable optional |
Microwave motion sensor optional |
| 2x2ft led troffer light 36w | RL-TRS22-36W | |||||
| 2x4ft led troffer light 24w | RL-TRS24-24W | |||||
| 2x4ft led troffer light 36w | RL-TRS24-36W | |||||
| 2x4ft led troffer light 42w | RL-TRS24-42W | |||||
| 2x4ft led troffer light 50w | RL-TRS24-50W |
led retrofit kits for fluorescent recessed lighting conversion list:
| Models | Rayou Code | Lumen Efficiency |
Voltage | LED Chip | Dimmable | Sensor |
| 2x2ft led troffer retrofit 24w | RL-TRS22-24W | 125~130lm/w | 100~277VAC | Bridgelux 2835SMD LM70 LM80 |
0/1-10V dimmable optional |
Microwave motion sensor optional |
| 2x2ft led troffer retrofit 36w | RL-TRS22-36W | |||||
| 2x4ft led troffer retrofit 24w | RL-TRS24-24W | |||||
| 2x4ft led troffer retrofit 36w | RL-TRS24-36W | |||||
| 2x4ft led troffer retrofit 42w | RL-TRS24-42W | |||||
| 2x4ft led troffer retrofit 50w | RL-TRS24-50W |
2x2 2x4 recessed led troffer electricial parameter:
|
ELECTRICAL MEASUREMENTS
|
|
Input voltage:100~277VAC, 50~60Hz Built-In Driver
|
|
Input wattage:24W/36W for 2x2ft 24W/36W/42W/50W for 2x4ft
|
|
Power factor:0.90min
|
|
LEDs: Bridgelux 2835SMD LM80
|
|
THD 15% max.
|
|
LM70 Lifespan:50,000hrs
|
|
Dimmable: 0/1~10V Dimmable,Motion Sensor optional
|
|
Operating temp.: "- 30℃ to +50℃"
|
|
PHOTOMETRIC CHARACTERISTICS
|
|
Initial Lumens Output:3000/4500Lm
|
|
Initial Lumen Efficacy:125lm/W
|
|
CCT:3500K/4000K/4500K/5000K
|
|
CRI >80
|
|
Lens:PC diffuser
|
|
LUMINOUS INTENSITY DISTRIBUTION
|
|
Beam angle:120Degree
|
|
PHYSICAL SPECIFICATION
|
|
Length:23.74 (603mm)
|
|
Width:23.74” (603mm)
|
|
Height:1.97” (50mm)
|
|
Housing material Metal Sheet
|
|
Finish:White Powder Coat
|
|
Packing Type:1 unit/CTN
|
|
Packing Dimension:L65*H7*W65cm
|
|
Packing Weight:5kg
|
LED troffer light save energy,take 25w single tube led troffer light for example,it lighting 8 hours every day.
1.The lumen: 1 LED troffer 24W = 3pcs 14w T5 fluorescent.
2. LED troffer light about $30/pc,1 general tube light about $10/pc,so can save US$10 per used cycle.
3.LED is 50,000hrs,T5 fluorescent is 3000hrs,1 LED troffer light=3*16pcs T5 fluorescent,it will save US$450.
|
LED troffer Light ,Lighting 50,000 Hour |
||||
|
|
LED troffer LIGHT |
EQT |
14W T5 FLOURESCENT |
Save |
|
Lamp Cost |
$30 |
3XUS$10=US$30 |
$460 |
|
|
50000H |
16X3000H=48000H |
|||
|
Electricity |
1800KWH |
2100KWH |
300KWH |
|
|
Labor Cost |
1 Time |
3X16=48 Times |
A Lot |
|

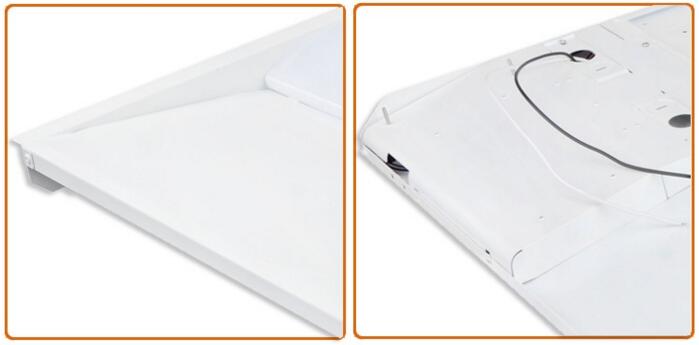

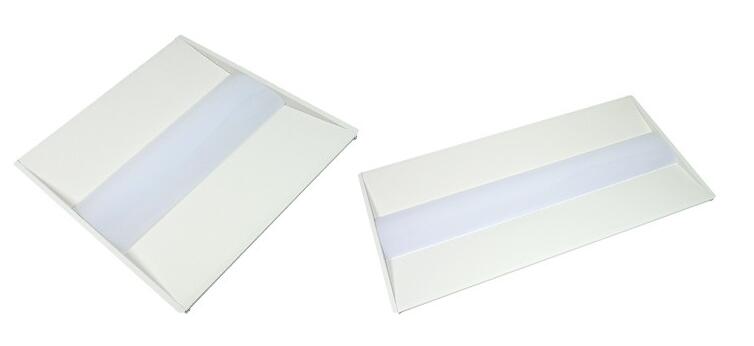

More details view of the recessed troffer lighting kits:

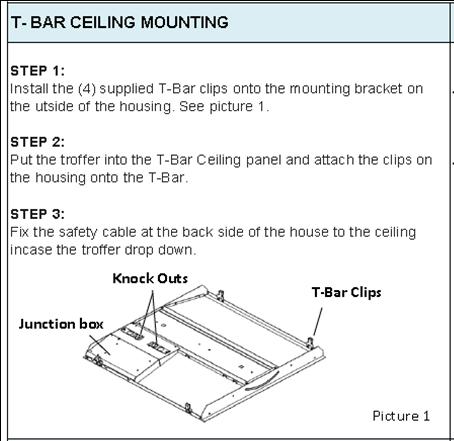

led recessed troffers Installation diagram:

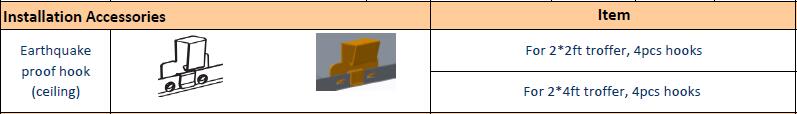

Installation accessories for led troffer light fittings:

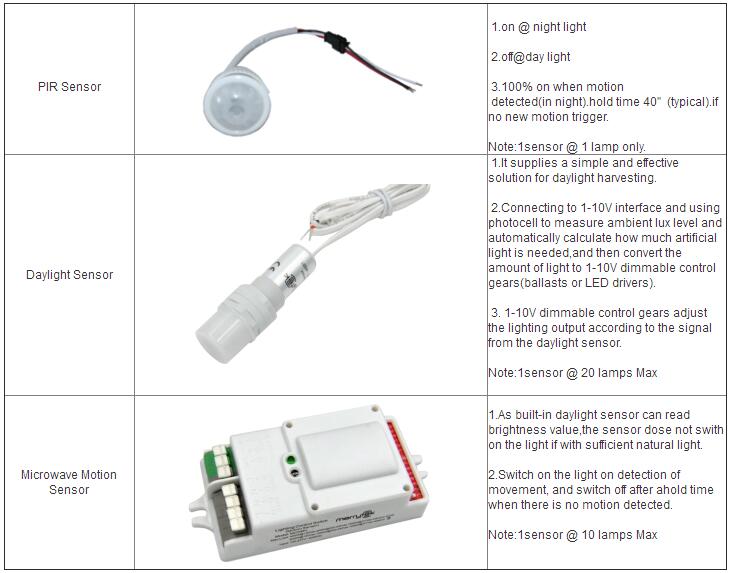

Multi version sensor optional for led troffer fixtures:
2x4 led recessed troffer,2x2 troffer fixture packing:
|
ITEM |
CARTON SIZE(CM) |
Qty. |
G.W./N.W. |
Qty for 20#Container (No Pallet) |
Qty for 40#Container (No pallet) |
|
2×2Ft |
L65&H7*W65 |
1pc/ctn |
3.6kg/2.2kg |
702 |
1513 |
|
2×4Ft |
L130&H7*W65 |
1pc/ctn |
7kg/5kg |
360 |
774 |

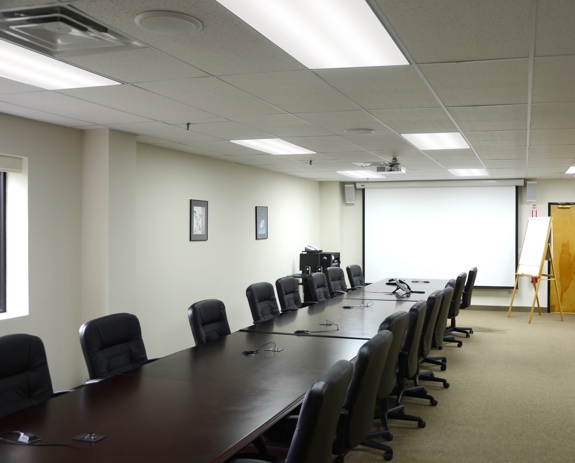

parabolic 2x4 grid light fixture application:
LED troffer light used for residential buildings,home,office,meeting room,school,library,factory,warehouse, hotel,
parking garage,hospital,commercial center,supermarket,shopping mall,train,bus station,airport,etc.
RFQ:
1. Are you factory supplier?
Yes, we have our own factory, so we could offer LED troffer light with competitive prices!
2. What special service can you offer?
We can offer you the OEM and ODM service with favorable prices, and mark your brand and logo on the package!
3. How long will it take for my order to be shipped?
Usually, for sample order, it takes 5-7 days, and for big quntity order, usually take 10-15 days!
4. What's your after sale service?
We offer 5 years warranty for 2x2 lay in light fixtures, during the warranty, if the lamps fail to work, proved not cause by human being, we would offer you the free lamp parts or new lamps!
