Features:
working temperature: -20-60°C

Frequency: 433MHz

Input voltage: 12 and 24V DC

Output: 3 channels

Connection mode: common anode

Static power consumption: <1W

Output current: 3A (each channel)

Output power: 12V:<108W,  24V:<216W

This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to change the color as you wishmatch with RGB strip to produce all kinds of colored light. This product suit for every occasions, such as: LED flexible strip, LED wall washer, LED module, glass curtain wall light and so on.

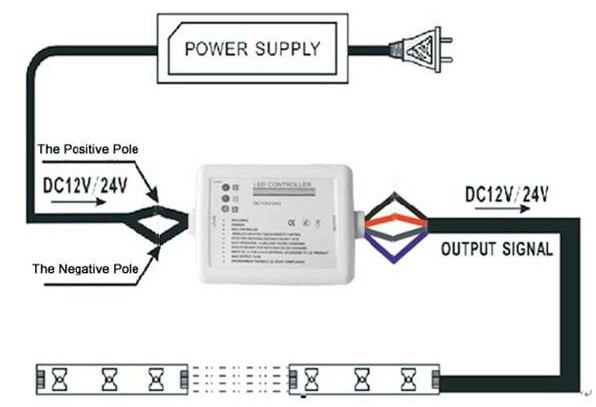

Connections:

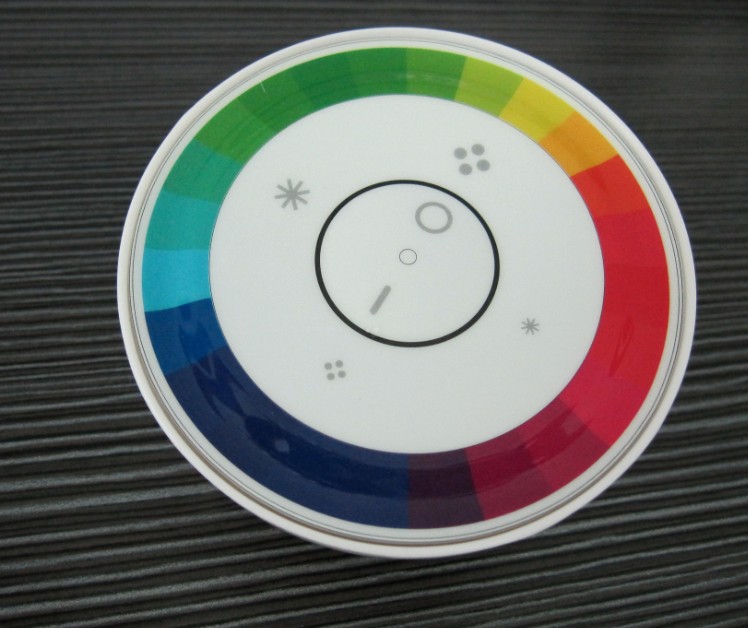

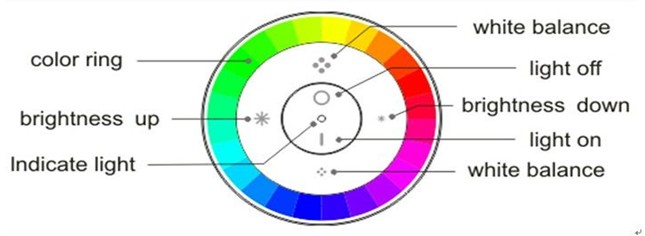

Function Instruction(Round type):

Operation Instruction:
1) Turn ON/OFF button, you can switch on the RGB LED strip.

2) Slide the color ring, RGB strip will show the same color

3) Gradual change model: Touch on button again under monochrome mode condition, RGB strip will be changed into gradual change mode .increasing color button will speed up the color change, decreasing color button will slowdown.

4) Hopping mode: Under gradual change mode condition. Touch on button .the RGB strip will be changed into hopping mode. Increasing color button will speed up the hopping, decreasing color button will slowdown.

5) Under gradual change or hopping mode, touching on switch will change one to the other. Close the RGB strip and restart It if you want to enter monochrome mode.

6) You can adjust the brightness by dimming function, to brighten, and dim the light

 Advantage:

1.Match with the RGB flexible strip,easily control the colors change

2.Wireless touching remote and control distance is more than 30meters

3.Two kinds of modes: Gradual change mode and hopping change mode.

4.The rate of color change and the brightness can be easily control

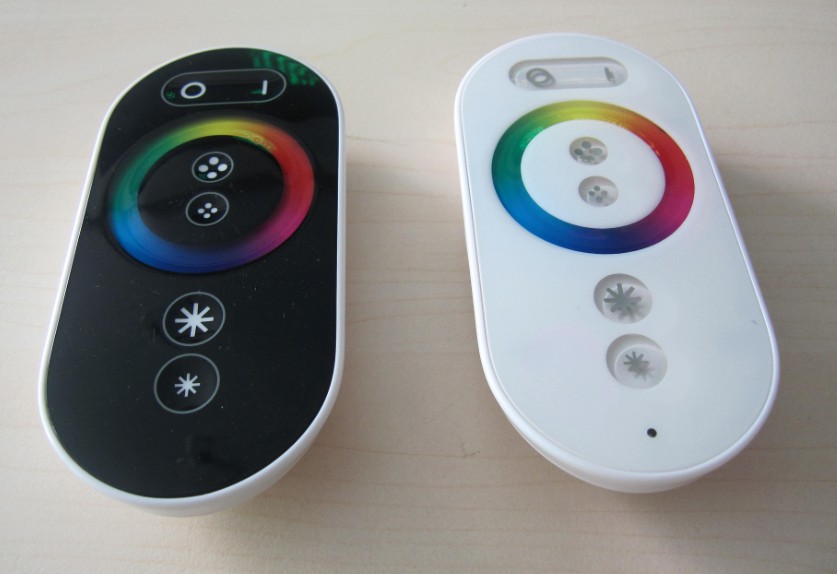

5. 3 kind of wireless remoter, you can choose as you like.

6: 2 years warranty
Package:

Net weight:104.5g

Gross weight:199g

General packing is white bag, special packing is available

The package includes:

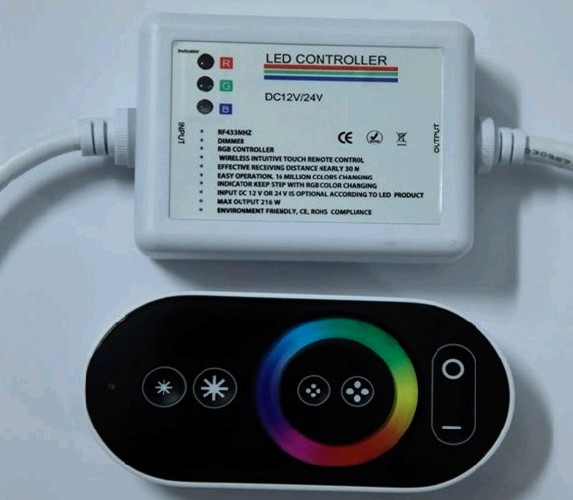

1.RGB controller

2.Wireless touching Remote

3.Manual
Cautions:
1) Input voltage of remote control must be the same as RGB strips

2) Match the color of output wiring when connecting

3) When the color doesn’t match, for example, it displays blue when touch green,or displays green when touching blue ,please check whether the wiring is correct ,in this case ,exchange blue and green.
