Ultra Slim 10W 20W 30W 50W 100W 150W 200W Outdoor LED Flood Light
1.10W 20W 30W 50W 100W 150W 200W led flood light are available.
2.3030SMD,or high lumen 2835SMD
3.>105~115lm/w,high efficiency
4.high quality,3years warranty
More smd led light flood details,pls contact me:
Skype: tyjeffery, Email: info@rayoulighting.com
Website: www.rayoulighting.en.alibaba.com
Slim SMD led flood light features:
1.New slim SMD led flood light using imported super bright philips 3030SMD light source, High brightness, long life.
2. By using new aircraft aluminum material flood light heatsink,whole SMD flood light good at heat dissipation.
3. Waterproof design with a new structure, Protection rate: IP65.
4. 4mm tempered glass panel to protect the lighting source, the transparent rate up to 93%.
5. the entire housing coated by electrophoretic pati, excellent corrosion resistance.
6. Multi design to choose,horizontal or vertical holder design are available.
new design outdoor led flood light specification:
|
Model |
Power |
CCT |
Voltage |
Luminous Flux(lm) |
Fixture Size LXBXH(mm) |
Net Weight(kg) |
Carton Size(cm) |
|
RL-SSWFL-10W |
10W |
3000K 4000K 6000K |
85~265VAC |
950 |
126x125x40 |
0.43 |
28X29.5x29,20pcs |
|
RL-SSWFL-20W |
20W |
1900 |
176x165x38 |
0.72 |
37x35x29.5,20pcs |
||
|
RL-SSWFL-30W |
30W |
2800 |
180x154x40 |
0.86 |
40x32x19.4,12pcs |
||
|
RL-SSWFL-50W |
50W |
4800 |
227x190x40 |
1.60 |
49.4x32x22,10pcs |
||
|
RL-SSWFL-100W |
100W |
9500 |
310x268x44.5 |
2.95 |
29.3x29.8x34,6pcs |
||
|
RL-SSWFL-150W |
150W |
14000 |
378X310X47.5 |
3.6 |
44.5x34.8x37.5,4pcs |
||
|
RL-SSWFL-200W |
200W |
19000 | 444X333X50 | 4.9 | 50.5x34.8x40,4pcs |

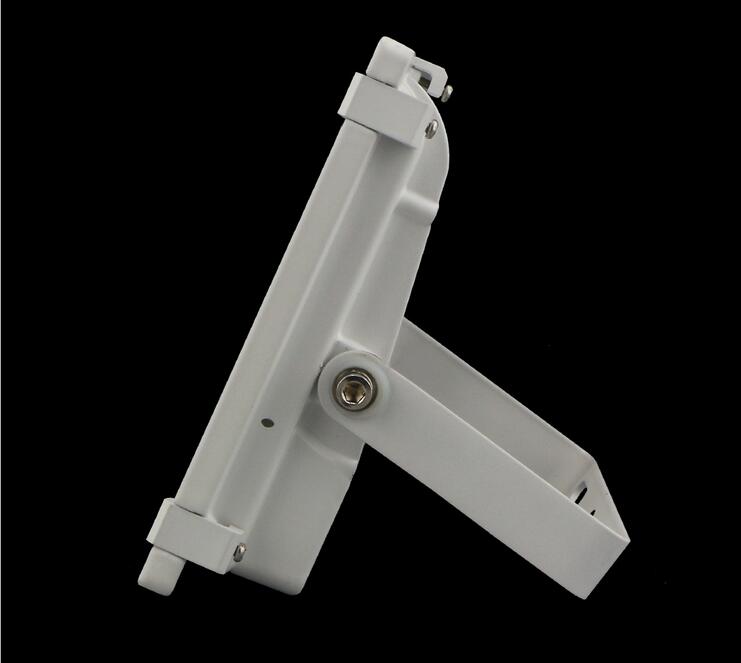

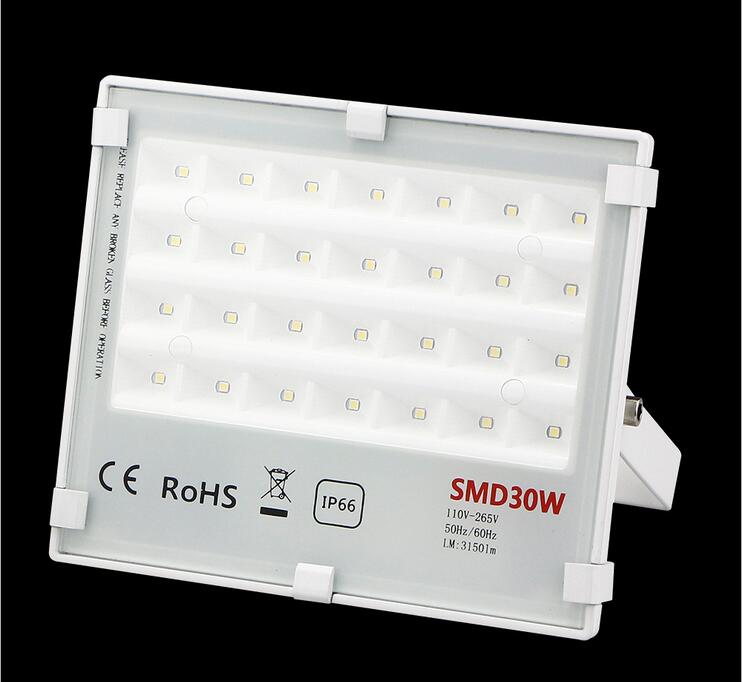

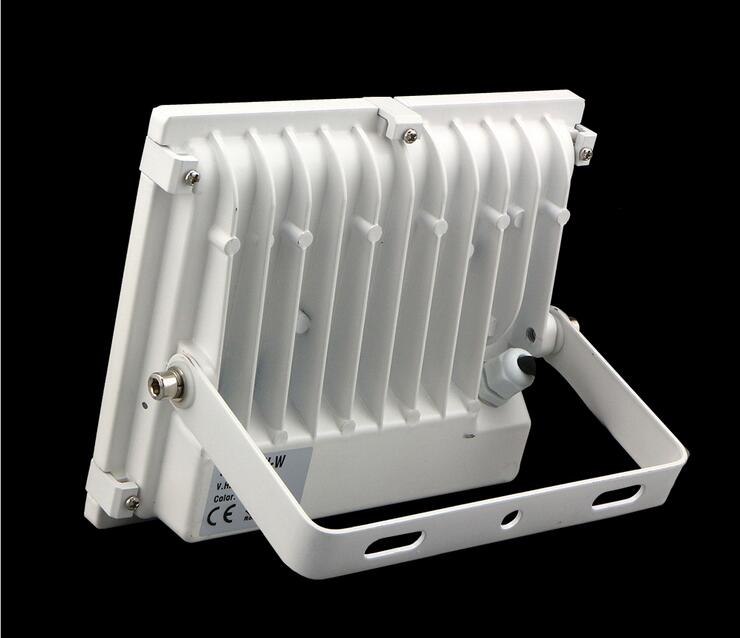

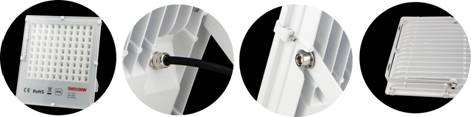

ip66 led flood light details view:

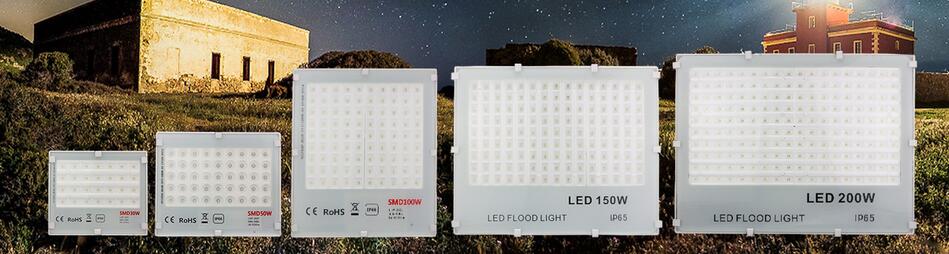

ultra slim 10w 20w 30w 50w outdoor led flood light more photos:

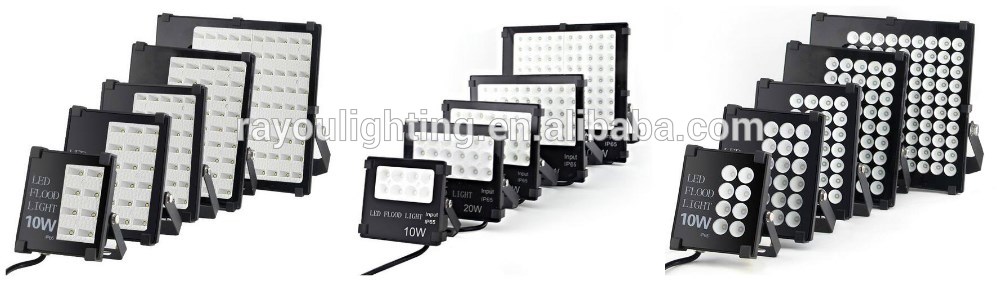

smd led floodligt different types to choose:
Factory overview:

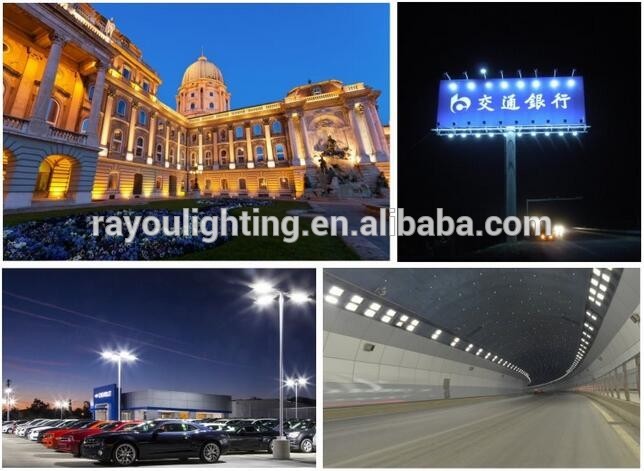

200w smd led flood light application:
200w smd led flood light is widely used for replacing traditional metal halide floodlight 400w,it can instant start and has long lifespan,
low consumption,and pollution freely,can be widely used for stadium,golf course,wharf,square,playground,gas station,high way
checking point,mining area,exhibition building and so on.
