Features:
working temperature: -20-60℃

supply voltage: DC5V, 12V , 24V optional（Specify the required voltage on order form）

output: 3 channels
connection mode: common anode

external dimension: L98ΧW45ΧH18mm

packing size: L105ΧW65ΧH40mm

net weight: 50g

gross weight: 70g

static power consumption: <1W

output current: <4A(each channel)

output power: 5V:<60W,  12V:<144W,  24V:<288W

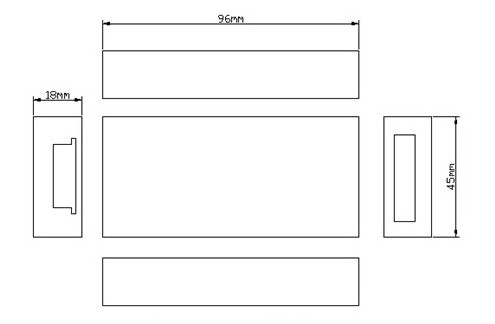

Dimension Drawing:

Interface Specification:
power input interface:

signal output interface:

signal input interface:


Instruction of Using:
According to the silk-screen prompts on the panel of RGB amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires,and then connect power for RGB amplifier,and RGB amplifier goes hand in hand with LED controller. please refer to the following < Typical applications>.

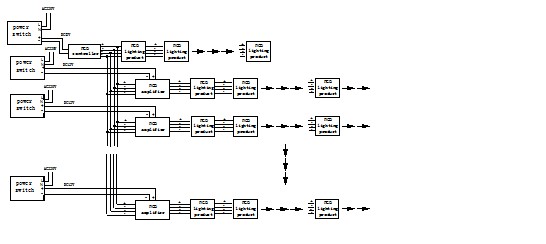

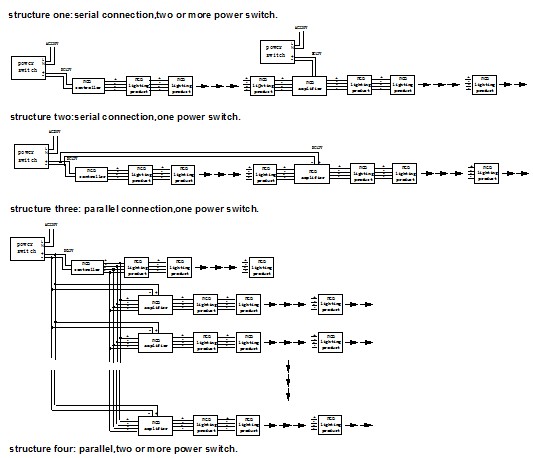

Technical Application:
