Features:
- Pre-programed 7 colors of Red,Orange, Yellow, Green, Blue, Cyan, Pink.
- Dimmer for Red LED 20 scales, Green LED 20 scales, Blue LED 20 scales,total 8000 colors can be adjusted, and can be store up.
- Flasher-8000 colors can be adjusted in Flash mode with 15 speeds, and can be store up.
- 3 modes of color changing are built in (Smooth flow, Strobe, Fading) and each color changing mode can be adjusted with 8 speeds, and can be store up.

Specification:

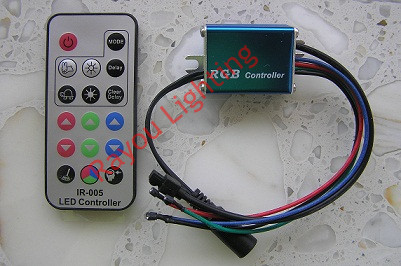

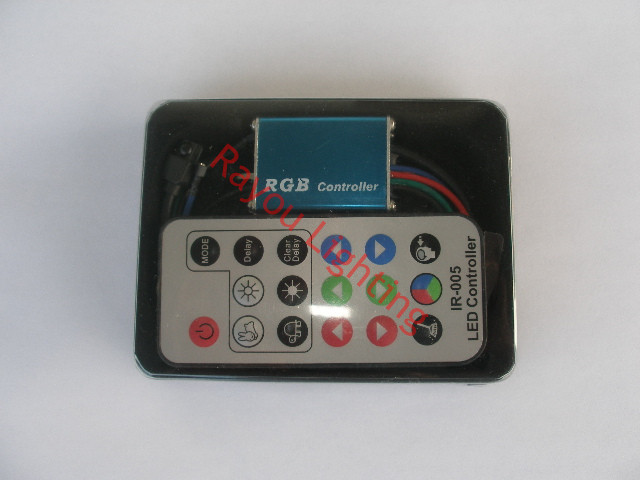

Model Item:RL- SLCB-4A0
1. Dimension: 42*28*16mm
2. Input Voltage: DC12V/24V
3. Channel: 3channels (RGB common Anode)
4. Current limitation: each channel 4A, total 12A
5. Protection class: IP65 (water proof)
6. Control method: IR remote control
7. Operation Temp: -25^oC~50^oC

Function:
1. Pre-programed 7 colors of Red,Orange, Yellow, Green, Blue, Cyan, Pink
2. Dimmer for Red LED 20 scales, Green LED 20 scales, Blue LED 20 scales,total 8000 colors can be adjusted, and can be store up.
3. Flasher-8000 colors can be adjusted in Flash mode with 15 speeds, and can be store up
4.  3 modes of color changing are built in (Smooth flow, Strobe, Fading) and each color changing mode can be adjusted with 8 speeds, and can be store up.
Direction for use
1.Connect the load wires at first, following by the power wires; Please ensure that short circuit can not occur between connecting
wires before you turn on the power.
2.In order to receive the infrared control signal normally, it is necessary ensure that there is no barrier between the remote control and infrared detector.
Attentions:
1. Supply voltage of this product is DC12V/24V; never connect to other sizes of voltages;
2. Never connect two wires directly in case of short circuit;
3. Load wires should be connected correctly according to the connecting diagram offers;
4. Don't peel off the label on the controller in case any indication of information will be missed;
5. Warranty of this product is one year. In this period, we guarantee replacement or repairing with no charge,but exclude the artificial
situation of damaged or overload working.
