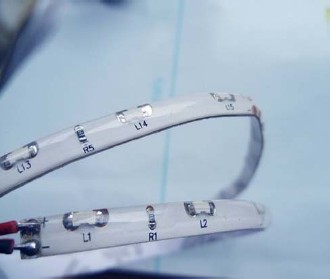

The Side Emitting LED Strip is extremely thin but still provides same level of brightness as our 3528SMD products. They are available in single color only (please see our RGB series products for multi-color option) - Red, blue, green, natural white,and warm white (customer required color possible). They are designed for interior and exterior use, able to bend and twist in just about any direction imaginable
All Kapor™ products can work with our Dimmer Controller to achieve more effects.
Features:

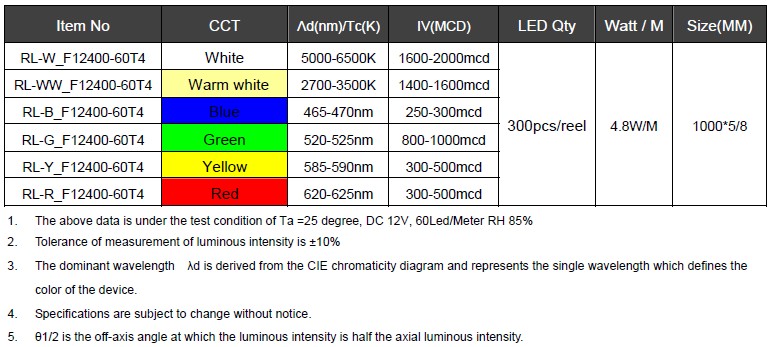

335SMD 4.5-6.5lm/LED High Quality Flexible LED Strips
1) 60leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)
And connect again by our accessories.
Input voltage: DC12V/0.34-0.4A/4-4.8W/M
2) Viewing angle: 120°
3) Available PCB color: yellow; white; black(Special)
This Flexible Strips can be in waterproof:
A: Waterproof IP65(WF): glue dropped type

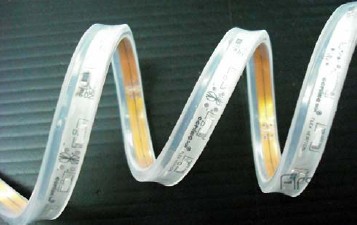

B: Waterproof IP67(TF): silicon tube type
(A) (B)
All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help strip installation with our accessories

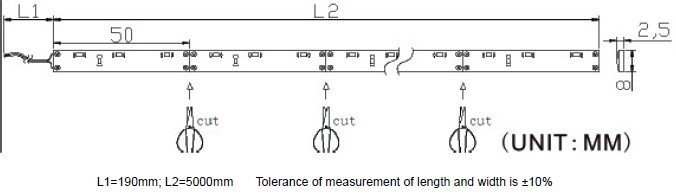

Dimension Drawing:

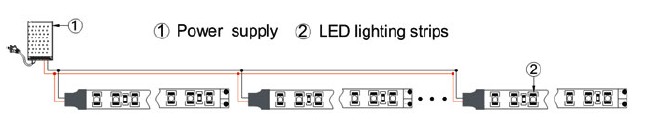

Connect Drawing:

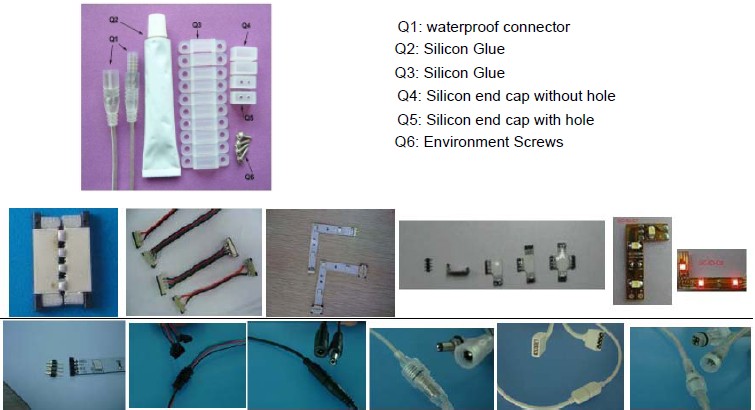

Accessories:

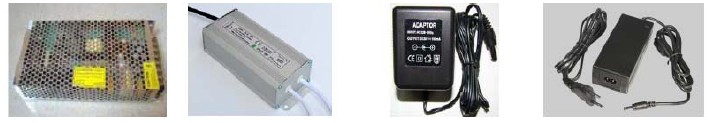

Power Supply:
How to connect non-waterproof strips:

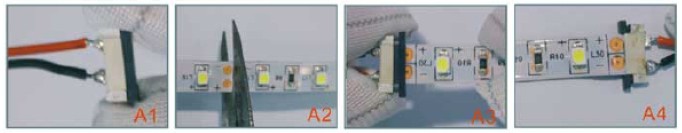

Step A 1: Pull out the black clip carefully.
Step A 2: Cut the high output led strip at the mark “scissors” or by every 3 SMD LED’s (DC 12V).
Step A 3: Put the high output led strip in the space between the clip and connector.
Step A 4: Push the clip in original position
Step B 1: Pull out the black clip of each side carefully.
Step B 2: Pull the high output led strip in the space between the clip and connector at one side.
Step B 3: Put the high output led strip in the space between the clip and connector at the other side, and
push the clip in original position

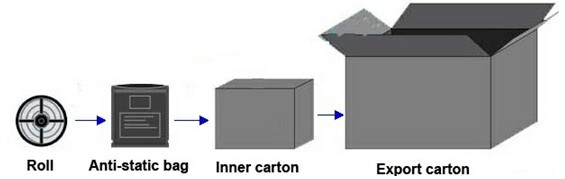

Package:
Installation Precautions:
1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters
2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.
3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly adhere.
4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp objects to touch the product.
Application:
Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc
