Home > Product > LED Flexible Strip > 5050SMD RGB Strip Series > 5050SMD RGB Color Strip

We install in each High Brightness RGB LED Strip, 150/300 surface mounted 5050 RGB LED Chips, that are individually picked by BIN Number in order to have a very steady color rendering in a big production line.For example the RGB LED Chips we use produces a very clean white light when you choose white in the RGB Controller

Features:

5050 SMD 13.5-19.5LM/LED High Quality Flexible LED Strips

1)30leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)

Input voltage: DC12V/0.6-0.9A/7.2W/M,DC24V/0.3-0.6A/7.2W/M

60leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)

Input voltage: DC12V/0.4-0.7A/14.4W/M, DC24V/0.2-0.5A/14.4W/M

2) Viewing angle: 120°

3) Available PCB color: yellow; white; black(Special)

Product Information:

Item No	CCT	Λd(nm)/Tc(K)	Flux(±5%)	LED Qty	Watt /M	Size(MM)
RL-RGB_F12600-30T3	■■■ RGB	R:38/G:63/B:20	575.2lm	150pcs/reel	7.2W/M	1000*10/12
RL-RGB_F121200-60T3	■■■ RGB	R:38/G:63/B:20	1148lm	300pcs/reel	14.4W/M	1000*10/12

1. The above data is under the test condition of Ta =25 degree, DC 12V, 60Led/Meter RH 85%
2. Tolerance of measurement of luminous intensity is ±10%
3. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the
color of the device.
4. Specifications are subject to change without notice.
5. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

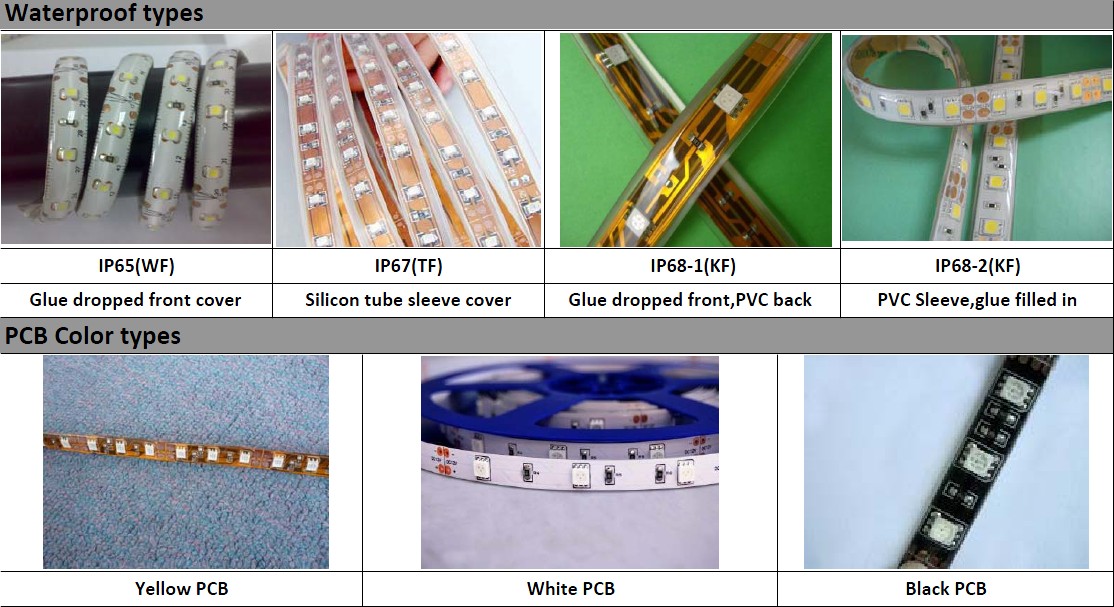

This Flexible Strips can be in waterproof:

All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help strip installation with our accessories

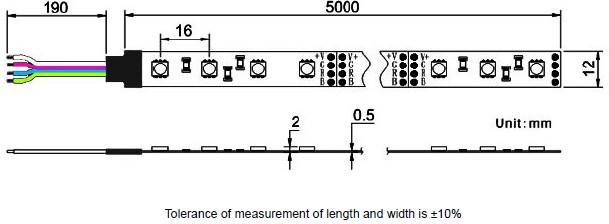

Dimension Drawing:

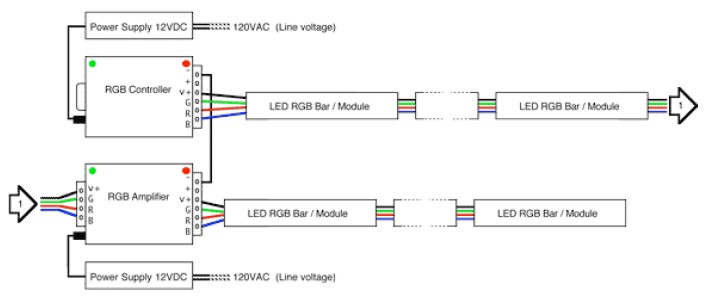

Connect Drawing:

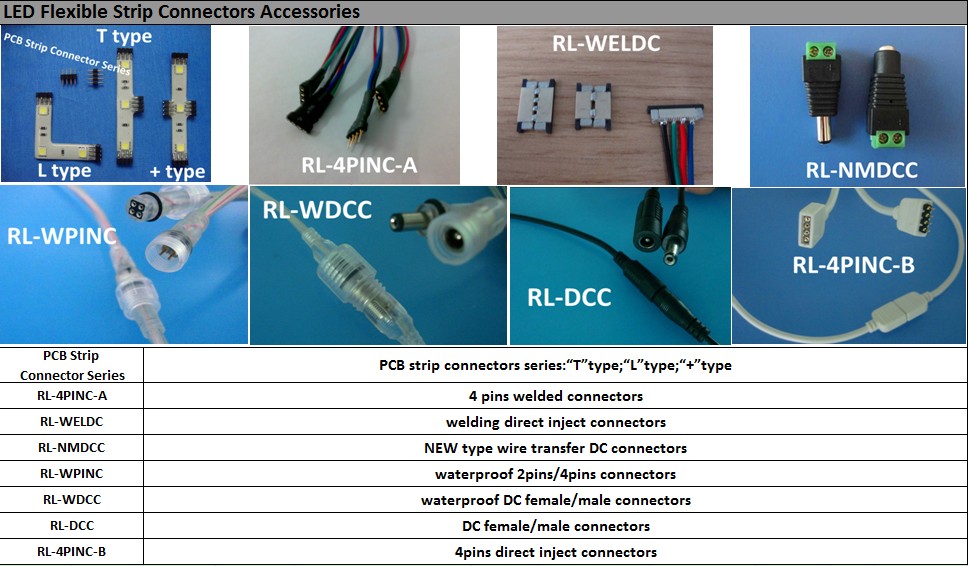

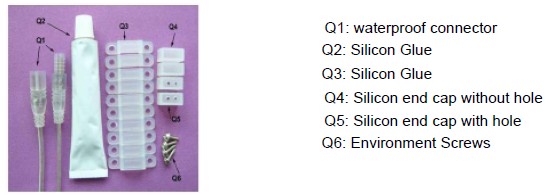

Accessories:

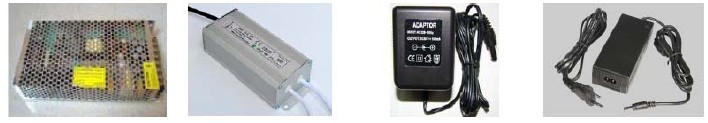

Power Supply:

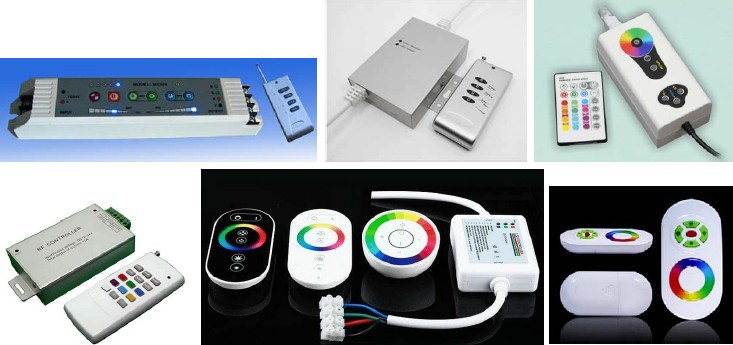

RGB Controller:

How to connect non-waterproof strips:

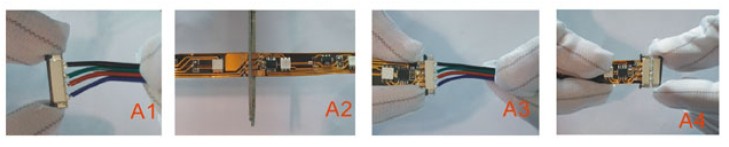

Step A 1: Pull out the black clip carefully.

Step A 2: Cut the high output led strip at the mark “scissors” or by every 3 SMD LED’s (DC 12V).

Step A 3: Put the high output led strip in the space between the clip and connector.

Step A 4: Push the clip in original position

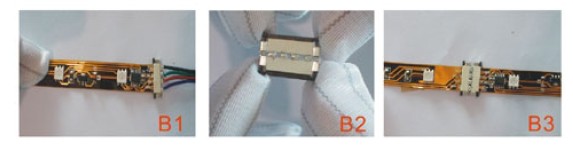

Step B 1: Pull out the black clip of each side carefully.

Step B 2: Pull the high output led strip in the space between the clip and connector at one side.

Step B 3: Put the high output led strip in the space between the clip and connector at the other side, and

push the clip in original position

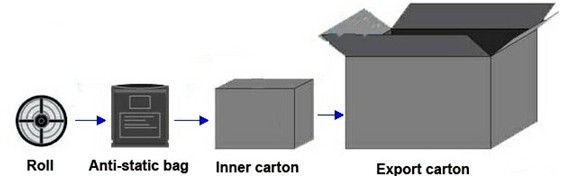

Package:

Installation Precautions:

1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters

2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.

3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly
adhere.

4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp
objects to touch the product.

Application:

Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc.
