Home > Product > LED Flexible Strip > 3528SMD Strip Series > 3528SMD 600pcs Strip

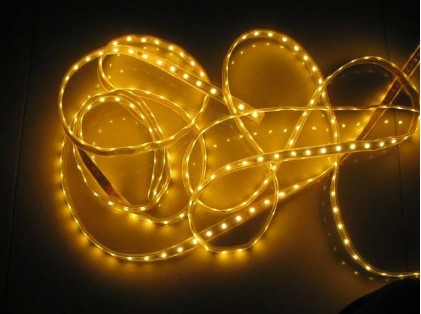

Thanks to its white(yellow/black is available) printed circuit board with 3M adhesive tape back,we install in each Flexible led strip,600 surface mounted 3528 LED Chips, that are individually picked by BIN Number in order to have a very steady color rendering in a big production line..

Features:

3528 SMD 4.5-6.5lm/LED High Quality Flexible LED Strips

1)120leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)

And connect again by our accessories.

Input voltage: DC12V/0.7-0.9A/8.9-9.5W/M,DC24V/0.4-0.7A/8.9-9.5W/M

2) Viewing angle: 120°

3) Available PCB color: yellow; white; black(Special)

Product Information:

Item No	CCT	Λd(nm)/Tc(K)	IV(±5%)	LED Qty	Watt / ft.	Size(MM)
RL-W_F12800-120T2	White	5000-6500K	2000MCD	600pcs/reel	1.44W/120mA	1000*10
RL-WW_F12800-120T2	Warm white	2700-3500K	1920MCD
RL-B_F12800-120T2	Blue	465-470nm	389.8MCD
RL-G_F12800-120T2	Green	520-525nm	1490MCD
RL-Y_F12800-120T2	Yellow	585-590nm	396MCD
RL-R_F12800-120T2	Red	620-625nm	358MCD

1. The above data is under the test condition of Ta =25 degree, DC 12V, 60Led/Meter RH 85%

2. Tolerance of measurement of luminous intensity is ±10%

3. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

4. Specifications are subject to change without notice.

5. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity

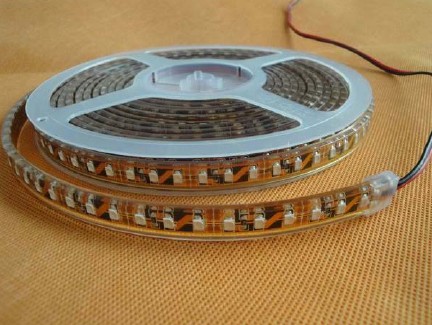

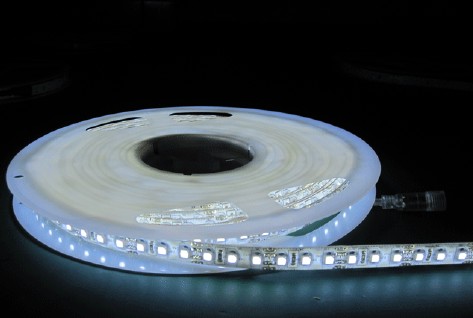

This Flexible Strips can be in waterproof:

A: Waterproof IP65(WF): glue dropped type

B: Waterproof IP67(TF): silicon tube type
C: Waterproof IP68(KF): PVC sleeve type

(A) (B) (C)

All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement

or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more

convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help

strip installation with our accessories

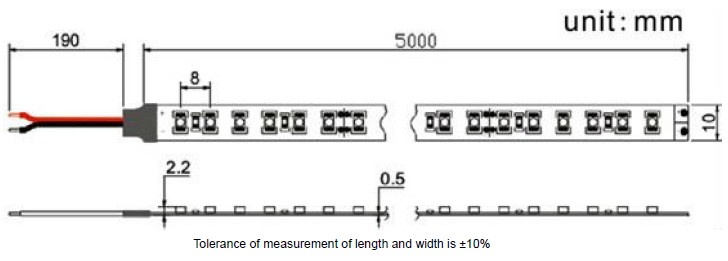

Dimension Drawing:

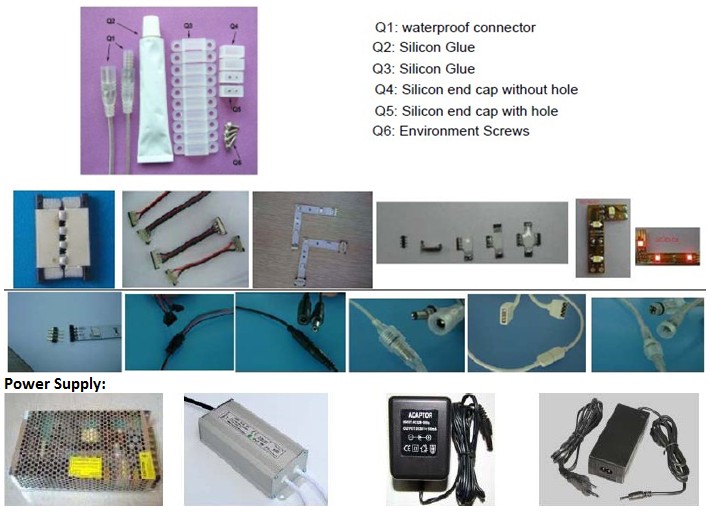

Accessories:

How to connect non-waterproof strips:

Step A 1: Pull out the black clip carefully.

Step A 2: Cut the high output led strip at the mark “scissors” or by every 3 SMD LED’s (DC 12V).

Step A 3: Put the high output led strip in the space between the clip and connector.

Step A 4: Push the clip in original position.

Step B 1: Pull out the black clip of each side carefully.

Step B 2: Pull the high output led strip in the space between the clip and connector at one side.

Step B 3: Put the high output led strip in the space between the clip and connector at the other side, and

push the clip in original position.

Package:

Installation Precautions:

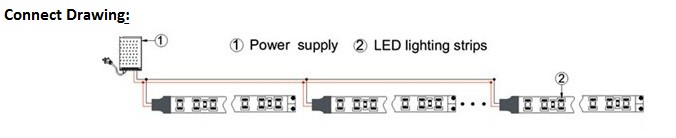

1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters

2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.

3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly adhere.

4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp objects to touch the product.

Application:

Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc
