Features:
al for telecontroller, free and easy operation,no direction in 20 meters;
Wide options of over 640,000 colors,change according to your mood
8 grades brightness adjusting, to achieve real energy-saving ;
With auto & manual color change mode
Long life, lifespan up to 40000hours;
Low energy consumption;
No UV radiation, no stroboflash
Accord with European Union CE, RoHS directive.

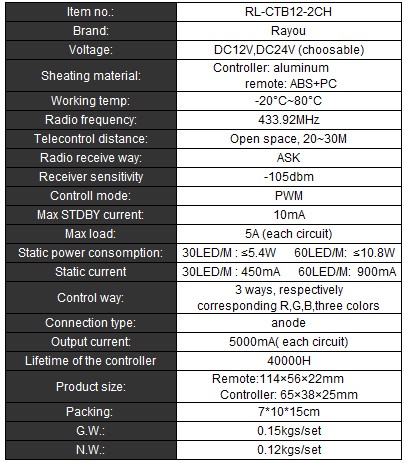

Specification:

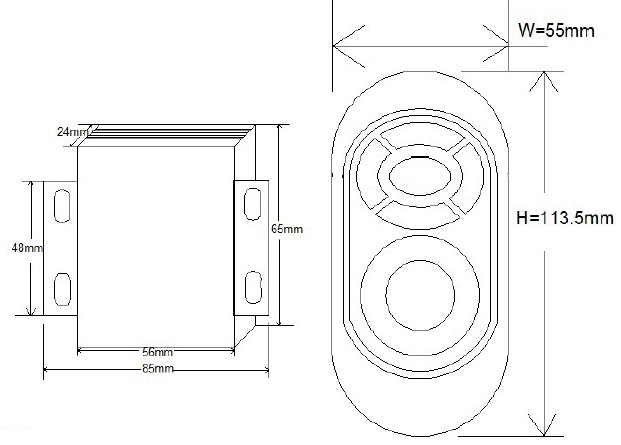

Drawing Dimension:

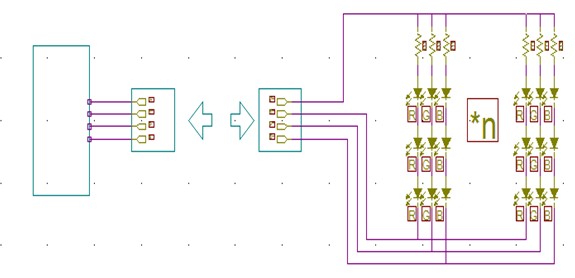

Connecting way:

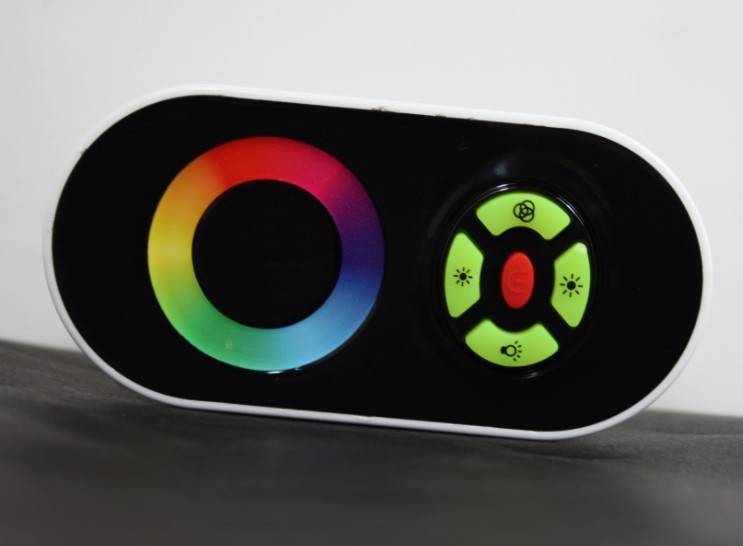

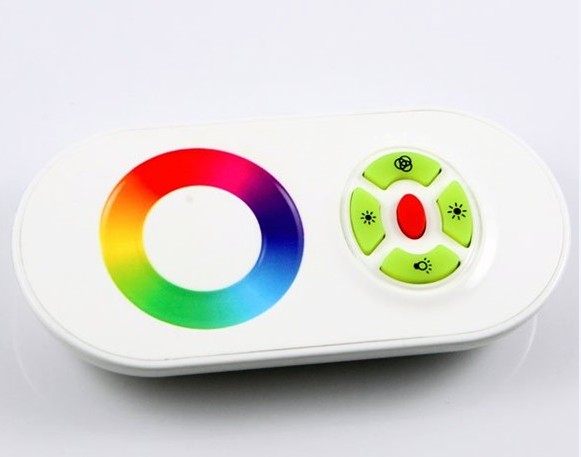

Function of Keys:
Key 1: on/off
Key 2: color light changing mode
Key 3: white light mode
Key 4: turn up(brightness)
Key 5: turn down(brightness)

How to use:
Press Key 1 to turn on/off in any state.
Press Key 2 to activate color light changing mode, keep pressing for long, will be switched into auto changing mode
Press Key 3 to activate white light mode,
Press Key 4/Key 5 to adjust the brightness.
Resume function. The previous settings will be resumed while power on again.
Code Matching

Press any key within 3 seconds when power on again,the light will blink 3 times if matching is successful.
Clearing Code

Press any key three times straightly within 3 seconds when power on again,the light will blink 6 times if clearing is successful.

Cautions:
Please don’t touch or press the color ring while loading the battaries to protect the  sensitiveness. Please use the remote controller 3 seconds after the battaries are loaded.Please reload the battaries when you find the color ring is not sensitive

How to fit the telecontroller and controller:

First they need to study when leave the factory for the factory customers,there is a study press-key on the control board, press the study-key in the condition of the energization, the white led will be out, at this time, press any buttons of the telecontroller, the white light will blinker three times, then the study is successful, the lamp will be controlled by the telecontroller.It need to study max 6 telecontroller for one function of the controller, it means that study 6 times, at this time, the controller can be controlled by the 6 telecontroller, it’s usd for the factory, study one is ok in the normal situation.

Here is how to clean out the address message inside of the controller, when don’t use the telecontroller to control the controller, it need to clean out the memory message inside of the controller. Press the study-key 3 seconds, the white light will blinker, meanwhile it clean out all of the memory message, the controller is empty, it can’t be controlled by any telecontroller, use it normally only re-study.

 How to choose the matched voltage of the external power supply

When we determined the series quantity of the LED lights, we can dispose the adapter voltage of the external power supply, for example, as per 3.3V to calculate for each Led, when need 6pcs Led in series,the voltage will be 19.8V, so we can use the 24V.
The input voltage must be more than need voltage, but not too more, the efficient is the most when it is the closest, for example, 3pcs Led need 12V, 8pcs need 30V.

 How to match the current for controller and Led

Performance demand of Led is the current can’t be more than the rated value, it will damage the Led once more than the rated value, the current output controlled need to customize as per the customers need, the output current of the controller use PWM constant current to control, Max output current for each way is 1000mA, the customers can customize the current as per the own need, calculate the parallel quantity of Led, multiply the each string current value.
