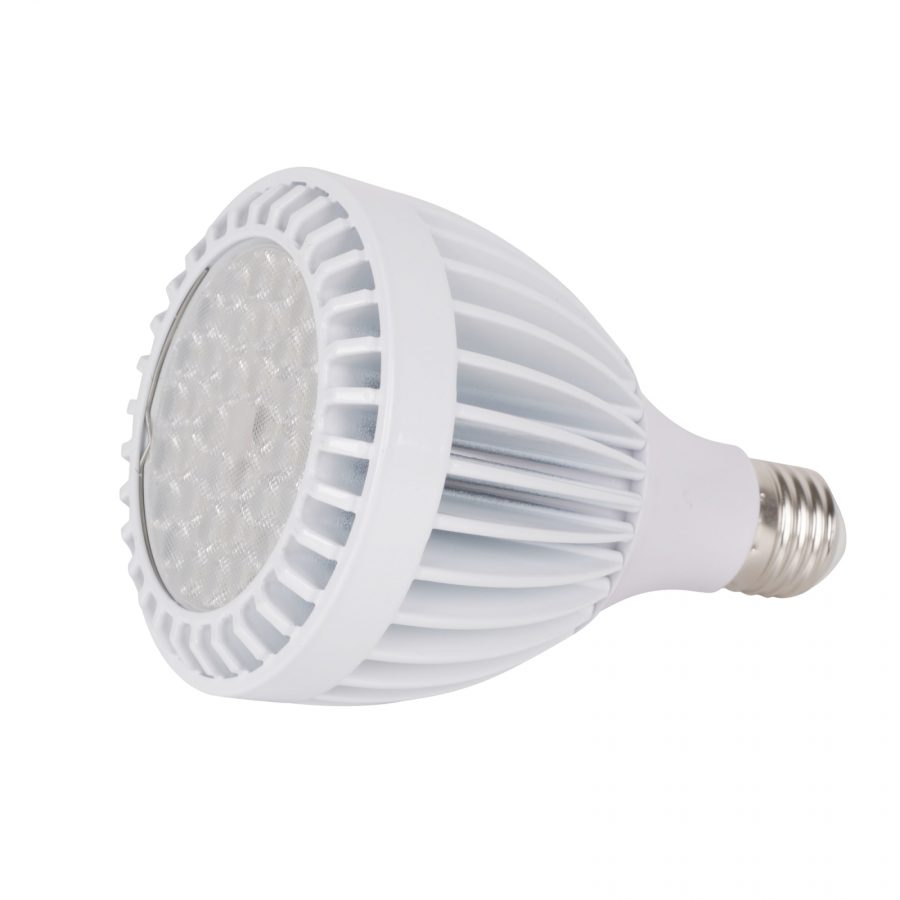

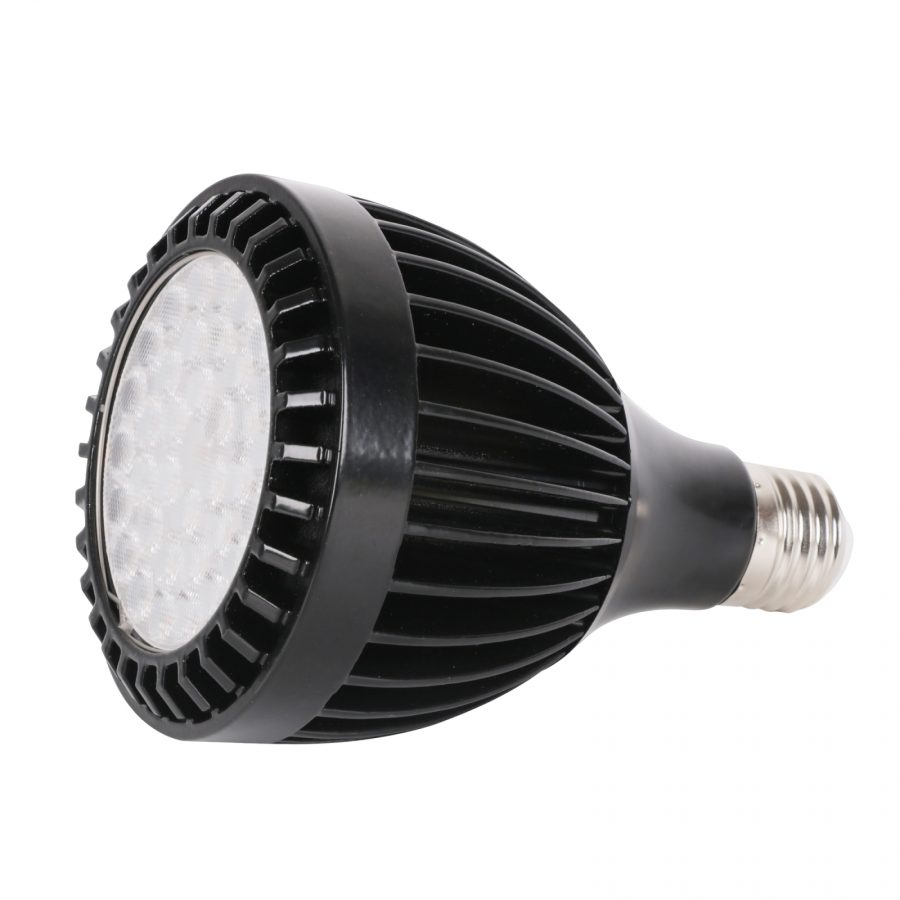

ProMax Series High Power SMD PAR30 LED Spotlight Bulb 25W 30W, Fanless Silent Cooling, CRI>90, High Efficacy >100LM/W, E26 E27 Base, 85-277V Commercial Track Light
25W / 30W (Replaces 150W Halogen)
Wattage
>100 lm/W
Efficacy
3000K / 4000K / 6000K (Optional: 3-CCT Selectable)
CCT
>90 Ra
CRI
Key Features
Fanless Silent Passive Cooling: Built with heavy-duty rugged die-cast aluminum fins for optimal thermal dissipation—100% silent operation with integrated IC over-temperature protection.
High Performance & True Color: Powered by high-efficiency 3030 SMD LEDs delivering over 100 LM/W and CRI > 90, ensuring true-to-life color rendering for retail, art galleries, and displays.
Energy Efficient: Save up to 85% energy by replacing power-hungry 150W halogen lamps with high-power 25W/30W LED options.
Global Compatibility & Versatility: Universal E26 / E27 dual-thread base and wide voltage driver (85–265VAC / 85–285VAC). Available in Full Black and Full White finishes to suit any fixture aesthetic.
Multi-Beam Angles & Custom Options: Features customizable optics with multiple beam selections (15° / 23° / 35° / 45°) and optional 3-CCT switchable designs.
Durable & Reliable: Flicker-free performance (PF > 0.9), glue-free lightweight construction, fully CE and RoHS compliant, backed by a 3 to 5-year warranty.
Product Description
SMD LED PAR30 Overview
Upgrade your commercial and architectural lighting with the ProMax Series SMD LED PAR30 Spotlight. Designed with proprietary in-house die-cast aluminum housing and advanced 3030 SMD LED technology, this PAR30 bulb offers high luminous efficacy (>100 lm/W) and high color fidelity (CRI >90) without the noise of a cooling fan. Engineered with intelligent IC temperature control and a wide voltage range (85–265V / 85–285V), it is the ultimate quiet, reliable, and energy-saving solution to replace traditional 150W halogen bulbs.
Ideal Replacement for Traditional Lighting:
- Halogen PAR30 Replacement: Direct replacement for traditional 75W–150W Halogen PAR30 bulbs, offering up to 85% energy savings with zero flicker and significantly lower heat output.
- Metal Halide (CDM / CMH) Retrofit: Perfect alternative to 35W–70W Metal Halide (Ceramic Metal Halide / CDM-T) spot lights, eliminating long warm-up times, loud ballast noise, and high maintenance costs.
- Plug-and-Play Upgrade: Designed with standard E26/E27 bases and broad voltage compatibility (85–265V), allowing quick and seamless retrofits into existing recessed cans, track lights, and surface-mounted fixtures without complex rewiring.

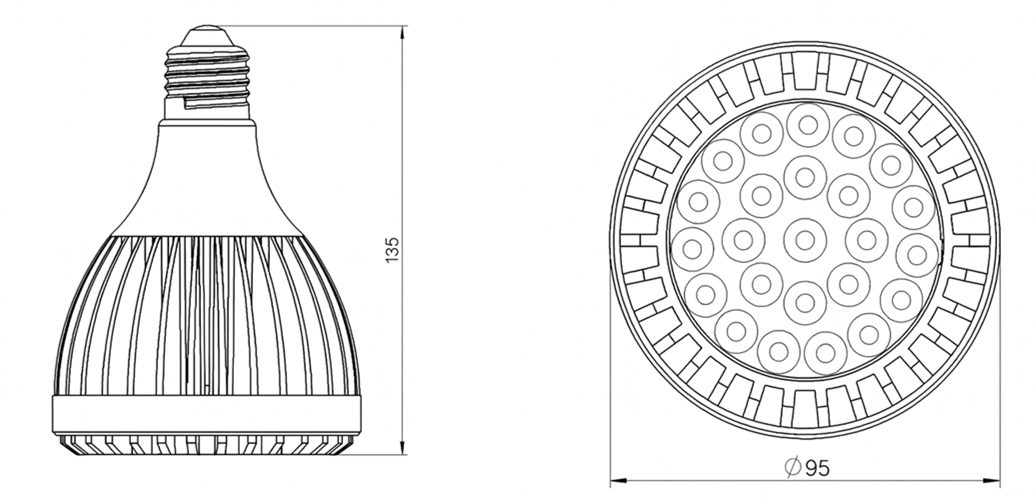

PAR30 LED Spotlight Dimension Drawing

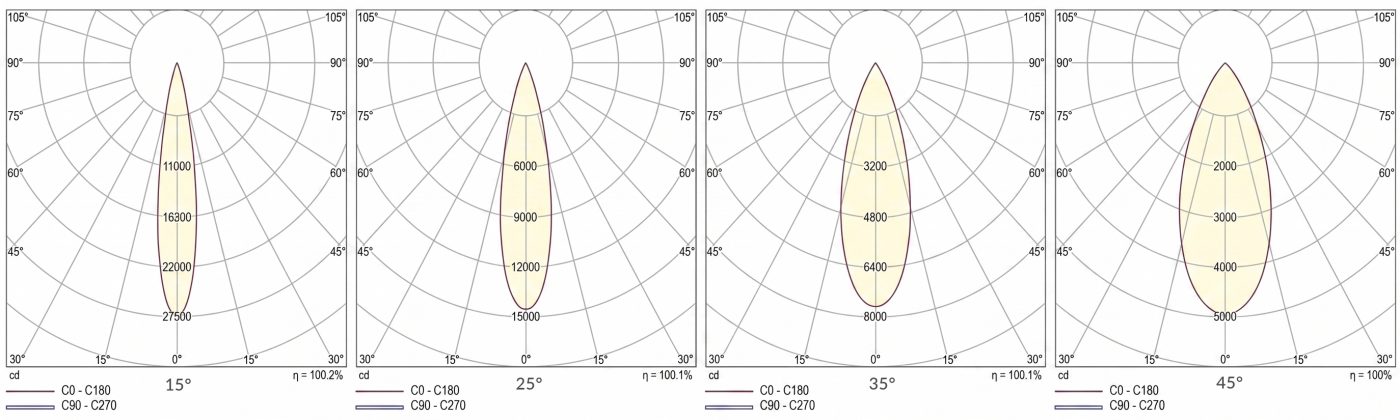

PAR30 LED Bulb Luminous Intensity Distribution Curve

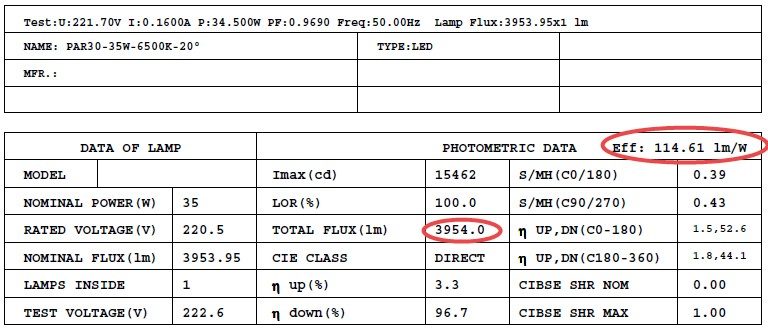

High Efficacy LED PAR30 Photometric IES Test Report

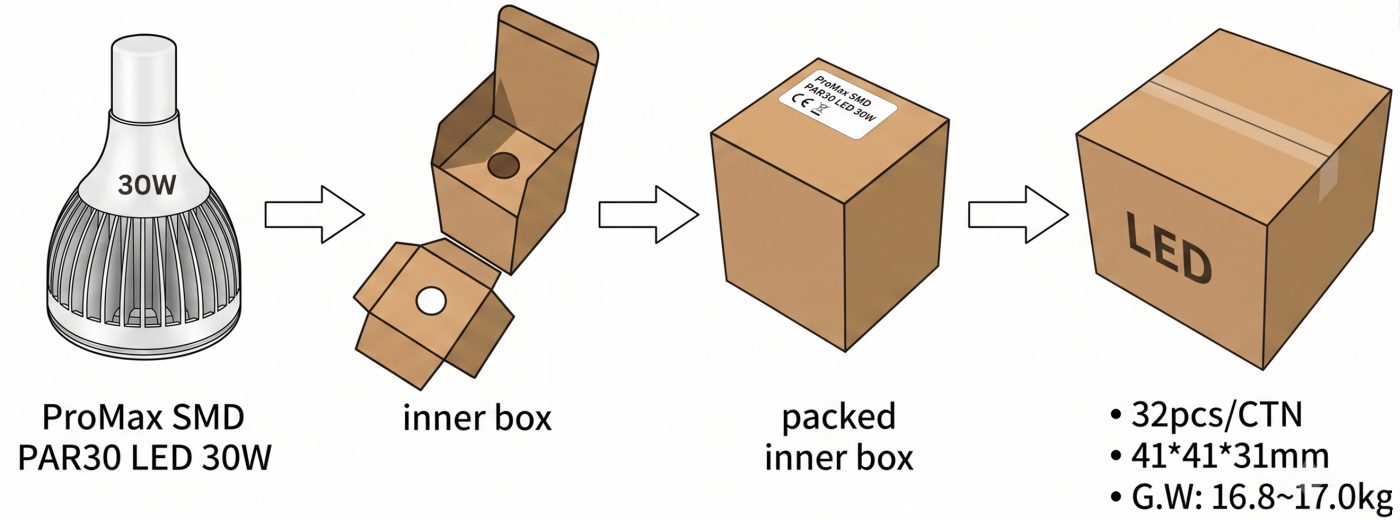

E26 E27 PAR30 lamp 25W 30W Packing
Specifications
| Product Series | ProMax Series SMD LED PAR30 |
| Lamp Base/Socket | Universal E26 / E27 Dual-Thread Base |
| Power Consumption | 25W / 30W (Equivalent to 150W Halogen / 35W-70W Metal Halide) |
| Input Voltage | AC 85–265V / 85–277V (50/60Hz, Universal Voltage) |
| LED Light Source | High-Efficiency SANAN/PHILIPS/CREE 3030 SMD LEDs (24 LEDs,30 LEDs,36 LEDs) |
| Luminous Efficacy | > 100 lm/W |
| Luminous Flux | ~2,500 lm (25W) / ~3,000 lm (30W) |
| Color Rendering Index(CRI) | Ra > 90 (Ultra-High Color Fidelity) |
| Beam Angle Options | 15° / 23° / 35° / 45° (Multi-Angle Beam Selection) |
| Color Temperature | (CCT)3000K (Warm White) / 4000K (Natural White) / 6000K (Cool White) (Optional: 3-CCT DIP Switch Selectable) |
| Power Factor(PF) | > 0.9 (Flicker-Free Driver) |
| Cooling System | Silent Passive Cooling (Fanless, Heavy-Duty Die-Cast Aluminum Heatsink) |
| Thermal Protection | Integrated IC Intelligent Temperature Control (Auto-Power Down Protection) |
| Housing Color | Full Black / Full White (High-Redundancy Powder Coating) |
| Dimensions | Standard PAR30 Diameter (∅95mm) |
| Operating Temperature | -20°C to +45°C |
| Certifications | CE, RoHS, ErP Compliant |
| Warranty | 3 to 5 Years Warranty (Select Models) |
Applications
Commercial & Retail Lighting
High-end clothing boutiques, jewelry stores, and luxury retail displays (high CRI >90 restores authentic product colors)
Supermarkets, shopping malls, and department store accent lighting
Hospitality & Dining: Hotels, lobbies, reception areas, and lounges
Restaurants, cafes, and bars (silent fanless operation ensures a tranquil dining atmosphere)
Art & Cultural Spaces: Art galleries, museums, and exhibition halls (UV-free optical lens protects sensitive artwork and displays)
Architectural & Public Venues: Showrooms, car dealerships, office buildings, and conference centers
Residential track lighting, high-ceiling living rooms, and spotlighting features
Need a custom solution?
We provide OEM/ODM services with custom wattage, color temperature, housing, and branding.
