Home > Product > LED Flexible Strip > CCT Adjustable Series > VANSO™ 3528 Color Temperature Adjustable Strips

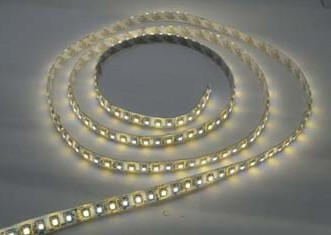

It is made by cold white &warm white LEDs alternately,so you can use our CCT remote controller to adjust the color temperature to satisfy customer’s different requirements , providing the capacity for really warm white to very cold white all in one single led strip.

All VANSO products can work with our Special Dimmer Controller to achieve more effects.

Features:



3528 Bi-color High Quality SMD Flexible LED Strips 4.5-6.5LM/LED



1) 120leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)

And connect again by our accessories.

Input voltage: DC12V/0.8-0.9A/9.7W/M,DC24V/0.4-0.7A/9.6W/M

2) Viewing angle: 120°

3) Available PCB color: yellow; white

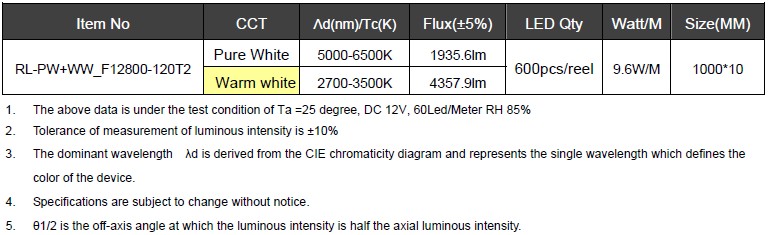

Product Information:

This Flexible Strips can be in waterproof:

A: Waterproof IP65(WF): glue dropped type
B: Waterproof IP67(TF): silicon tube type
C: Waterproof IP68(KF): PVC sleeve type



(A)                                                    (B)                                            (C)

All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement

or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more

convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help

strip installation with our accessories

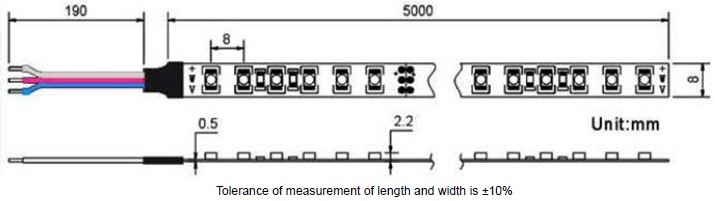

Dimension Drawing:

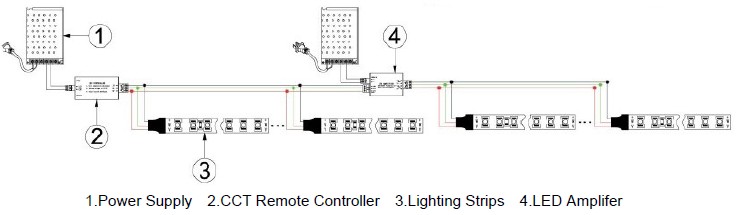

Connect Drawing:

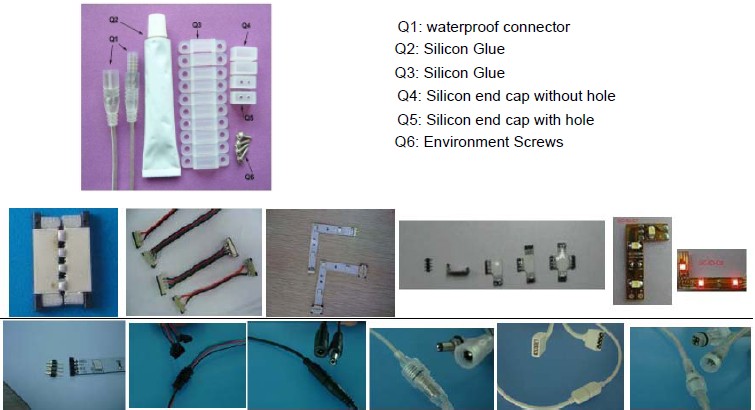

Accessories:

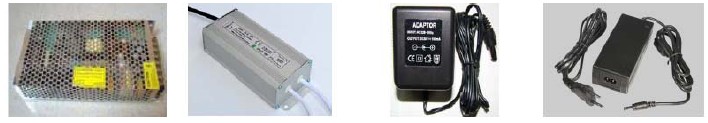

Power Supply:

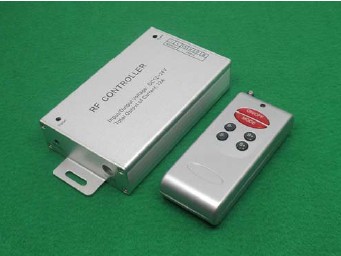

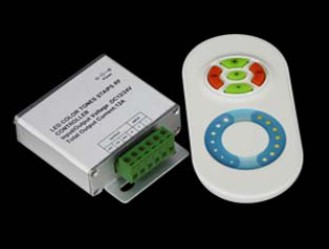

Specific Remote Controller(CCT):


How to connect non-waterproof strips:

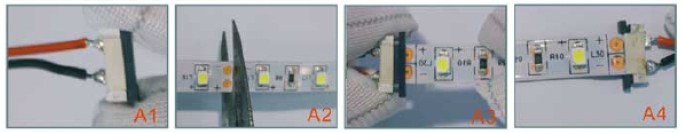

Step A 1: Pull out the black clip carefully.

Step A 2: Cut the high output led strip at the mark “scissors” or by every 3 SMD LED’s (DC 12V).

Step A 3: Put the high output led strip in the space between the clip and connector.

Step A 4: Push the clip in original position

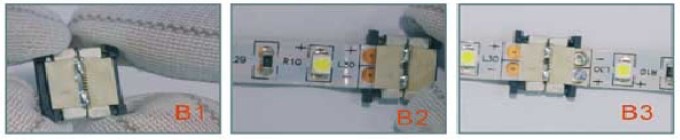

Step B 1: Pull out the black clip of each side carefully.

Step B 2: Pull the high output led strip in the space between the clip and connector at one side.

Step B 3: Put the high output led strip in the space between the clip and connector at the other side, and

               push the clip in original positio

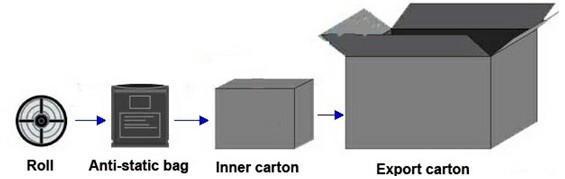

Package:



Installation Precautions:



1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters

2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.

3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly adhere.

4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp objects to touch the product.

Application:

Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc
