Feature:
1. Unique design of heat dissipation to improve lifespan
2. Build in constant current LED driver
3. Working temperature: -35degree~40degree
4. Save more than 90% energy
5. Low heat, NO UV ,No IR.
6.Die-cast aluminum gasketed enclosure
7.Stable production capability

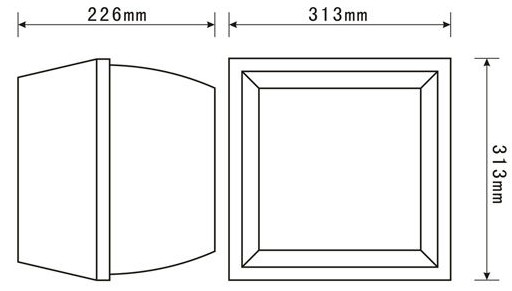

Dimension Drawing:

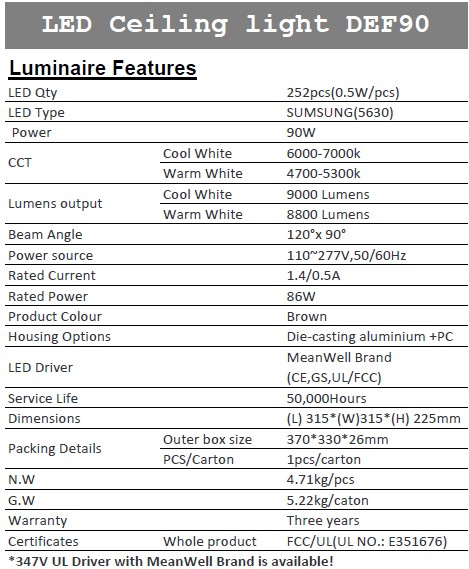

Parameter:

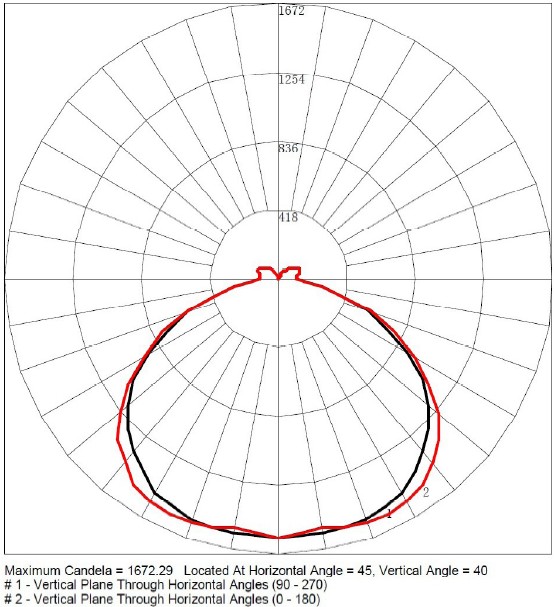

Polar Curves:

Installation Instruction:


1.Please check the box to see if there is damage or not before openning the box. Please check the attached technical documents such as brochures, factory certificate and check to see if there is damage of lamps.

2.The lamp will be directly fixed on the ceiling as shown above with the mounting hardware during installation. For wall mount only.

3. The environment temperature can not be over 38 degrees and below -30 degrees.

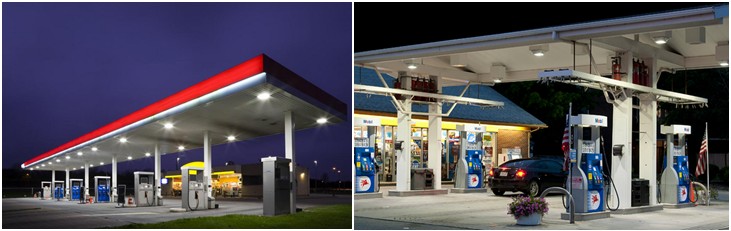

Application:
Tunnel, Subway, Underground Lighting;Gymnasium, Sports Stadium Lighting; Building, Billboard Lighting; Gas Station, Garage Lighting; Park, Garden Lighting.
