CE RoHS SAA Surface Mounted LED Oyster Lights for Ceiling Lighting
1) 12W 18W 24W 27W 30W are available
2) CE RoHS PSE SAA approved,3years warranty
3) Built-in motion sensor, daylight sensor, microwave sensor are available
4) Dimmable is available
5) Silver or white finished base optional





Features:
1.Power: 12W / 18W / 24W /27W/ 30W
2.Luminous efficacy: 70lm/W
3.Light source: high quality 0.5W SMD Samsung LED
4.CCT: cool white(5500-6500K), commercial white(4000-4500K)warm white(2800-3300K)
5.Color of aluminum frame: aluminum silver, white painting
6.Input Voltage: AC 100-240V
7.CRI: >80
8.IP Rating: IP20
9.Installation: Surface mounted,wall mounted
10.Working temperature: 55 degrees Celsius at room temperature 25 degree Celsius
11.Ambient temperature: -20~50 degrees Celsius
12.Certification: CE, RoHS, SAA
13.Warranty: 3 years

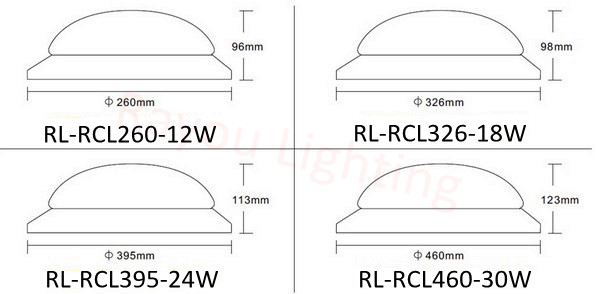

Dimension:

Technical Parameter:

Item NO.

LED Chip

Power

CCT

Lumen

Warranty

RL-RCL260PW-12W

24pcs Samsung 5630SMD LEDs

12.5W

6000-6500K

850lm

3 Years

RL-RCL260WW-12W

24pcs Samsung 5630SMD LEDs

12.5W

2800-3200K

650lm

3 Years

RL-RCL326PW-18W

36pcs Samsung 5630SMD LEDs

18.5W

6000-6500K

1300lm

3 Years

RL-RCL326WW-18W

36pcs Samsung 5630SMD LEDs

18.5W

2800-3200K

1000lm

3 Years

RL-RCL395PW-24W

48pcs Samsung 5630SMD LEDs

25W

6000-6500K

1600lm

3 Years

RL-RCL395WW-24W

48pcs Samsung 5630SMD LEDs

25W

2800-3200K

1400lm

3 Years

RL-RCL460PW-30W

60pcs Samsung 5630SMD LEDs

31.5W

6000-6500K

2100lm

3 Years

RL-RCL460WW-30W

60pcs Samsung 5630SMD LEDs

31.5W

2800-3200K

1800lm

3 Years

Instructure:

Mechanical Materials:
Copper PCB, Aluminum base
PMMA cover
Silver or white finished base

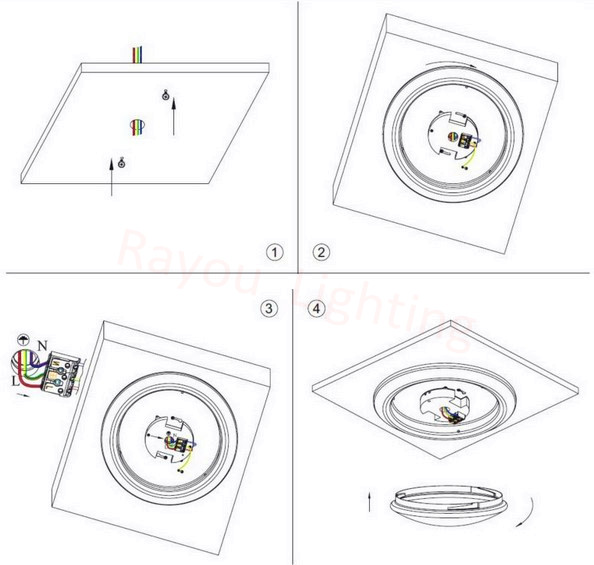

Installation:

Remark:
Suitable for wall and ceiling mounting, indoor using only
Only to be installed with qualified electrician
Kindly notice the power is off when installation
Supplied with LED and power supply
Function Description:

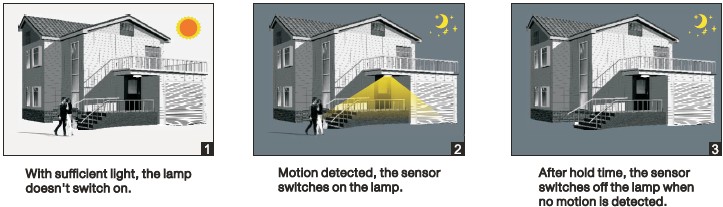

ON-OFF Function:
We provide the ceiling light with ON-OFF and steps dimming function , users can select the right function according to different applications.

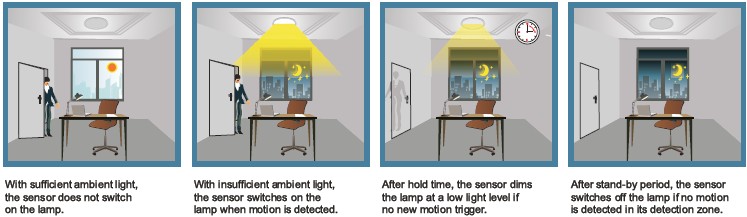

3-step Dimming Function:

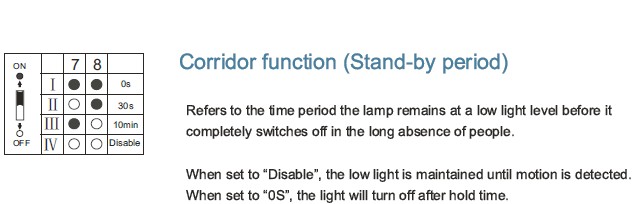

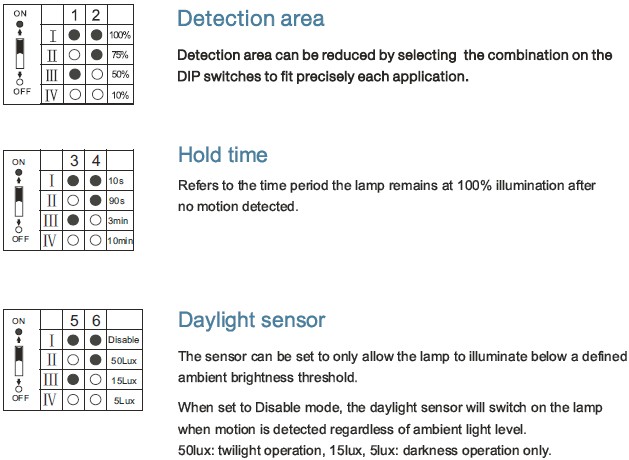

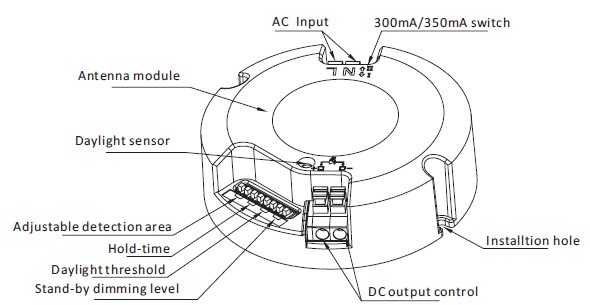

Setting:
By selecting the combination on the DIP switch,sensor data can be precisely set for each specific application.

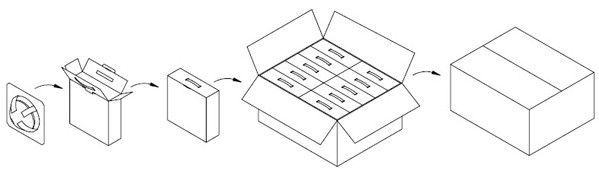

Package:

Item NO.

N.W(Kg)

Inner Box Size(mm)

Carton Size(mm)

Qty per CTN(pc)

G.W (Kg)

Volumetric Weight

RL-RCL260-12W

0.45kg

32.0x10.5x32.0mm

65.5x54.5x33.0mm

10pcs

9.18kg/CTN

23.6Kg/CTN

RL-RCL326-18W

0.73kg

38.0x11.0x38.0mm

77.5x57.0x40.0mm

10pcs

12.72Kg/CTN

35.4Kg/CTN

RL-RCL395-24W

0.89kg

44.0x12.0x44.0mm

63.0x46.0x47.0mm

5pcs

8.44Kg/CTN

27.3Kg/CTN

RL-RCL460-30W

1.12kg

50.0x13.5x50.0mm

71.0x52.5x52.5mm

5pcs

10.93Kg/CTN

39.2Kg/CTN

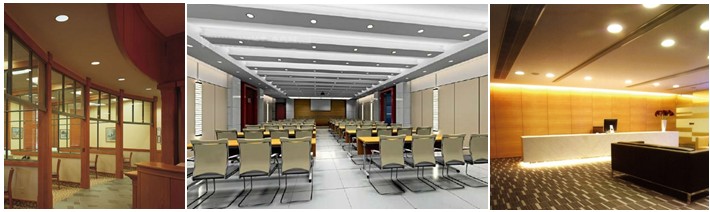

Application:
1.Commercial lighting, such as hotel, meeting room, restaurant, shopping hall
2.Office lighting, factory, office building.
3.Warehouse lighting, house hold lighting etc.
4.Hospital,school,subway and washroom, walkway and any other places which need high CRI lighting.
