SAA RCM LED COB Recessed Downlight Ceiling Light
1.SAA RCM ErP approved,100-240VAC input,3years warranty
2.Triac dimmable opitional,compatible with Clipsal dimmer
3.White/Silver/Black/Polish Chorme/Nickelage/Brushed & Other colors housing optional
4.White or black 3Pins,2Pins,USA/Europe/Australia Plug
5.7W 10W 12W 13W 15W 18W 20W 25W are possible
6. Epistar Bridgelux Sharp COB LEDs opitonal
Features:
Adopt high CRI COB LED, low heat resistance, with excellent heat conductivity, make sure product better stability and longer lifespan. Also with extruded alluminum alloy heatsink, with perfect heat dissipation effect, unique and elegant out looking.Twice no overlapped shadow optical design,highly improve the lamp light efficacy High CRI,high performance lumination effect, and CCT can be customized. SAA/CE/FCC/RoHS approved,Input voltage can be 90-264AC/47-63Hz,can be adjustable to indoor use across worldwide.

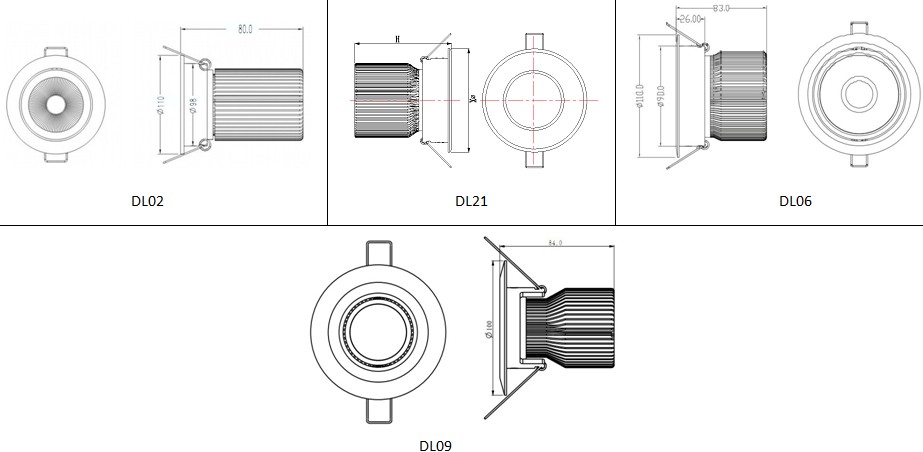

Dimensions:
Parameter:
|
Model Number |
RL-DL21AS-13W |
RL-DL21AS-15W |
RL-DL21AS-25W |
||
|
total Power |
13W |
15W |
25W |
||
|
LED |
COB |
||||
|
Lumens(LM) |
850±50 |
920±100 |
1400±100 |
||
|
Luminous Efficiency(LM/W) |
70±5 |
||||
|
Illuminance |
Lux@1M |
1728 |
1298 |
998 |
|
|
Lux@2M |
432 |
324 |
249 |
||
|
Lux@3M |
192 |
144 |
110 |
||
|
CRI(RA) |
>80 |
||||
|
Beam Angel(Degree) |
60 |
60 |
60 |
||
|
Color temperature |
2800-3000K 4000-4500K 5500-6000K |
||||
|
Lifespan(Hrs) |
>50000 |
||||
|
Voltage(V) |
AC 100-240V 50/60Hz |
||||
|
Electronic Static Discharge(ESD) |
Space discharge 8kV, Contact discharge 4kV |
||||
|
Working Temperature |
-20℃~+35℃ |
||||
|
Working Humidity |
(20-90)%RH |
||||
|
Storage Temperature |
-40℃~+85℃ |
||||
|
Storage Humidity |
(10-90)%RH |
||||
|
Product Size/mm |
Φ90x110 |
Φ111x113 |
Φ132x129 |
||
|
Cut out Size/mm |
Φ85 |
Φ95 |
Φ120 |
||

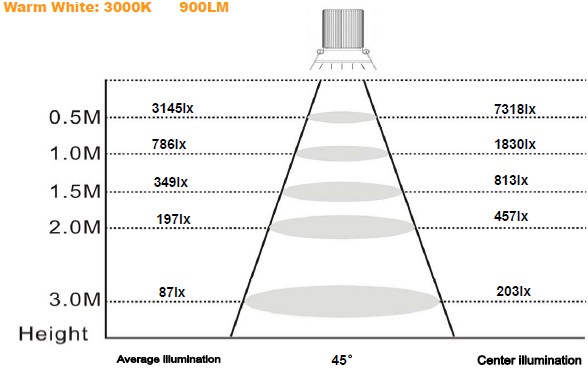

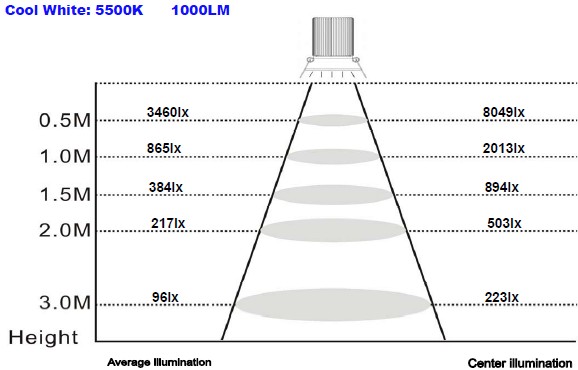

Cone Lux Diagram:
(DL06 18W version)

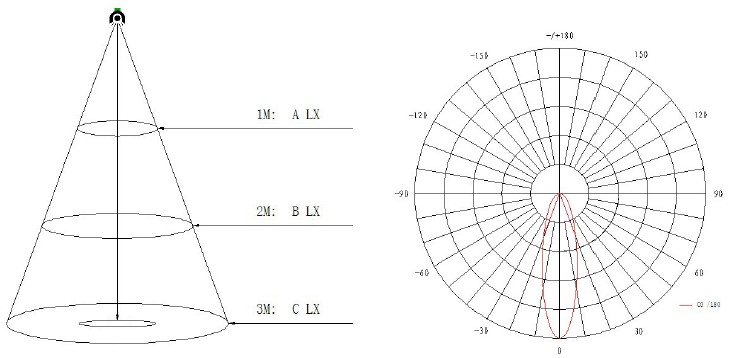

Photometry:

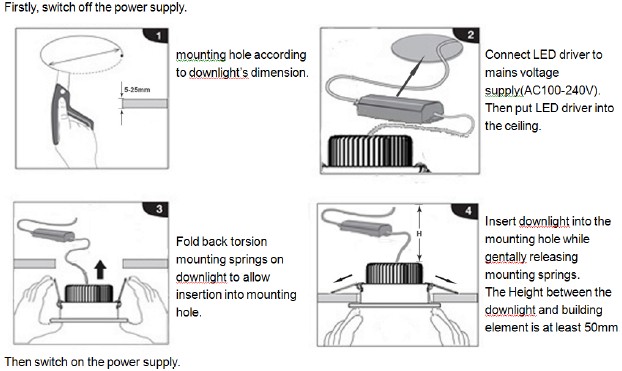

Installation Instruction:
Attention:
1. Rated Voltage:AC100V/240V±20V 50/60Hz,In order to realize the best lighting effect,please use under rated voltage.
2.Don’t installed into or near by flammable object.No Matter under what situation,please don’t using thermal insulation linings or any other similar objects to cover the lamp .
3. To protect you from getting electric shock,Please cut off the power when installing or exchanging lamps.
4. Please don’t touch lamp surface after it is lit up.
5. No installing near by heat/steam/corrosive gas to ensure lamp’s lifespan.
6. When lamp working faulty (Like die out/flash etc.) Please first check if lamp holder & Lamp Base contact performance and voltage for the power are working well,if yes,please exchange new lamp.
7. This lamp can be used indoor only,no using outdoor or anywhere get rain.

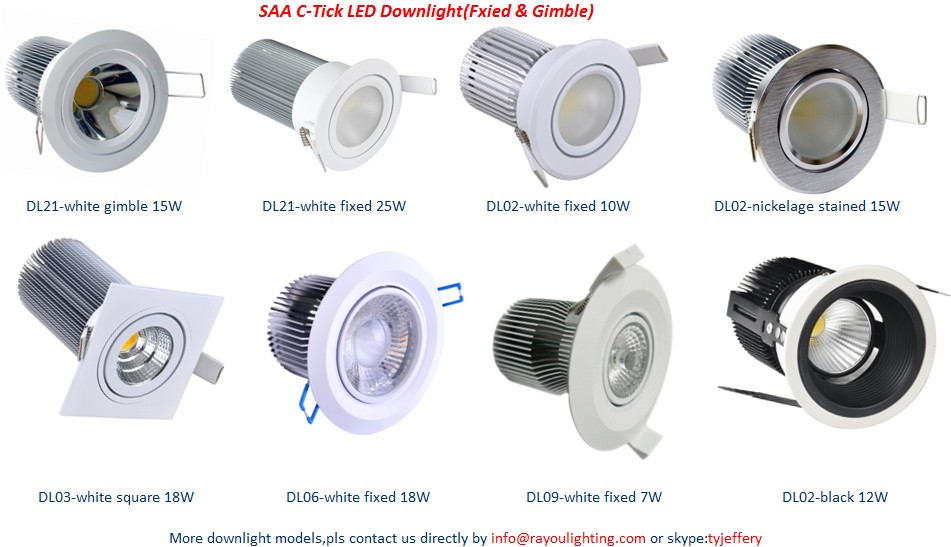

More Model Available:

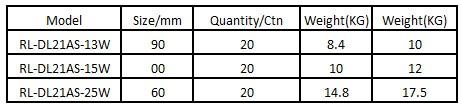

Packing:

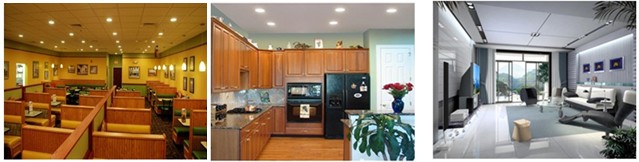

Application:
Widely used in Hotel,Bar,PassageWay,Shopping Mall,Toilet,Restaurant,Museum,Exhibition centre,storeroom,indoor home lighting etc project.
