FCC&CE&ROHS&PSE certificated high quality indoor led T8 tube
1. Extreme Efficiency: Over 80% more efficient than traditional fluorescents
2. Flicker-Free Lighting: Eliminate eye strain and headaches associated with fluorescents lighting
3. Shatter-Proof Design: Will not break even if dropped
4. No Mercury Inside: Allows the use of lighting when mercury contamination is not an option
5.Flexible Voltage: Use lighting in AC 85~265V or DC 24V Input Environments
6.No Interference: Perfect for settings where precise instruments can be disturbed by fluorescent


Feature:
This T8 Tube series has three types cover: milkly,transparent and frosted
Color Temperature Arrange:
Warm White : 3000-500K
Pure White: 4000-4500K
Cold White :6000-7000K
Standard Length :60cm ,90cm ,120cm,150cm
Main Technical Specifications:
1. LED type: 3528SMD LED (5050SMD/Samsung 5252SMD type is available)

2. Wide Voltage Input :AC 90-170 V;AC170-265V;DC24V is available
3. Frequency : 50-60 Hz
4. PF (power factor): 0.88-0.98
5. Power Efficiency :84%-92%

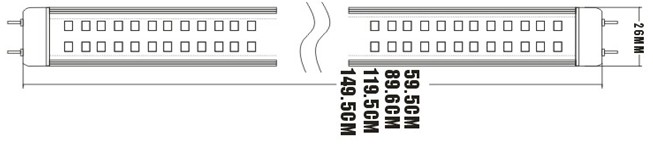

Dimension Drawing:

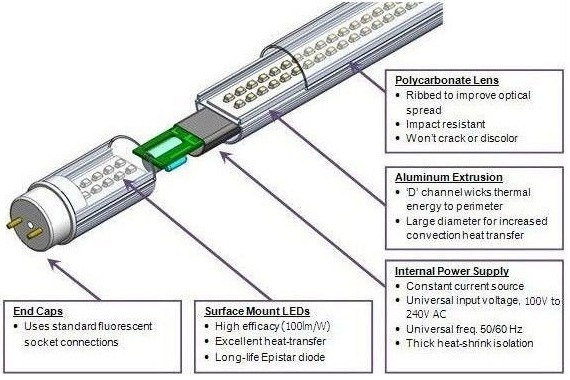

Inner&External Sructure:

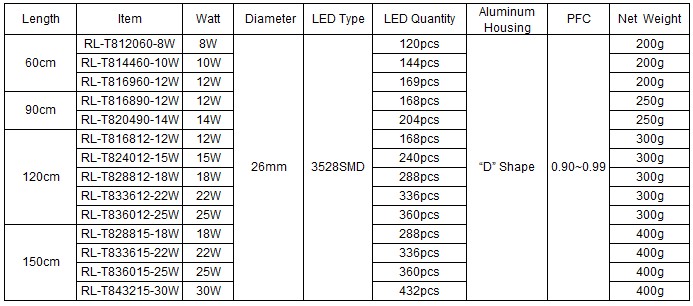

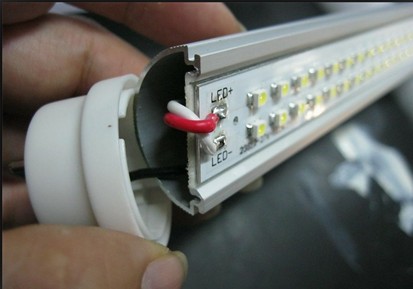

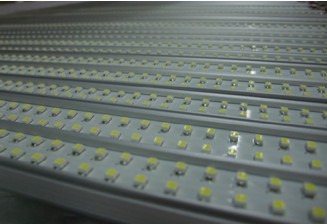

Physical Diagram&Characteristics:

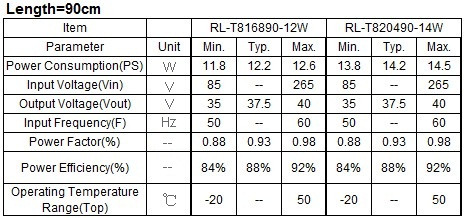

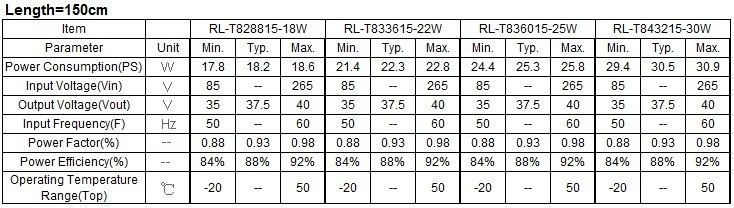

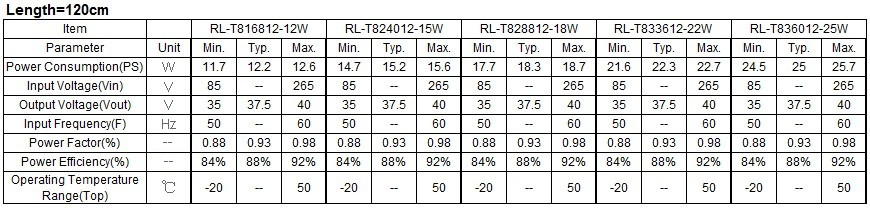

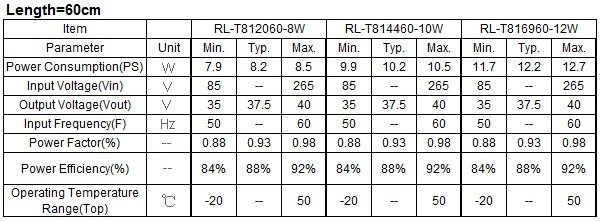

Electrical Characteristics:

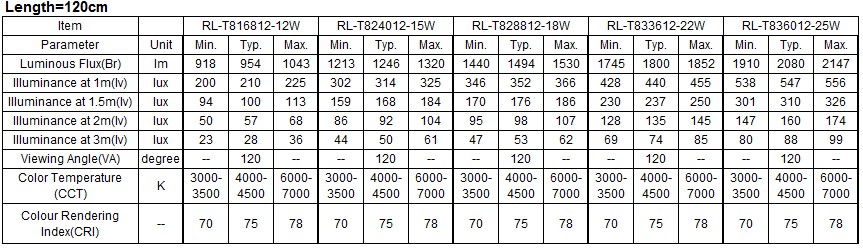

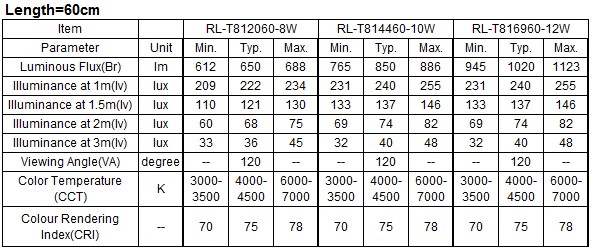

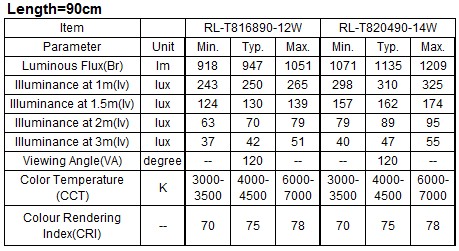

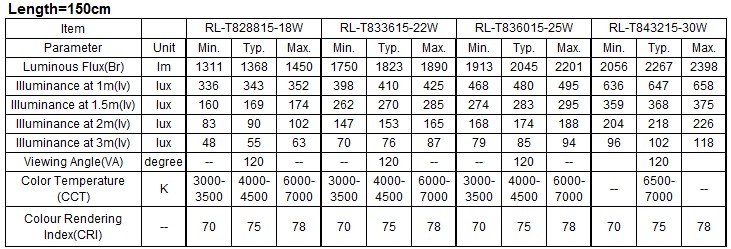

Photometry Characteristics:





                                 All data is under 25, unless otherwise specified

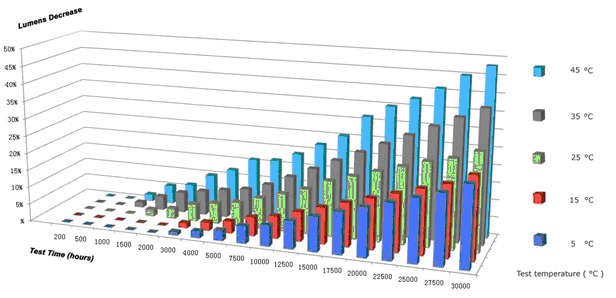

LED Tube Lumen Decrease:

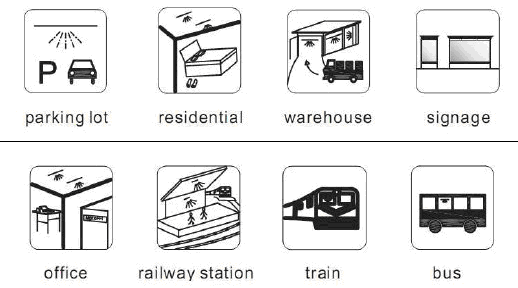

Application:

Installation Instruction:

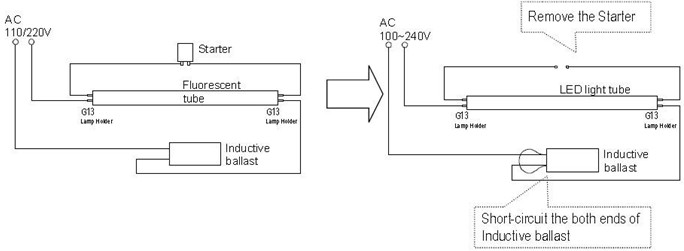

A):Lamp bracket of inductive ballast

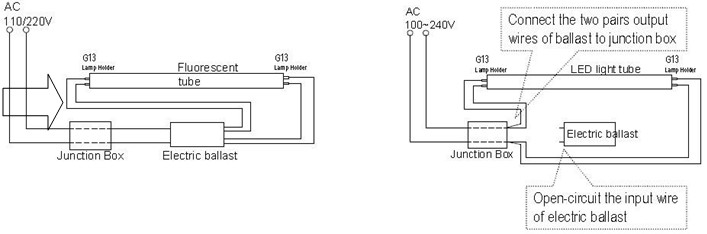

B):Lamp bracket of electronic ballast

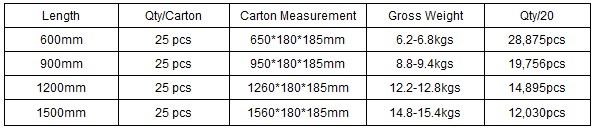

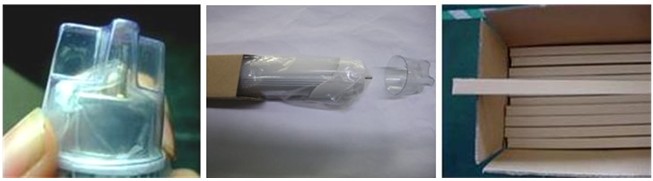

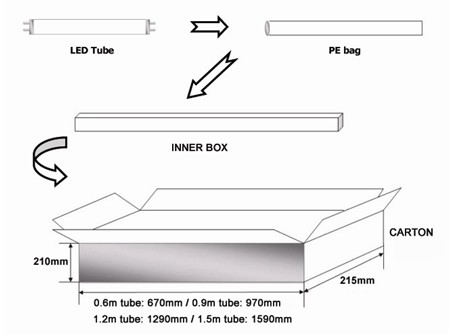

Packing:
