Features:
- Good heat dissipation and excellent driver
- CE,RoHS,UL,cUL,DLC ,TUV approval
- High quality & competitive price
- Energy saving up to 80% high intensity
- Inner power efficiency more than 87%
- Constant current driver with heat protection system, can work under unstable voltage
- Isolated power supply inside
- Minimum maintenance costs
- No RF interference, No flickering or buzzing
- Solid State, high shock/vibration resistant

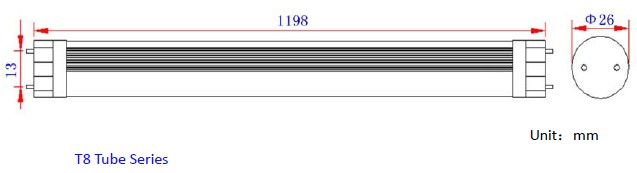

Dimension:

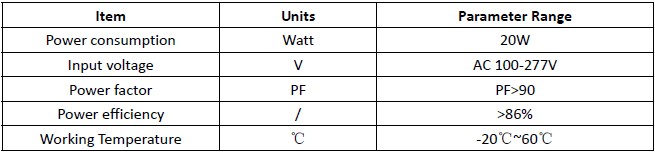

Electrical Specification:

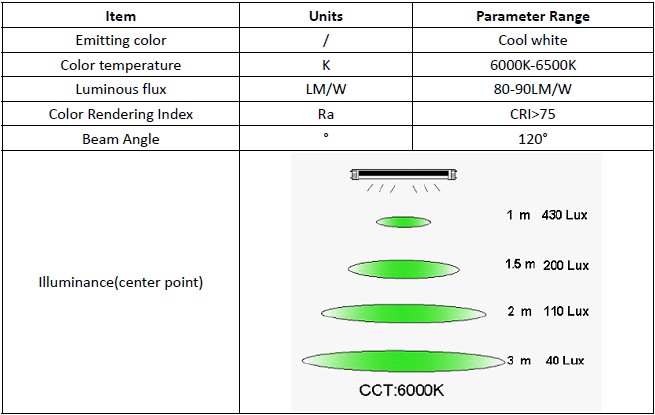

Optical Specification:

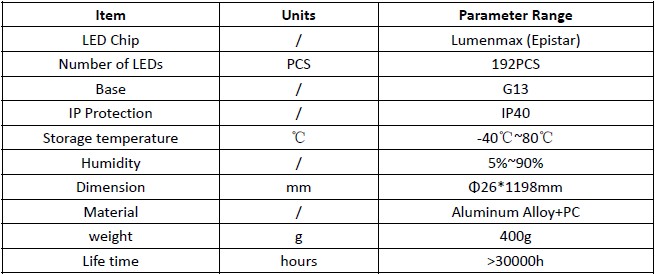

General Specification:

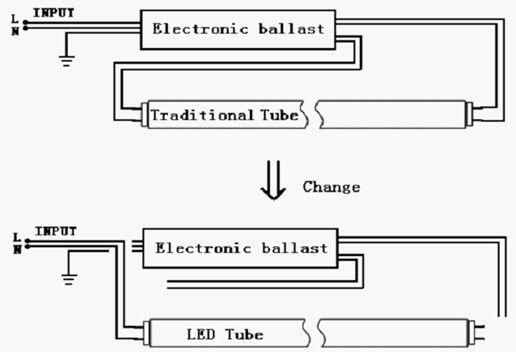

Installation Instruction:
Please attention the installation structure:

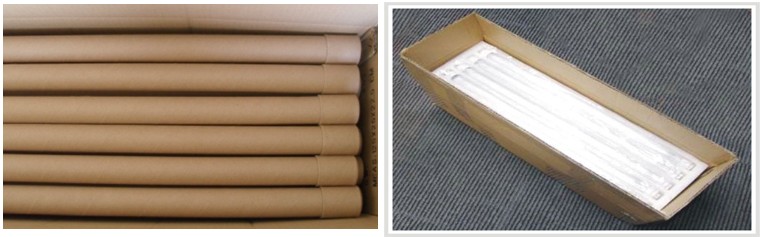

Package and method:
Quantity: 25pcs tubes in one carton.
Packing material: K353K+EPE
Gross weight: 11 Kg/Carton.
Net weight: 10.5Kg/Carton.
Carton size: 1270X320X280 ( mm).

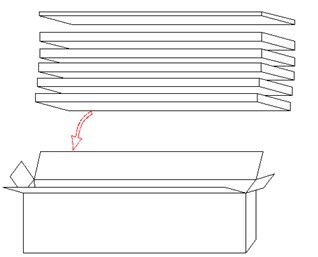

1.Put the T8 tube light in the slot of the EPE, 5 levels in each carton, and to covering the 4mm EPE on the top.

2. Carton Packing ,30pcs/CTN , 5 Layer, 6pcs/Layer,Weight:18kg

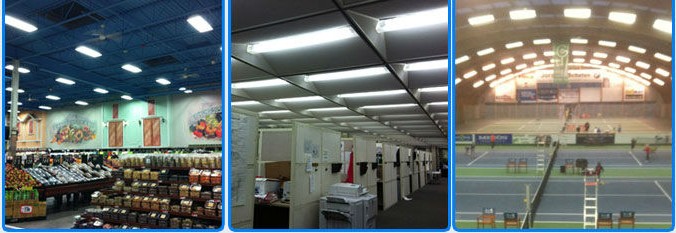

Application:
Widely used in industrial, commercial and government organs, schools,military units, hospitals, aerospace, transportation and other areas of indoor and outdoor lighting and energy saving reconstruction.
