Home > Product > LED Commercial Downlights > Australia MR16 GU10 Dimmable 8W LED Spotlight

Australia designed sharp COB 8W LED Spotlight
1) Base: GU10/MR16
2) Power:7/8W with Sharp Zenigata LED
3) Silver and black housing are available
4) Warranty:3 years
5) Dimmable is available for GU10 and MR16,
6) CE RoHS SAA





Features:
Using reflective glass condenser, achieves proper angle and optimum light efficiency;
Imported LED Chips, high efficiency,low consumption and stable;
Tensile aluminum housing, exquisite workmanship, good heat dissipation;
Cover with high-grade plastic, elegant, easy removal without damaging the surface;
Built-in PWM constant current driver, suitable for mainstream trailing edge electronic transformers and trailing edge
dimmers, dimming without stroboflash;
Special design, long lifespan 50000hours, less heat, high reliability;
Professional industrial design and optical design, creating a high-end elegant optical environment;
70-85% Energy saving comparing with the traditional light sources;
No mercury, green, no radiation, no UV, no stroboflash, quick start,eyes protection;
Match with 98% trailing edge electronic transformers and trailing edge dimmers,AC/DC12V are compatible.
Technical Parameter:

Optical Parameters

Light Source

Sharp Zenigata COB(8W)

Center beam intensityΦ(cd)

> 1500cd

LumenΦ(LM)

600-680LM

Efficiency(LM/W)

72-83LM/W

Color temperature(K)

2750-3250K
3750-4250K
4750-5250K

CRI

≥80Ra

LED quantity(COB)

1Pc

Beam angle

30°

Lumens depreciation rate (%)

<7% decay of 8000hrs

Lifespan (Hrs)

≥30000Hrs

Electrical parameters

Input voltage(V)

AC11.5V(match with trailing)

Work frequency(Hz)

270-330KHz

Input current(mA)

600-700mA

Power consumption(with driver)

8W

Conversion efficiency

≥76.7%

Power Factor (PF)

≥95%

Pressure test

500Vac/5s

Construction parameters

Material

AL6063

Dimensionmm

Φ50

Installation

Embed

N.W.(g)

99

G.W.(g)

105

Electric

shock

Waterproof

IP20

Other parameters

Working temperature & humidity

-20℃ 50℃10% 90% R.H.

Storage temperature & humidity

-40℃ 85℃0% 95% R.H.

Packing

Printed box or PVC box

Safe certification

CE/FCC

Environmental certification

ROHS

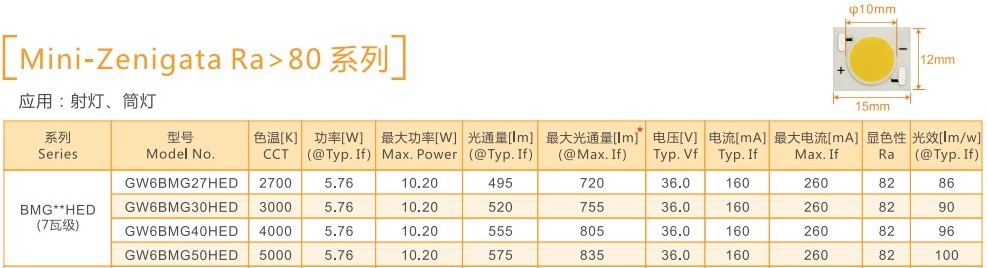

LEDs Parameter:

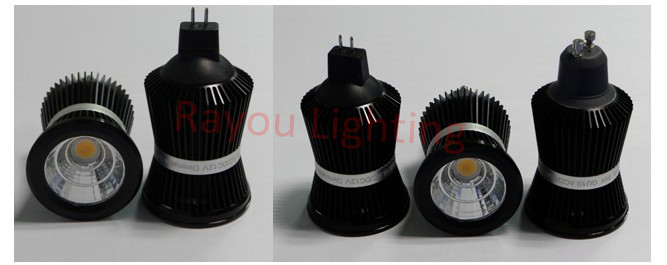

Product Photo:

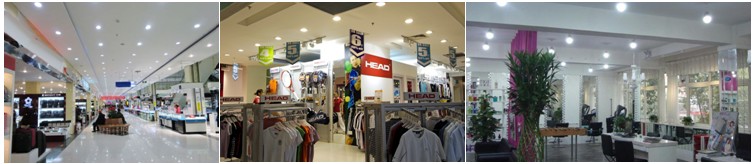

Application:
