Home > Product > LED Panel Light > 600x600mm > 600x600mm LED Panel Light

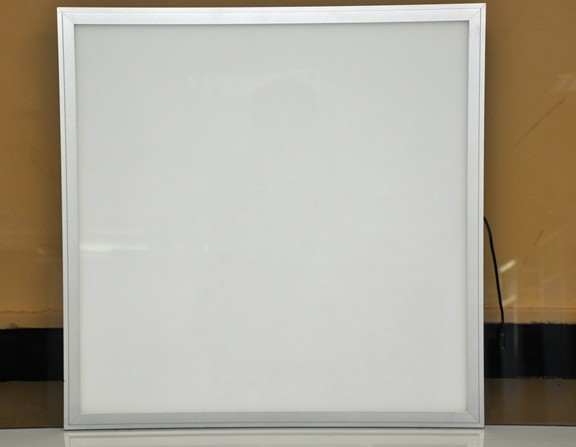

LED Panel light is perfect option to replace all the ceiling lights. It is very easy for installation. Using SMD 3528 LEDs, which has over 50000 hours life span, 3-5 times as traditional ceiling light.this 23W 600x600mm LED panel light is a quite small one, using high brightness SMD3528 LEDs, 273pcs.The output of lumens is about 2400LM max,very bright.

Feature:
LED type:
3528 SMD,3014SMD LEDs are available
Material: white or satin aluminum & PMMA;
power supply & installation accessories included
Thickness:14mm
Size: 600X600X14mm

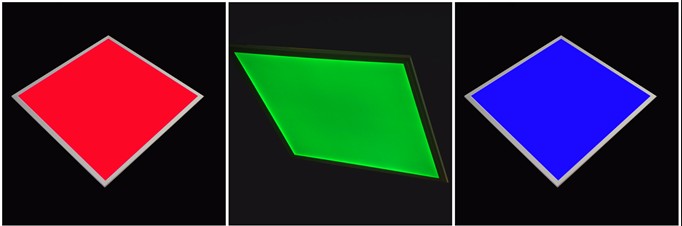

Color: Single color,RGB; (various colors available)
Input Voltage:AC100V~AC240V available
Power: Available 40W (3528 SMD LEDs led panel light ),60W(3014 SMD LEDs led light panel) and 34W(3528 SMD RGB Color LEDs led light panel)
LED Q'ty: 372pcs 3528SMD type and 600pcs 3014SMD and 174pcs 3528SMD RGB type available
Flux: 1800-2400lm;3000-3400lm
Color temperature: 2700K-7000K( Optional, according to your requirement )
Working Temperature: -20 - +50
Storage Temperature: -30 - +60

Lifetime: ≥50,000h
Beam angle: 120°
UL,FCC TUVGS,CE,PSE,RoHS approved,with 3-year warranty
Installation: Suspending,Ceiling Recessed and Mounted types are available.
Other size: 200X200x14mm;300X300x14mm;300X600x14mm;300X1200x14mm;600x1200x14mm;
150X600x14mm;150X1200x14m;200X600x14m;200X1200x14m all are available(dimmable type are available as well)
Certificate: UL,FCC TUVGS,CE,PSE,RoHS approved,with 3-year warranty

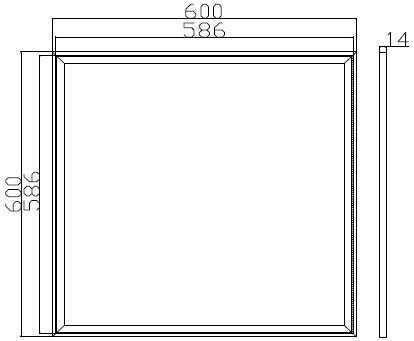

Dimension Drawing:


                                                  Note1. The above unit is mm.2. The tolerance of each dimension is ±1mm.

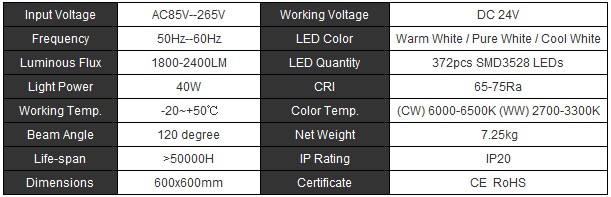

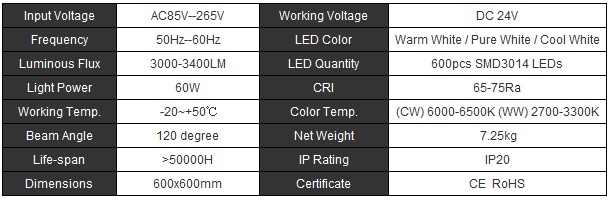

Parameter:


Distribution Curve:

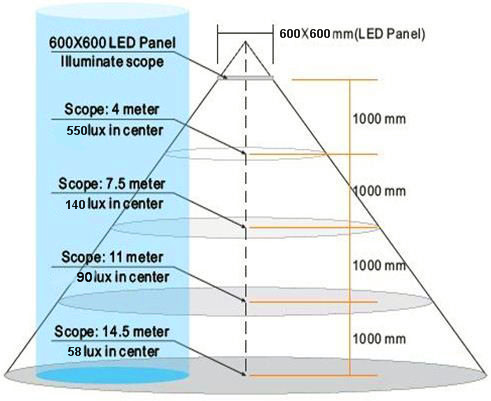

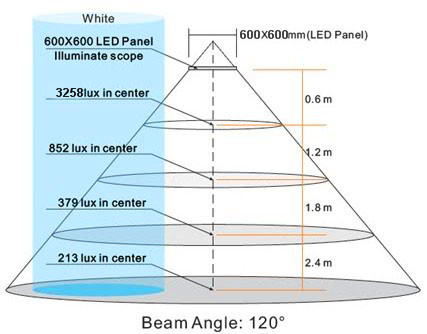

Illumination Intensity Chart:
(40W MODEL)
(60W MODEL)
LED decay parameter:

Installation:
This product is simple and convenient installation.The client may be more reasonable application of the product to fit the scenic spot,follow are three types installation ways for opition.

A:Suspending Installation


Step1:

Step2:

Step3:


B:Ceiling Recessed Installation


C:Mounted Installation

Solution1:
lution Solution1:

Cautions:
1. This product should be installed by trained electricians.
2. Pleas make sure the transformer and the panel light disconnect with the AC power line.
3. When connecting the wiring cables to the luminaries, the brown (or black) wire is the Live wire, connect it with the terminal marked "L". The blue wire is Naughty wire, connect it with the terminal marked "N".
4. Use only the LED driver included, and do not connect the LED panel light to other loads.
5. Please don’t disassemble the LED panel light or the power supply or the drive system to avoid any danger to user or problems to the LED panel light.
6. If there is unauthorized disassembly and maintenance, then the LED panel light and the transformer and the drive system will be out of warranty.
Application:
1.Commercial  lighting, environmentally friendly lighting, warehouse , supermarket  and home illumination. 2.IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel  and other public places. 3.Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range.
