Product

Rayou's Flexible LED Strip can be cut every 3 LEDs.It is 150pcs SMD 5050 LEDs,which are 3 times brighter than normal led strips,can be easily cut with ordinary scissors and can also be bent to meet a wide variety of installation needs.

Features:



5050 SMD 13.5-19.5LM/LED High Quality Flexible LED Strips



1) 30leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)

And connect again by our accessories.

Input voltage: DC12V/0.6-0.9A/7.2W/M, DC24V/0.3-0.6A/7.2W/M

2) Viewing angle: 120°

3) Available PCB color: yellow; white; black(Special)
Product Information:

Item No

CCT

Λd(nm)/Tc(K)

Flux(±5%)

LED Qty

Watt /M

Size(MM)

RL-W_F12600-30T3

White

5000-6500K

2690lm

150pcs/reel

7.2W/M

1000*10/12

RL-WW_F12600-30T3

Warm White

2700-3500K

2027.2lm

RL-B_F12600-30T3

Blue

465-470nm

560.3lm

RL-G_F12600-30T3

Green

520-525nm

1798lm

RL-Y_F12600-30T3

Yellow

585-590nm

732lm

RL-R_F12600-30T3

Red

620-625nm

681lm














1.     The above data is under the test condition of Ta =25 degree, DC 12V, 60Led/Meter RH 85%

2.        Tolerance of measurement of luminous intensity is ±10%

3.        The dominant wavelength  λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

4.        Specifications are subject to change without notice.

5.        θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

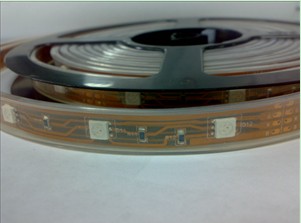

This Flexible Strips can be in waterproof:
A: Waterproof IP65(WF): glue dropped type
B: Waterproof IP67(TF): silicon tube type
C: Waterproof IP68(KF): PVC sleeve type


(A)                                            (B)                                               (C)

All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help strip installation with our accessories

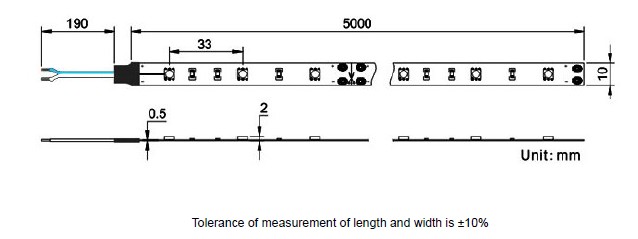

Dimension Drawing:

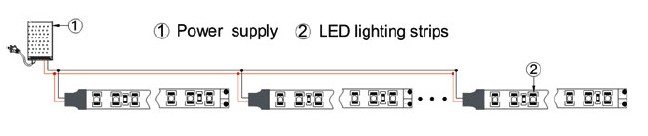

Connect Drawing:

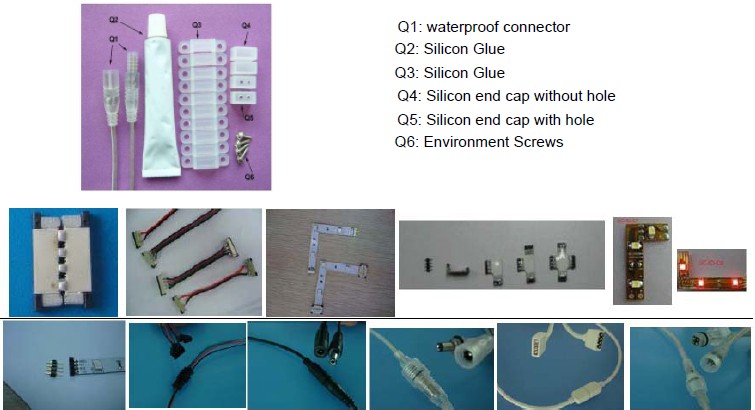

Accessories:

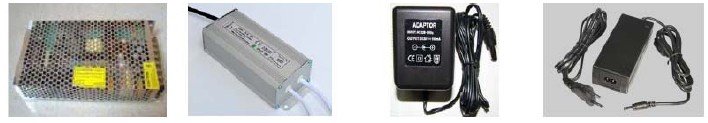

Power Supply:

How to connect non-waterproof strips:

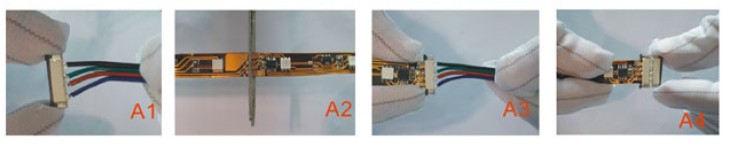

Step A 1: Pull out the black clip carefully.

Step A 2: Cut the high output led strip at the mark “scissors” or by every 3 SMD LED’s (DC 12V).

Step A 3: Put the high output led strip in the space between the clip and connector.

Step A 4: Push the clip in original position

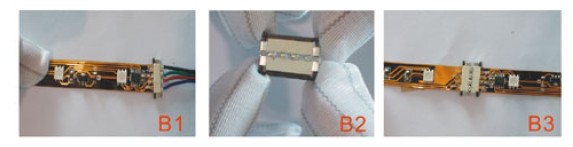

Step B 1: Pull out the black clip of each side carefully.

Step B 2: Pull the high output led strip in the space between the clip and connector at one side.

Step B 3: Put the high output led strip in the space between the clip and connector at the other side, and

push the clip in original position

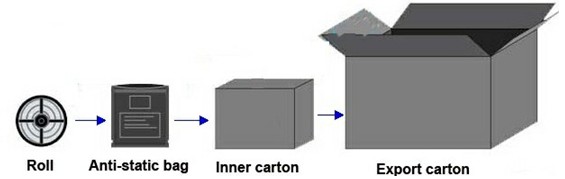

Package:






Installation Precautions:


1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters

2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.

3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly adhere.

4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp objects to touch the product.


Application:

Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc
