Rayou’s Flexible LED strip operates at 12V,can be DC24V as well,because the LED strip can operate at a lower current, which maximizes its estimated lifetime of 50,000 Hrs.


Features:
3528 SMD 4.5-6.5lm/LED High Quality Flexible LED Strips

1)60leds/m 5meters/reel; can be cut by 3 LED per unit (DC12V) or 6LED per unit (24V)
And connect again by our accessories.
Input voltage: DC12V/0.18-0.2A/2.2W/M, DC24V/0.18-0.2A/2.2W/M
2) Viewing angle: 120°
3) Available PCB color: yellow; white; black(Special)

Product Information:
Item No
CCT
Λd(nm)/Tc(K)
Flux(±5%)
LED Qty
Watt / ft.
Size(MM)
RL-W_F12400-60T2
White
5000-6500K
1439lm
300pcs/reel
1.44W/
120mA
1000*8/10
 RL-WW_F12400-60T2
Warm white
2700-3500K
1340lm
RL-B_F12400-60T2
Blue
465-470nm
328.4lm
RL-G_F12400-60T2
Green
520-525nm
1198lm
RL-Y_F12400-60T2
Yellow
585-590nm
482.1lm
RL-R_F12400-60T2
Red
620-625nm
135.2lm









1.     The above data is under the test condition of Ta =25 degree, DC 12V, 60Led/Meter RH 85%
2.        Tolerance of measurement of luminous intensity is ±10%
3.        The dominant wavelength  λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
4.        Specifications are subject to change without notice.
5.        θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity
This Flexible Strips can be in waterproof:
A: Waterproof IP65(WF): glue dropped type
B: Waterproof IP67(TF): silicon tube type
C: Waterproof IP68(KF): PVC sleeve type


     (A)                                                    (B)                                                            (C)

All strips come with 3M self adhesive back for easy installation. We recommend that you use hot melt/glass cement or equivalent to be achieve maximum adhesion. Besides in order to be stronger for strips installation and more convenient for our customers, IP67 and IP68 waterproof strips will be fixed with screws and clips. It is easy to help strip installation with our accessories


Dimension Drawing:

                                                                                                           Tolerance of measurement of length and width is ±10%

Connect Drawing:

Accessories:

Power Supply:


How to connect non-waterproof strips:

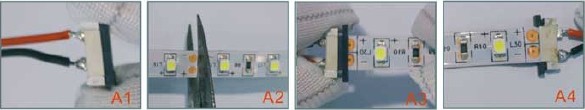

Step A 1: Pull out the black clip carefully.
Step A 2: Cut the high output led strip at the mark “scissors” or by every 3 SMD LED’s (DC 12V).
Step A 3: Put the high output led strip in the space between the clip and connector.
Step A 4: Push the clip in original position.

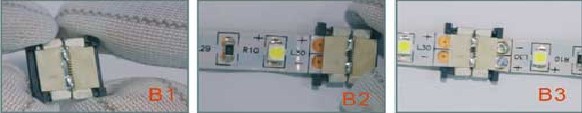

Step B 1: Pull out the black clip of each side carefully.
Step B 2: Pull the high output led strip in the space between the clip and connector at one side.
Step B 3: Put the high output led strip in the space between the clip and connector at the other side, and
push the clip in original position.

Package:



Installation Precautions:

1). Connect the lines correctly as shown in the diagram above. It is best to connect 10 meters
2). the working parameters can not over the rate in the limitation in the Absolute Maxing Rating form.
3). the surface upon which the strips are to be installed must be flat and clean, otherwise the LED strip will not properly   adhere.
4). Always protect against electrostatic discharge during installation and use of the strip. Never allow a knife or other sharp objects to touch the product.

Application:
Cove lighting,under cabinet lighting,architectural lighting,automatic lighting,RV lighting,backlights,edging lighting.etc.
